English–9
3 609 929 A44 • (05.09) T
4 MOUNTING
Operating and Storage Environment
The device is suitable exclusively for op-
eration at enclosed work sites. For trou-
ble-free operation of the device, the al-
lowed ambient temperature should lie
between –5 °C and +50 °C (23 °F and
122 °F) at an allowed relative humidity of between 20
and 95 %, free of dew.

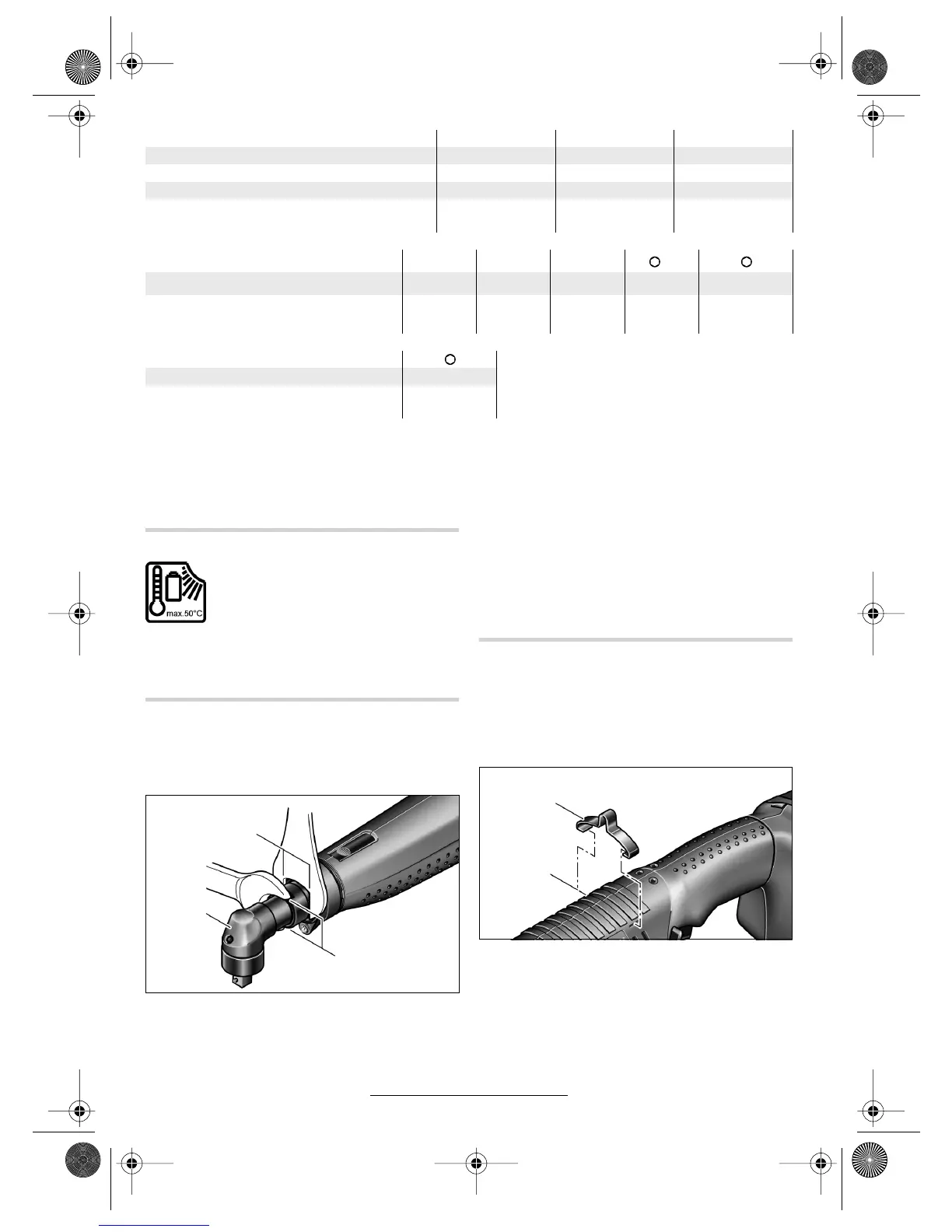

Mounting of a Screw Head
Hold the machine with the open-ended spanner 6 on
the spanner flats 5 of the angled head flange.
Never clamp the machine on the housing shells.
Place the angled drive head 3 in the desired position
on the flange and screw on with the open-ended
spanner 4 on the spanner flats 16 of the sleeve nut.
Hold the angled head flange with the open-ended
spanner 6 to prevent turning.
Suspension Device
With the hanging hoop 8, the machine can be at-
tached to a suspension device.
Place the hanging hoop 8 included as an accessory
on the machine and allow it to engage in the slots 14.
Regularly check the condition of the hanging hoop
and the hook of the suspension device.
Voltage adapter 9.6 V 12.0 V 14.4 V
Article number 0 602 490 ... ... 503 ... 504 ... 505
Voltage V 9.6 12.0 14.4
Cable length m 5 5 5
Weight in accordance with
EPTA-Procedure 01/2003
kg
lbs
0.15
0.33
0.15
0.33
0.15
0.33
Angled drive heads ■ 1/4" ■ 3/8" ■ 3/8" 1/4" QC 1/4"
Article number 0 607 ... ... 453 617 ... 453 620 ... 451 618 ... 453 618 ... 453 630
Weight in accordance with
EPTA-Procedure 01/2003
kg
lbs
0.20
0.44
0.20
0.44
0.30
0.66
0.20
0.44
0.20
0.44
Screw head QC 1/4"
Article number 0 607 ... ... 453 631
Weight in accordance with
EPTA-Procedure 01/2003
kg
lbs
0.20
0.44
Type 0 602 491 647/... 650/... 651/... 652/
... 656/... 669/... 671/... 673/
... 675
3
5
16
6
4
Type 0 602 491 647/... 650/... 651/... 652/
... 656/... 669/... 671/... 673/
... 675
8
14
