Lap Trigger (Timing Beacon)
Setting up a lap trigger for C 60

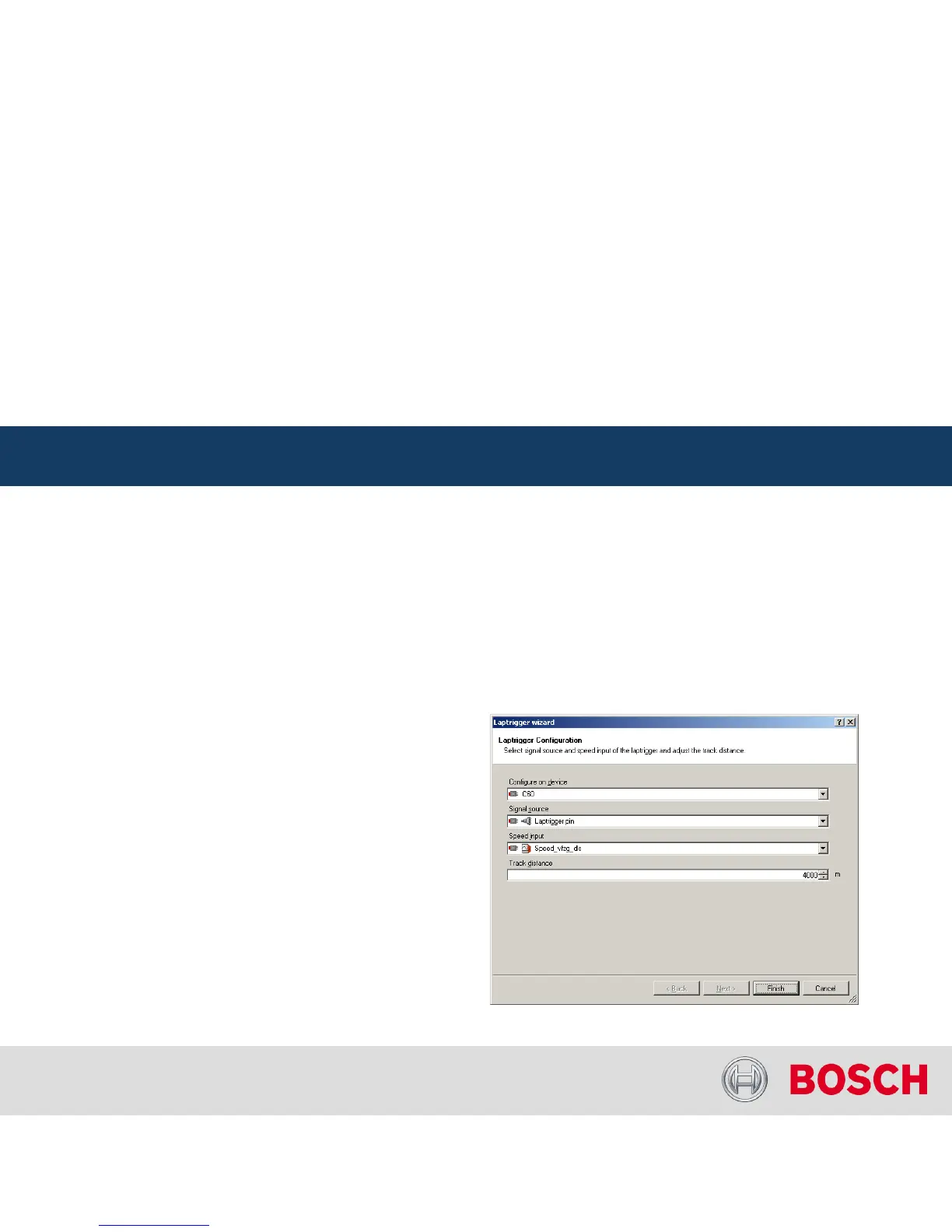

Select the signal source for the trigger signal
In this example, the Rx is connected to the dedicated lap trigger pin of C 60
Select the source for vehicle speed
In this example, the vehicle speed_vfzg_dls’
is calculated from 4 wheel speeds
Enter the track length of your racetrack
In this example 4000m
(Can be changed at any time later)
Press ‘Finish’
to complete the operation
