Lap Trigger System
Internal | BEG/EMS1 CsM | 6/4/2010 | © Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport
Lap Trigger (Timing Beacon)
 Setting up a lap trigger for C 60

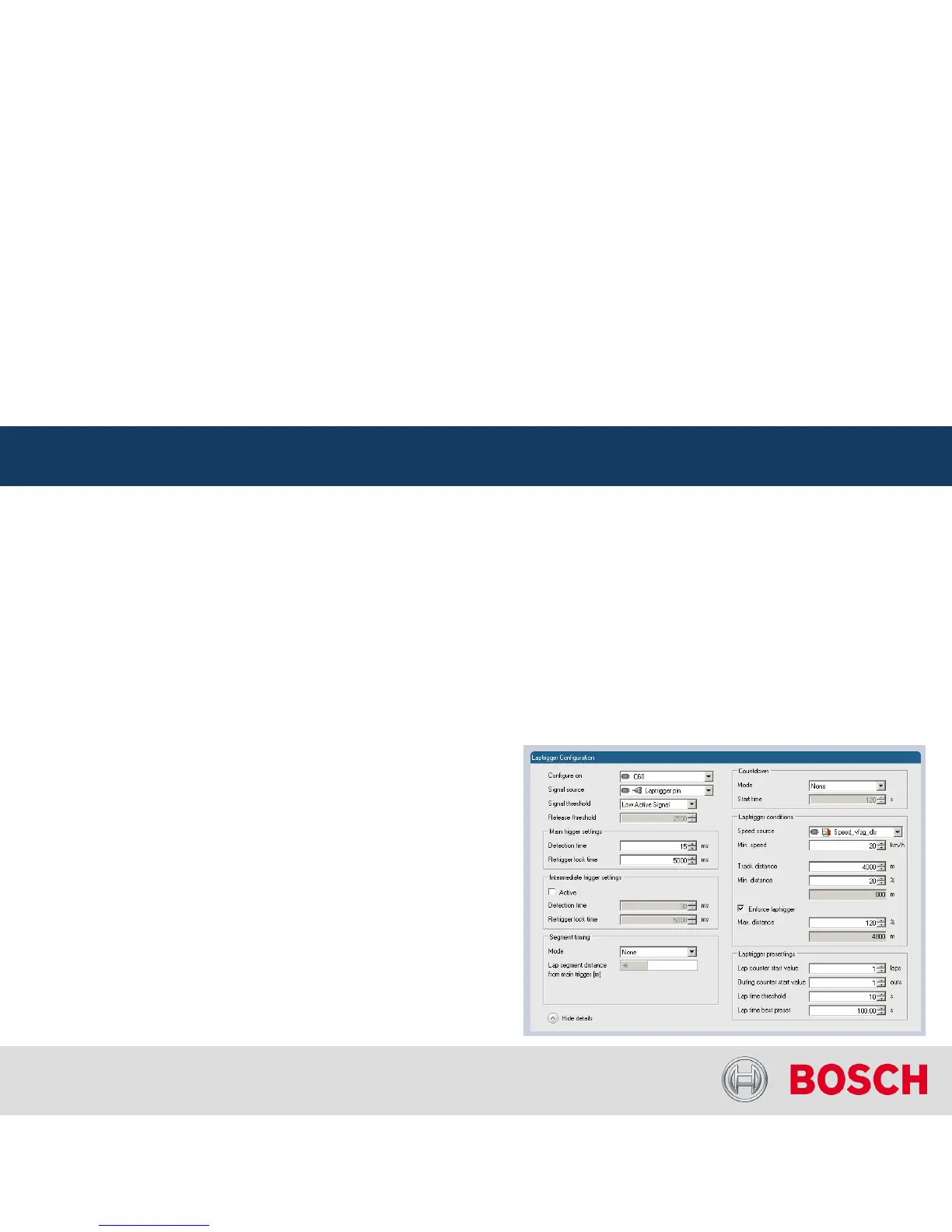

 A pre-configured lap trigger window opens
 Low-active signal on lap trigger pin, min 15ms pulse length
 Bosch recommendation for Bosch trigger:
 15ms pulse length for main trigger
 30ms pulse length for sub trigger
 The trigger is protected against false triggers:
 Min 20km/h for trigger release
 Min 20% of track distance covered
 Trigger is retrigger locked for 5s
 Forced trigger mechanism is enabled
at 120% of track distance
