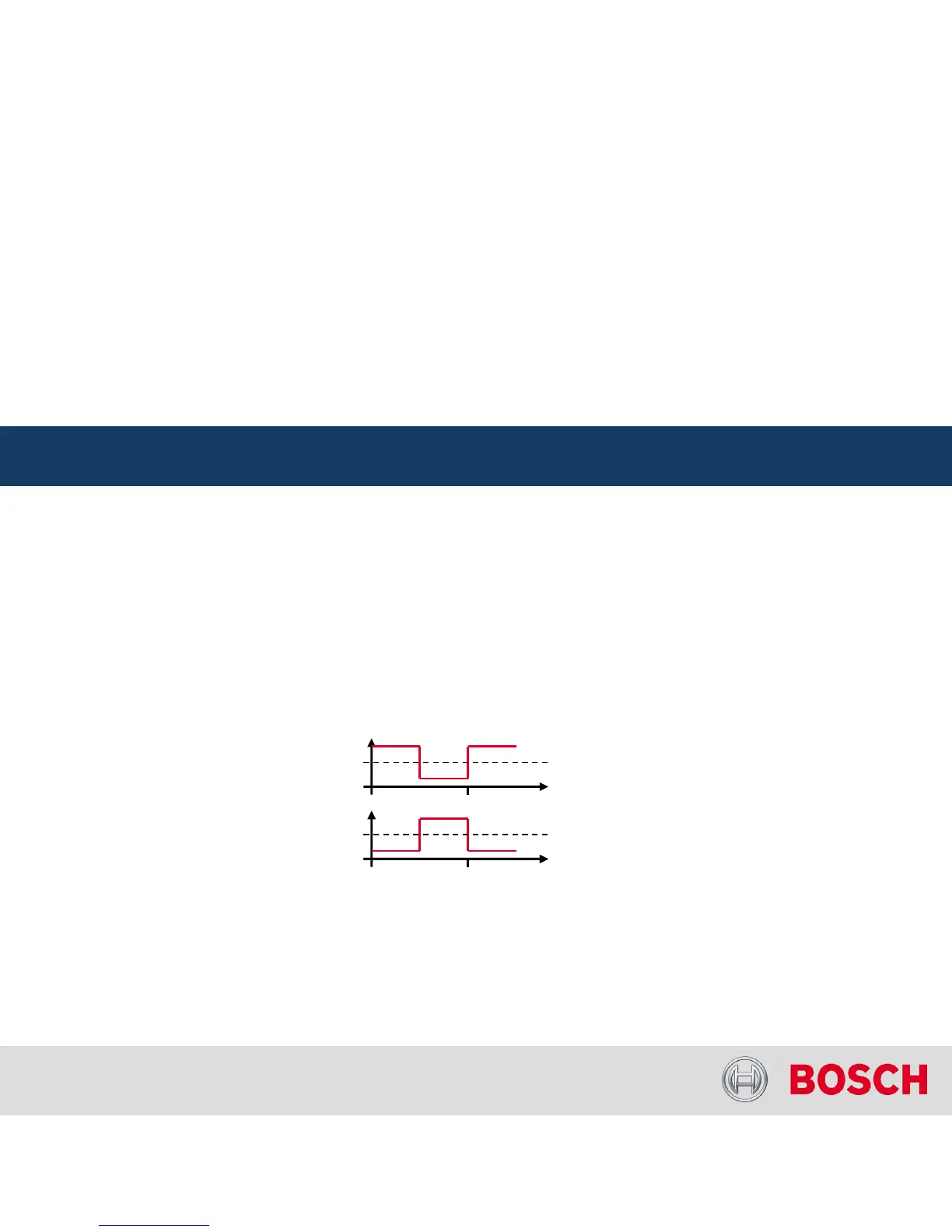

 Electrical Trigger Signal
 In C 60 all sources of measurement channels can be used as trigger signal
 Analog input
 Digital input
 CAN input
 Signal (measurement channel) properties:
 Low active signal
 High active signal
 Two types of trigger signal
 Main trigger (end-of-lap @ start/finish line)
 Sub-trigger (segment time, optional)
 Bosch standard:
 Main trigger >20ms, <40ms, low active
 Sub trigger >40ms, low active
Lap Trigger System
Internal | BEG/EMS1 CsM | 6/4/2010 | © Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport
Lap Trigger (Timing Beacon)
Threshold
Threshold
Time
Time
