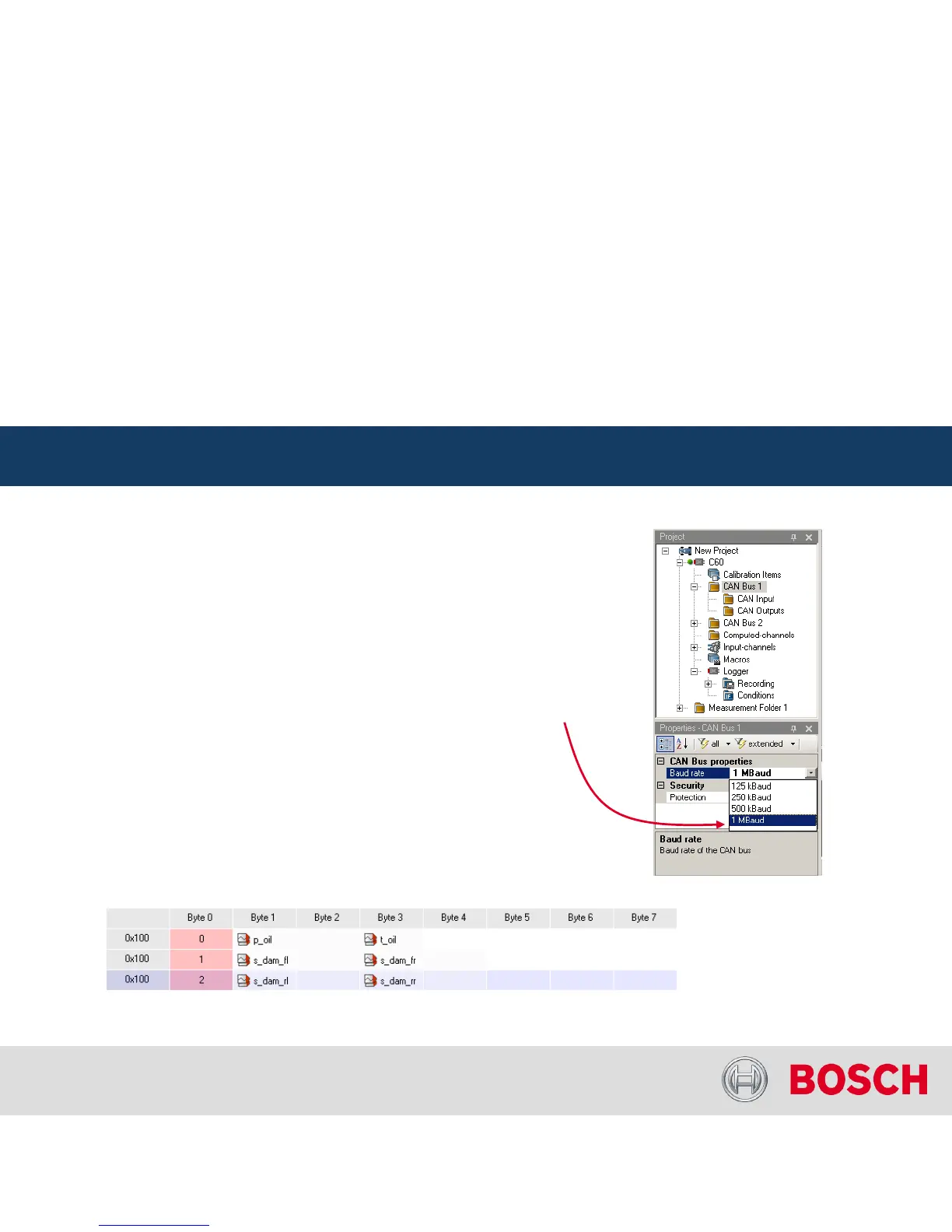

CAN Bus Configuration
Internal | BEG/EMS1 CsM | 6/4/2010 | © Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport
CAN Bus Trivia
 CAN Message
 11Bit (standard) or 29 Bit (extended) identifier
 Up to 8 bytes of data payload
 CAN Bus
 Needs termination resistors (120Ohm) in wiring harness
 All devices connected to the bus must use identical data rate
 Configuration of C 60 bus data rate in ‘Properties’ menu
 Row Counter Concept
 Re-use (multiplex) of message identifiers
 One byte of message contains row counter
 7 bytes payload remaining
 Position of row counter is configurable
Message
Id
Row
Counter
Payload Area
