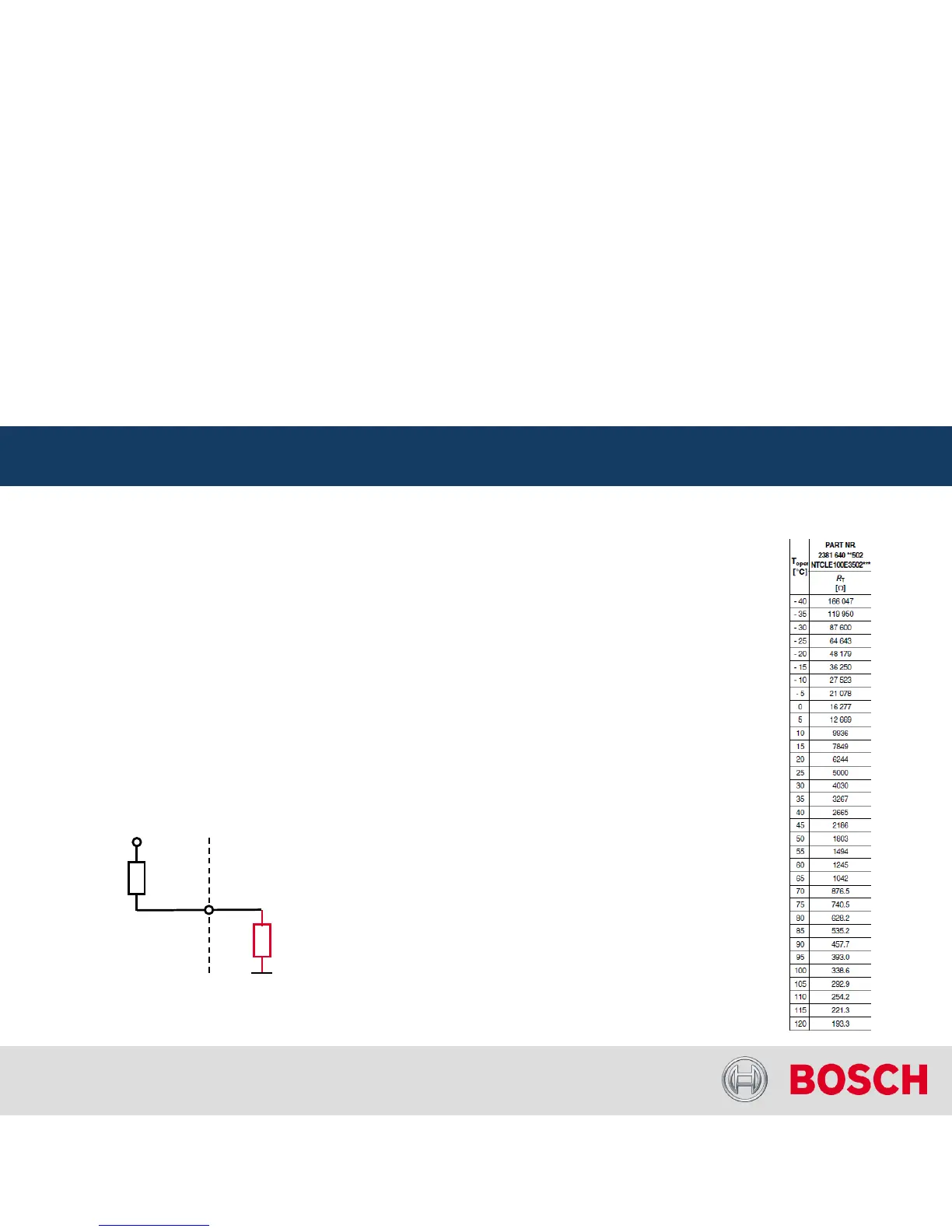

 Configuring a generic nonlinear sensor
 Example: Thermistor 5kOhm
 From sensor data sheet: resistance values over temperature
 The sensor has a nonlinear behavior
 Use characteristic curve for linearization
 Input voltage is the ratio between pull-up resistor and thermistor
 Drag the ‘Characteristic Curve’ analog signal source from the Toolbox
and drop it on the desired analog input channel in the C 60 project tree
 A ‘Characteristic Curve Wizard’ opens
C 60 Analog and Frequency Inputs
Internal | BEG/EMS1 CsM | 6/4/2010 | © Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport
Configuring Inputs – Generic Nonlinear Sensor
+5V
3kOhm
Pull-up
Pin
Thermistor
