Mounting with M8 screws
Fasten the gateway at a suitable location using two M8 screws.
For a material thickness of the mounting plate of 1 mm ... 5 mm, the supplied screws can be used. Alternative screws must
be used for material thicknesses of more than 5 mm.
Use the spring washers supplied to secure the screws. Screw the screws from below into the threads provided on the gateway

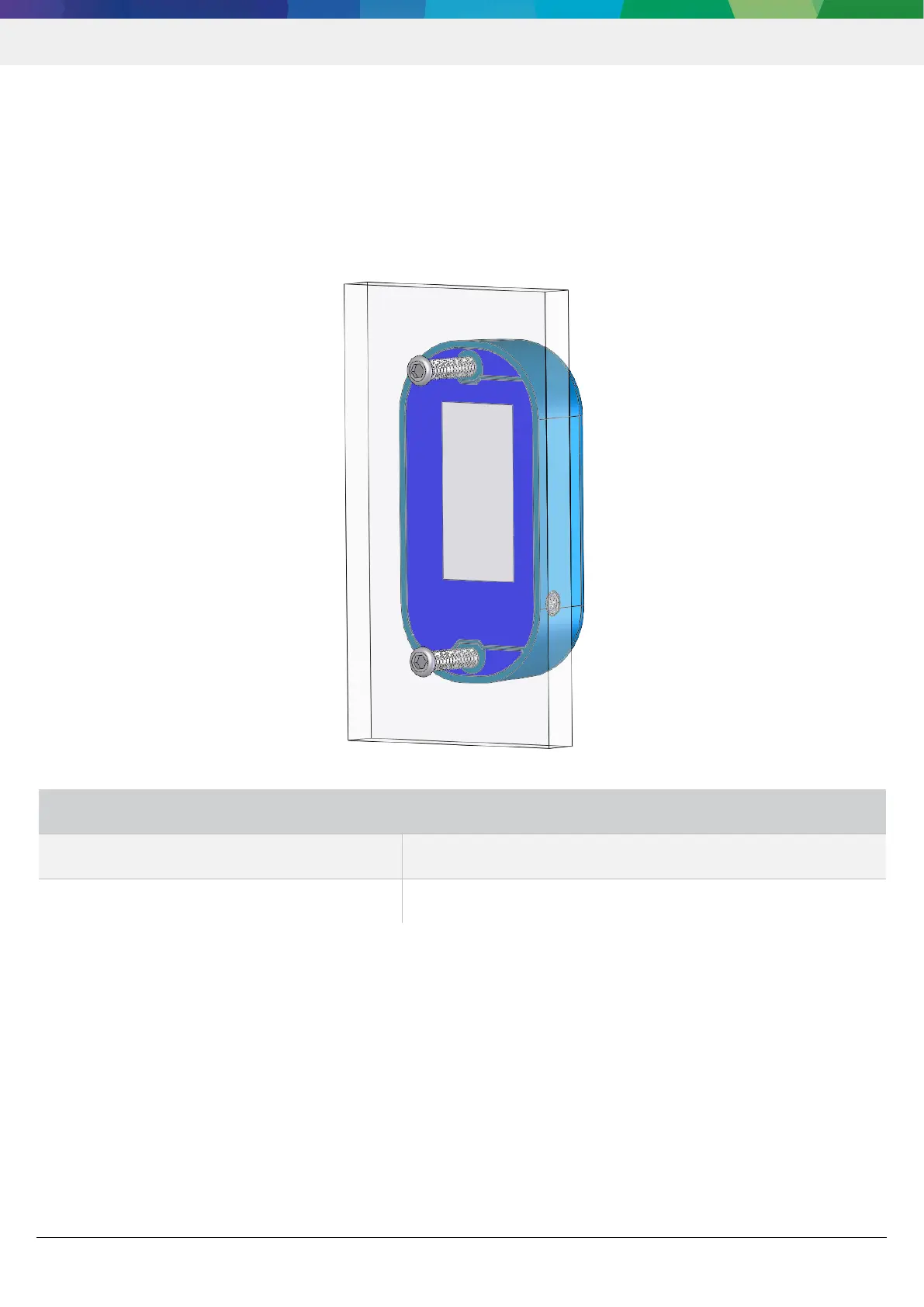

housing. See the following picture:
Mounting parameters:
Screw tightening torque 5 Nm to 7 Nm
Screw-in depth in the Gateways housing min. 10 mm to max. 14 mm
