Operation of the control unit
Control 8311/8313 – 6720859790 (2020/02)
12

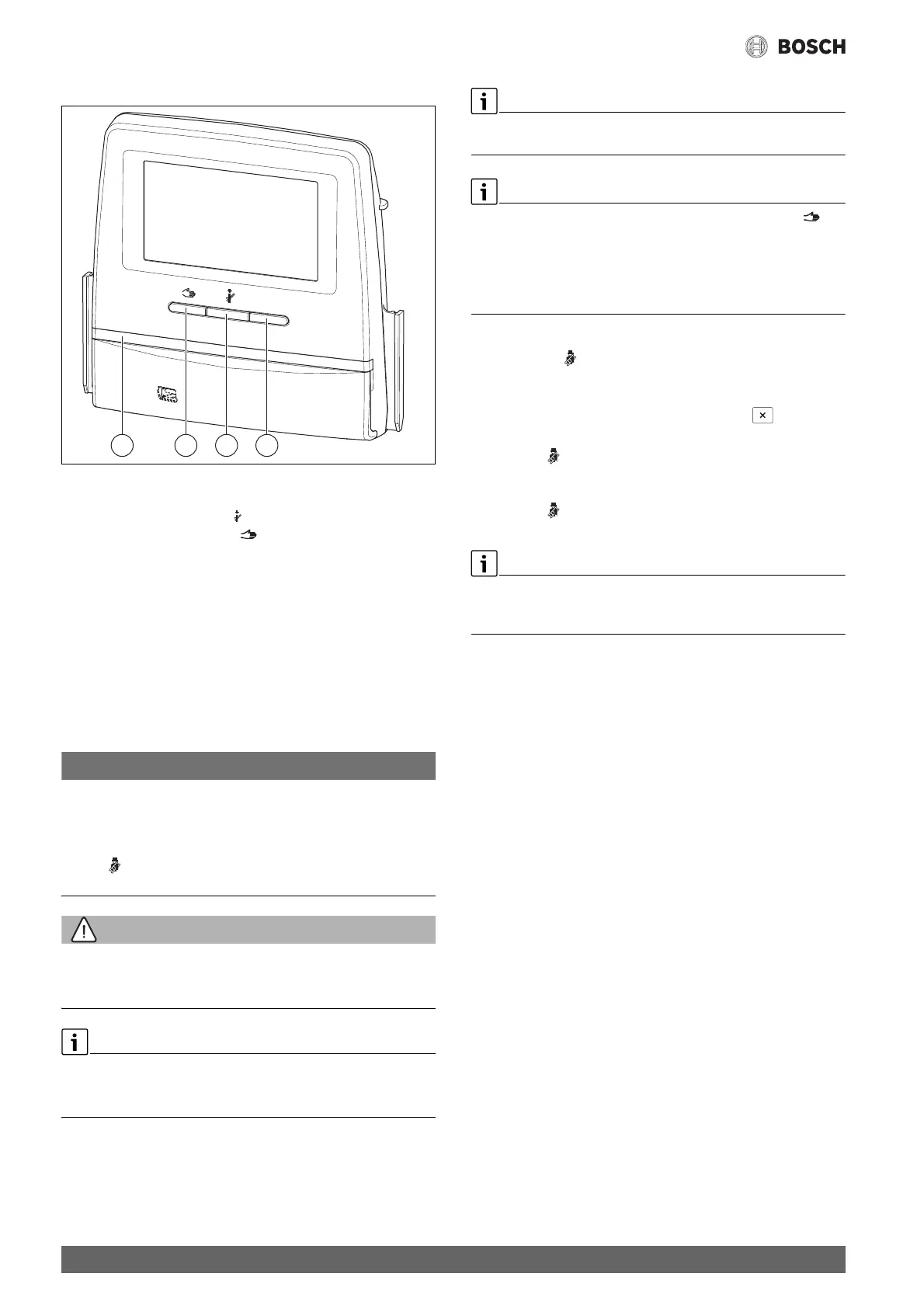

3.7 Function keys of the user interface
Fig. 14 Function keys
[1] Reset button
[2] Chimney sweep button
[3] Manual operation button
[4] LED status display
3.7.1 Reset button
Press the button to unlock the locking fault and reset the functions
(e.g. following triggering of the high limit safety cut-out or resetting of
the SAFe).
To unlock a function:
Press and hold the key for 2 seconds.
Only for Control 8311: when using separate burners, the burner control
unit cannot be reset via the key.
3.7.2 Chimney sweep button (flue gas test)
NOTICE:
System damage due to incorrect use and deactivated functions!
A supply of heat from the heating system cannot be ensured for the
duration of the flue gas test. The functions are disconnected from the
control so that removal of heat cannot be ensured.
The key and therefore the Flue gas test must only be operated
by qualified persons and the chimney sweep.
WARNING:
Risk of scalding from hot water!
Setting the set temperature > 60 °C creates a risk of scalding.
Do not draw off DHW unmixed.
To perform the flue gas test:
Observe the relevant national requirements for limiting flue losses
from the heating system.
The Flue gas test is switched on if required at the heat source
( Technical documentation of heat source) or at the control unit.
The Flue gas test can only be started by the control unit that is assigned
to the heat source.
If the operating mode Manual or the Manual operation button has
been set, the flue gas test has priority. Once the flue gas test is complete,
the control unit switches back to manual operation.
If the heat source is integrated into a cascade, it will not be available for
the cascade during the flue gas test. A different heat source goes into
operation, depending on the dependencies and settings of the cascade.
To ensure acceptance of heat in the heating system:
Briefly press key.
A message window opens to indicate the test is starting.
To cancel the operation:
Tap in the message window at the top on the right .
To continue with the Flue gas test:
Press the key until the window showing the settings used to
perform the test opens.
-or-
Press the key and hold it down until the window showing the
settings used to perform the test opens.
The LED status display turns yellow ( Fig. 3, [4], page 7). The chimney
sweep and warning triangle symbols appear in the header of the system
overview and in the header of the heat source.
•The Flue gas test is performed using the values specified in Settings
(minimum/maximum boiler temperature, minimum/maximum
performance).
The maximum boiler temperature cannot be changed in the Flue gas
test.
The heat source emits heat, providing the flue gas test is not aborted
or automatically stopped, until the maximum boiler temperature set
is reached.
If a preset parameter (e.g. minimum boiler output) is exceeded or
undercut when making the adjustment, a warning message appears
and must be confirmed. The parameter remains at the previous
value.
Single-stage heat source
▶Tap Save.
The Flue gas test starts immediately.
Two-stage heat source
When using heat sources with two stages, the burner stage used to
perform the Flue gas test can be selected. The burner stage can be
modified during the flue gas test.
Tap burner stage 1 or 2.
▶Tap Save.
The Flue gas test starts immediately. In the first burner stage, the heat
source runs until it is stopped manually or automatically. If the second
burner stage is selected, the heat source moves to the second burner
stage following a start-up time and runs until it is stopped manually or
automatically.
reset
1234
0010007084-001
reset
reset
reset
reset
