Operation of the control unit
Control 8311/8313 – 6720859790 (2020/02)
8
Heat production
If several heat sources are available, one heat source can be selected in
the display of the Heat production. The current parameters for the
available components are displayed by the selected heat source.

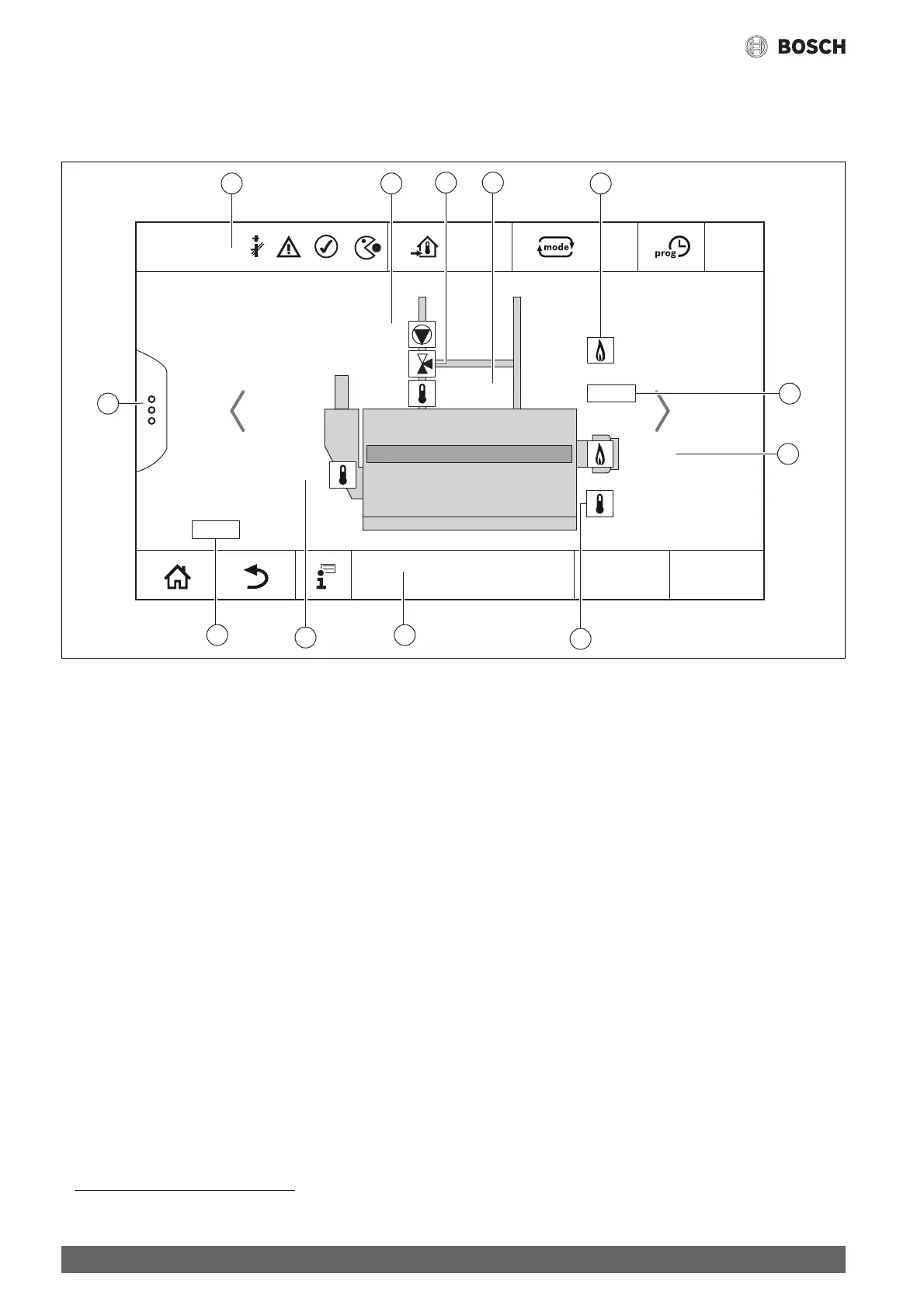

Fig. 4 Display Heat production
[1] Header with status displays of heat source
[2] Boiler circulation pump with status display, performance
rating in %
[3] Mixing valve with status display, position indication
1)
[4] Return temperature
1)
[5] Fuel
[6] Type of heat source
[7] Burner with status display, burner output
1)
[8] Heat source with status display, boiler temperature
1)
[9] Footer with navigation symbols
[10] Flue gas temperature
[11] Information on heat transfer (situation-dependent)
[12] Advanced functions of the heat source
0010029510-001
12:00
21
10
11 9
5
8
7
6
12
[0 %]
0 % [0 %]
0 % [0 %]
*** °C [0 %]
*** °C
*** °C [0 %]
3 4
1) Set value and actual value (set value in parentheses)
To Next Page
