Operation of the control unit
Control 8311/8313 – 6720859790 (2020/02)
6
3 Operation of the control unit
3.1 Overview of the control unit and the control elements

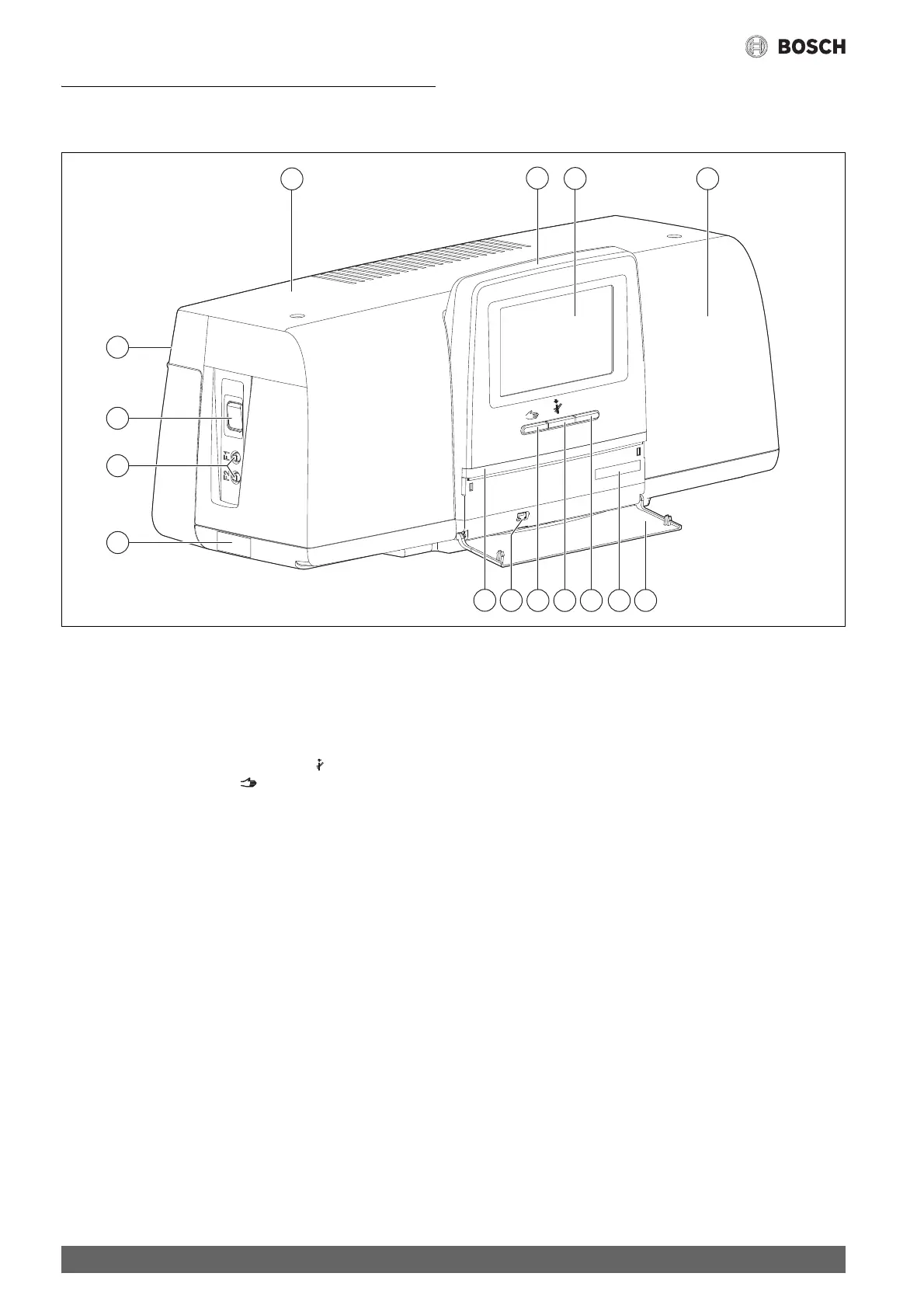

Fig. 1 Overview of the control unit and the control elements
[1] Housing lid/cover
[2] User interface
[3] Touch screen
[4] Front cover
[5] Activation Code (registration code)
[6] Reset button (e.g. high limit safety cut-out, SAFe)
[7] Chimney sweep button (Flue gas test)
[8] Manual operation button
[9] USB connection (e.g. for service purposes)
[10] LED status display
[11] Type plate
[12] F1-, F2 circuit breaker
[13] ON/OFF switch
[14] Back panel
0010027290-001
reset
3
6 59 78
10
12
11
1
2
1
4
13
14
