Long-range beam smoke detectors Wiring | en 19
Bosch Security Systems, Inc. Installation manual 2017.03 | 7.0 | F.01U.068.899

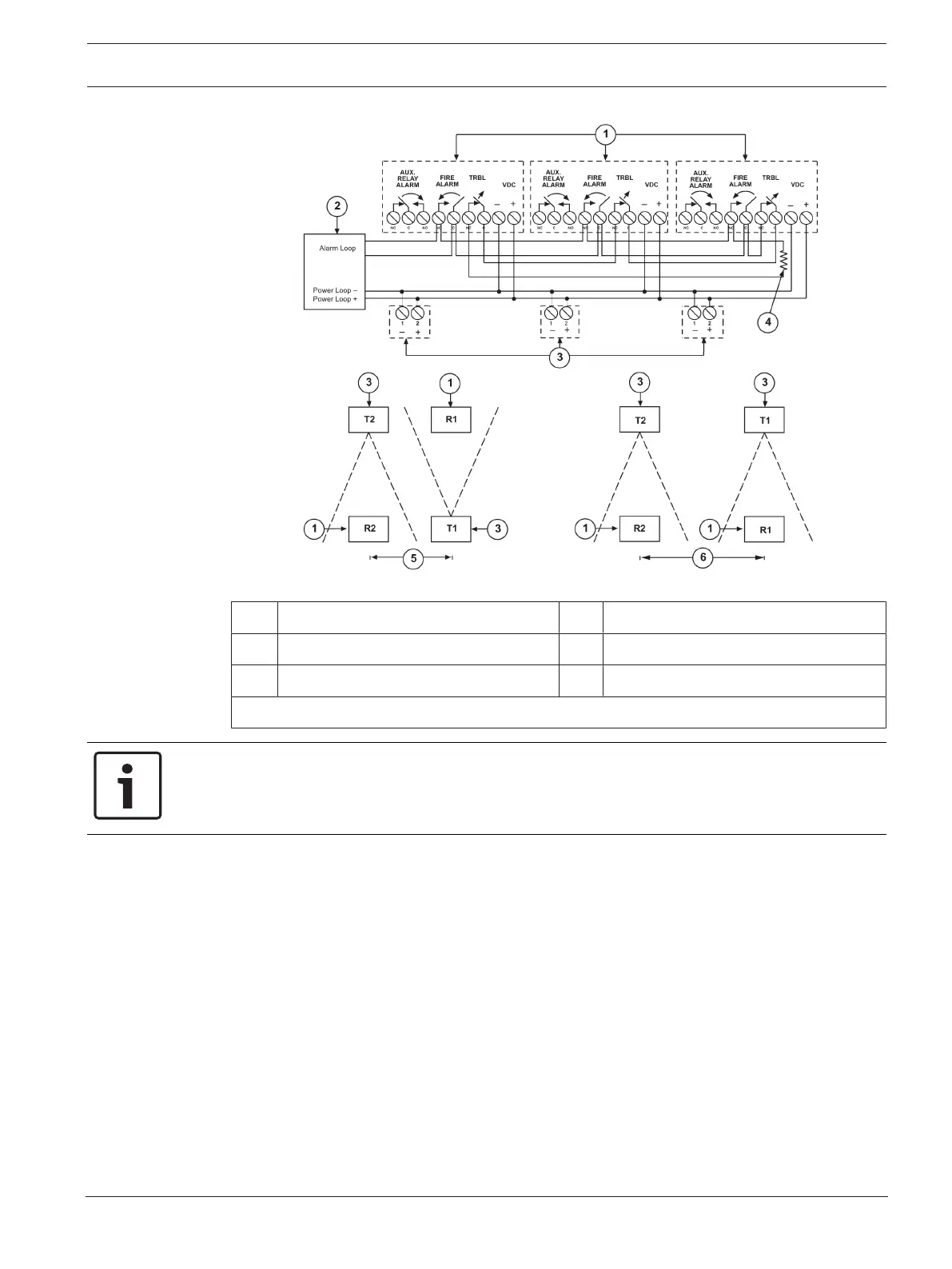

Figure5.4: Transmitter and Receiver Placement
1 Receiver 4 EOL resistor
2 FACP 5 Minimum spacing = 1/10 x distance
3 Transmitter 6 Minimum spacing = 1/5 x distance
* maximum spacing between adjacent systems is 60ft (16.3m)
Notice!
When two or more adjacent detectors are installed in the same area, alternate the transmitter
and receiver locations. If not alternated, ensure the spacing between the detectors is 1/5th
the distance from the transmitter to the receiver.
