Bosch GTA47W - Page 4

S
L
P
W
M
V
T
Q
UJ K
R
O
N
ACTUAL SIZE
ACTUAL SIZE

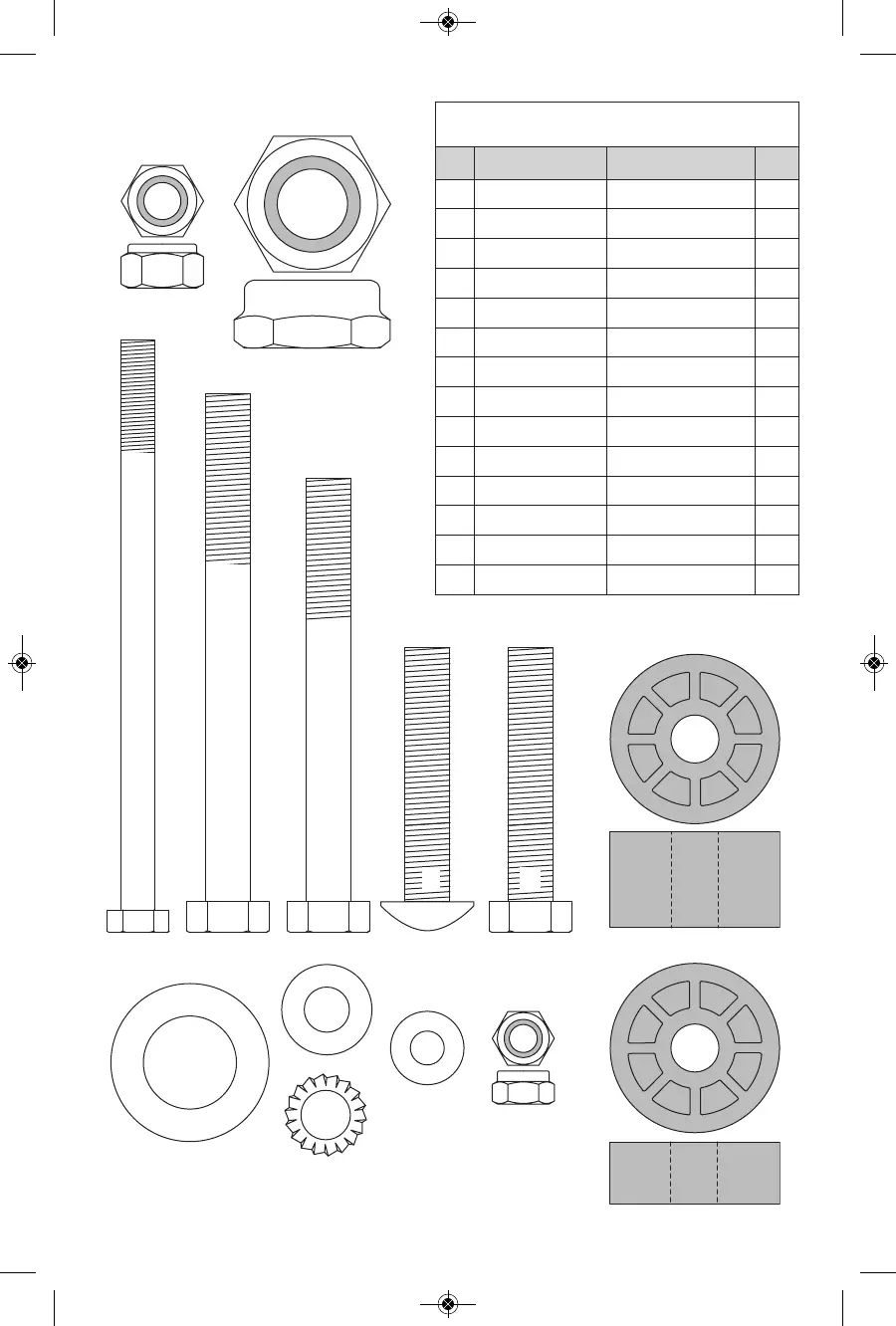

GTA47W Stand Assembly Hardware
(
packaged in one bag)
Item Part Description Specs. Qty.
J Hex head bolt M8 x 90mm 4
K Hex head bolt M8 x 75mm 4
L Flat washer ⌀8 x ⌀16 x 1.5mm 18
M Lock nut M8 12
N Phillips head screw M8 x 45mm 4
O Hex head bolt M8 x 45mm 2
P Star washer M8 2
Q Large spacer ⌀30 x 17mm 2
R Small spacer ⌀30 x 11mm 4
S Flat washer ⌀16.5 x ⌀28 x 2mm 2
T Lock nut M16 2
U Hex head bolt M6 x 100mm 4
V Lock nut M6 4
W Flat washer ⌀6 x ⌀13 x 1.5mm 8
-4-
