You have purchased a Bosch Table Saw
Stand GTA47W. Designed for job site
use. This unit sets up and folds quickly,
and is easily loaded or unloaded by one
person into a truck.
BEFORE YOU ASSEMBLE THIS TABLE
SAW STAND:
Sort out and account for all parts to
make sure that you have all necessary
materials to assemble your stand. Do
not discard packing material until all
parts are accounted for.
TOOLS REQUIRED:
- Phillips screwdriver,
- Two (2) 10 mm open end wrenches,
- Two (2) 13 mm open end wrenches,
- One (1) 24mm (or 15/16”) open end
wrench;
or you can use two (2) adjustable
wrenches (one should have at least 1”
capacity).
Pre-Assembly
-3-

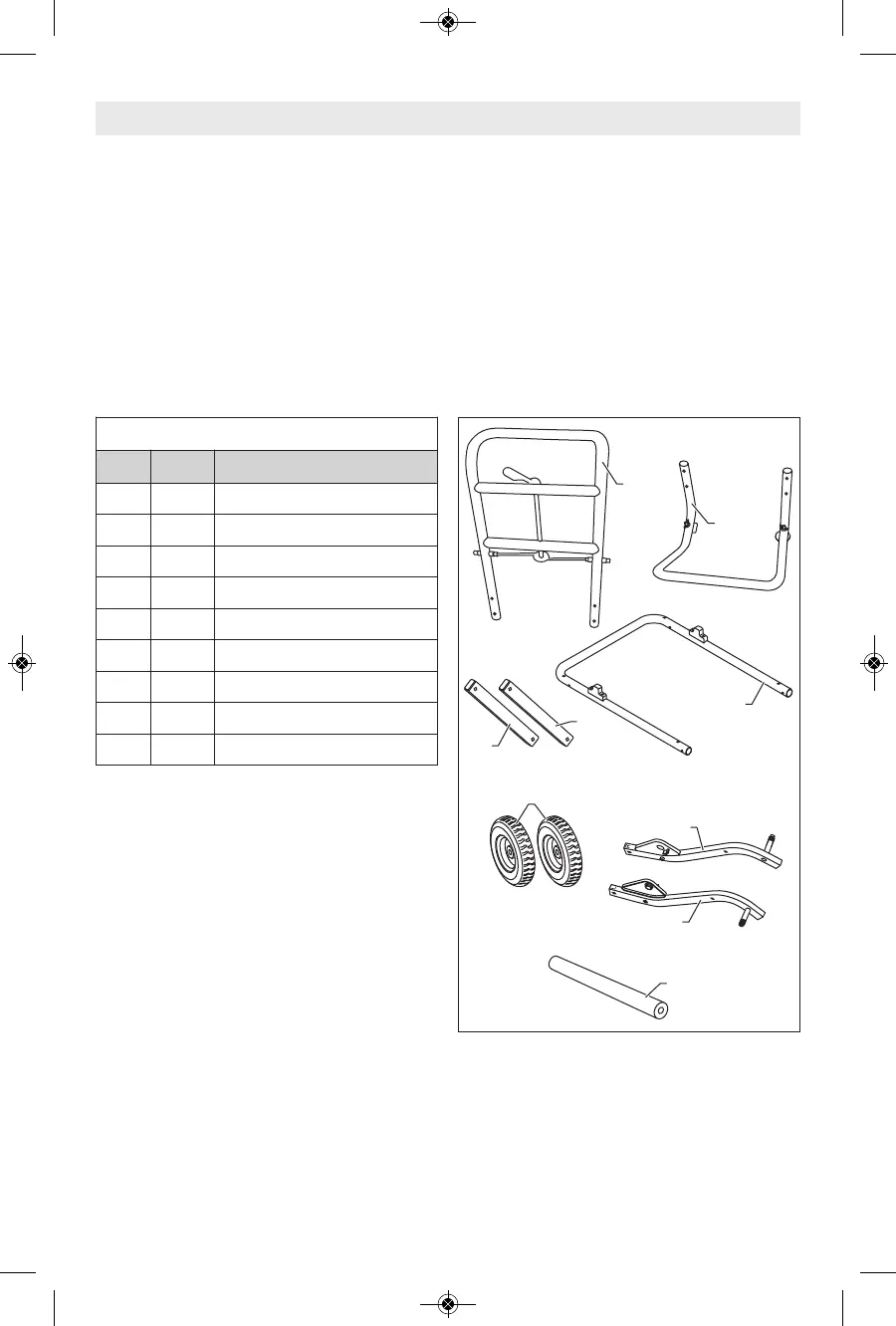

Table Saw Stand Parts
Item Qty. Part Description
A 1 Upper Cross Bar
B 1 Lower Cross Bar
C 1 Kick Bar
D 1 Right Linkage Bar (“R”)
E 1 Left Linkage Bar (“L”)
F 1 Top Tube Bar
G 1 Right Wheel Bar (“R”)
H 1 Left Wheel Bar (“L”)
I 2 Wheel
