HPC Board Replacement and Installation | 29Heat Pump Controller
8733819577 (2019/02)Heat Pump Controller Subject to change without prior notice
15. Click Configure Unit Settings. The Configure
Unit Settings screen displays. See the list of
unit settings in the figure below.

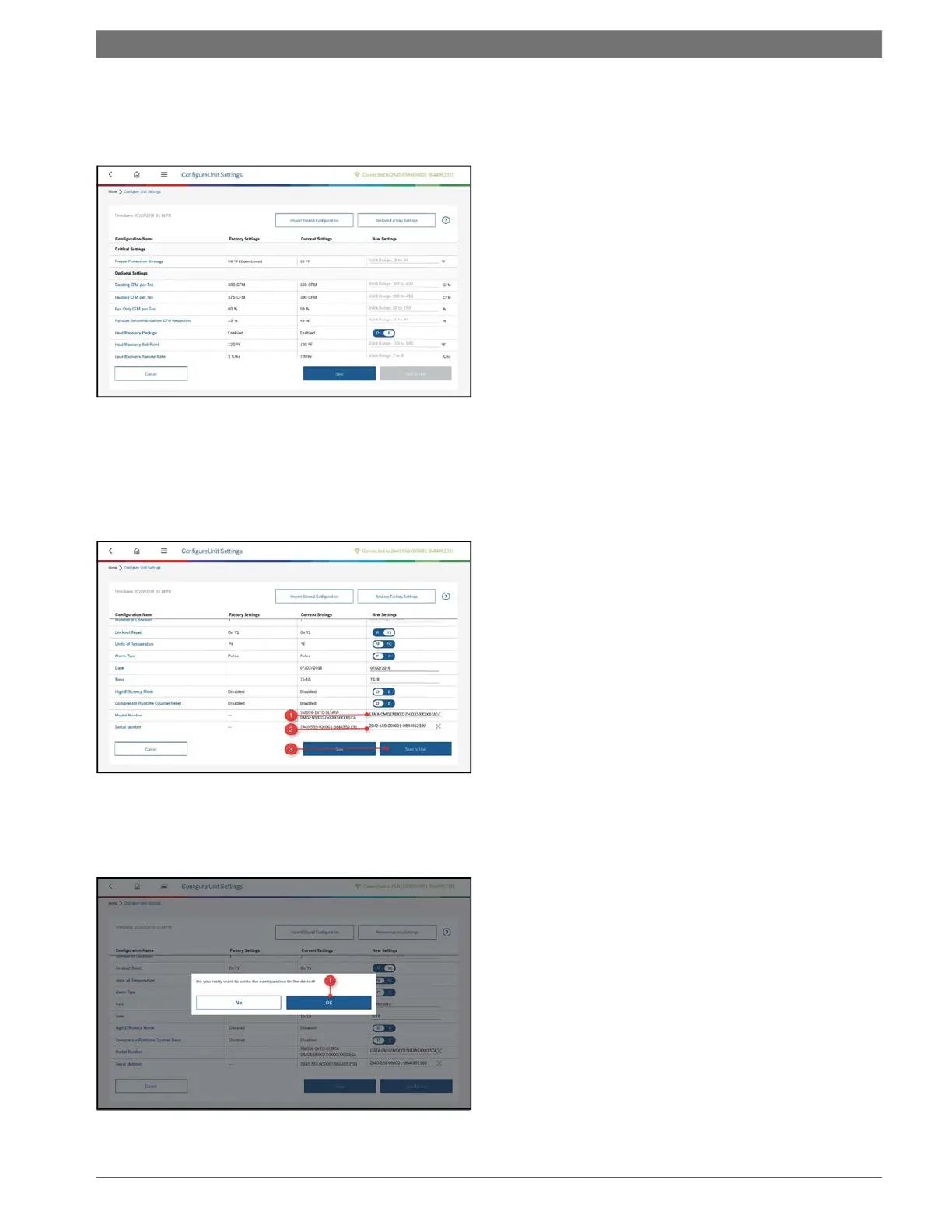

Fig. 33 Configure Unit Settings Screen
16. Enter the appropriate settings for the device.
Pay close attention to make sure the Model and
Serial numbers in the app match the model and
serial numbers of the device.
Fig. 34 Model Number [1], Serial Number [2], and Send to Unit [3]
17. Click the Send to Unit button [3] to write the
changes to the device.
Fig. 35 Confirm Saving the Configuration Changes to the Device
18. Click OK [1] to write the configuration to the
unit. Once this is completed, your controller
has been successfully replaced and your
appliance is ready to use.
