3. See Figure 4-3. Drill a hole of an appropriate size to accommodate the conduit system tting in the bottom of
the plastic housing as shown.
CAUTION
Drill the hole carefully to avoid punching through the housing and damaging internal components
Place the Level 2 Charging Station on a soft surface during drilling to avoid damage.

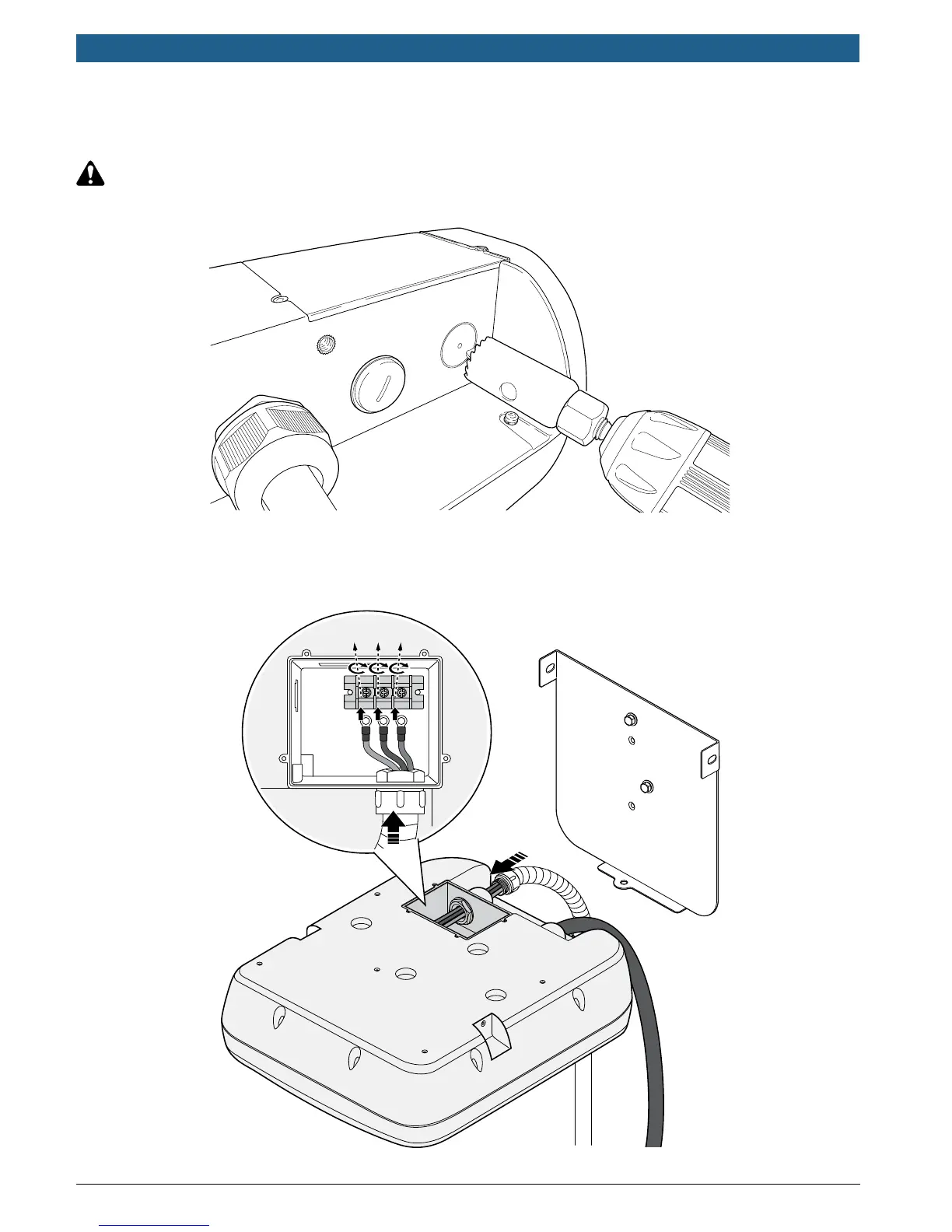

Figure 4-3. Drilling hole for conduit
4. See Figure 4-4. Install ring terminal eyelets on each wire end and connect each to the correct terminal input
block connector. Use copper wire of the appropriate size to operate the EVSE at its rated amperage output.
Replace the compartment cover and torque to 4.6 lb·in (0.5 N·m).
Figure 4-4. Electrical wiring with detail of input terminal block
