5. See Figure 4-5. Align the screw holes of the mounting bracket with the Level 2 Charging Station.

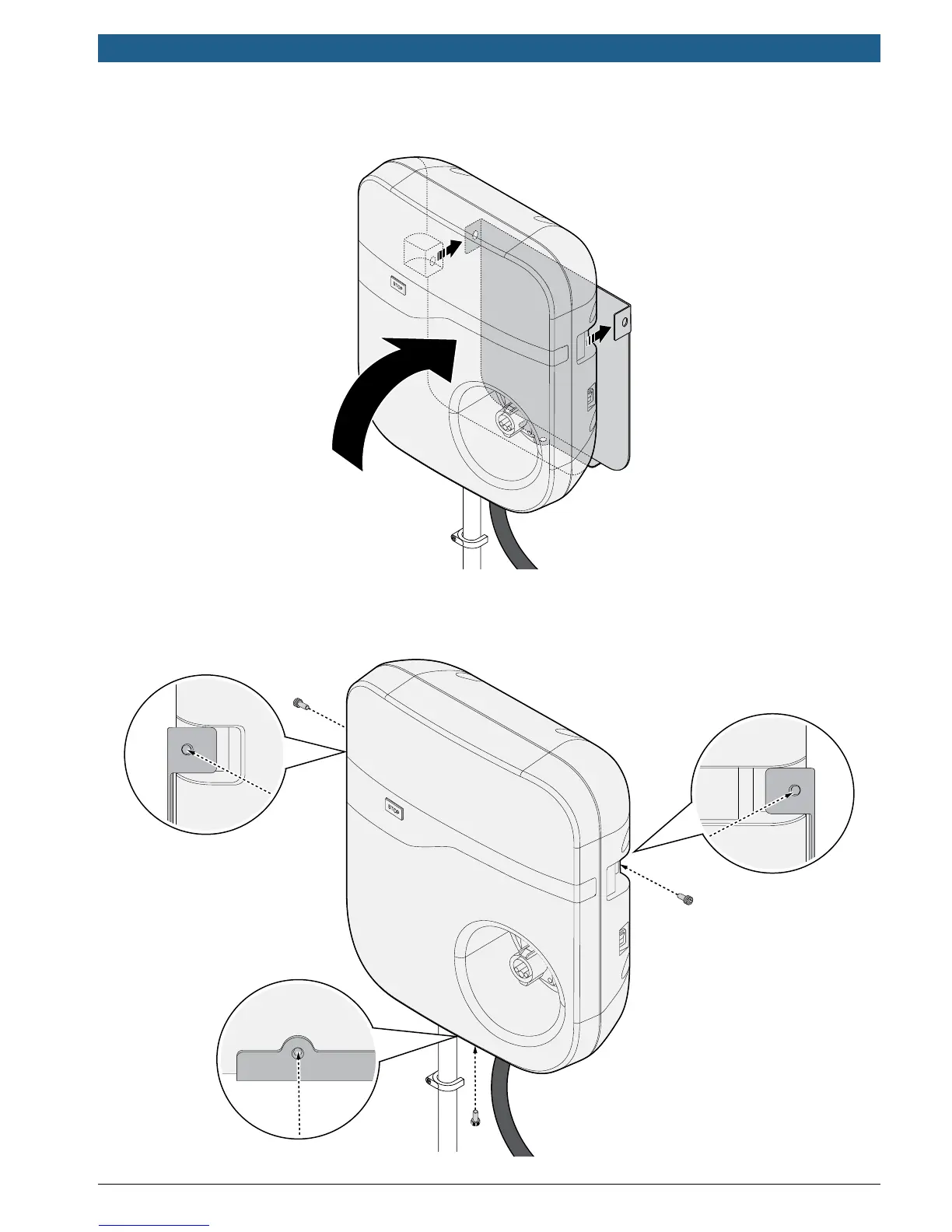

Figure 4-5. Alignment of charging station on mounting bracket
6. See Figure 4-6. Install and secure the charging station to the mounting bracket with the three (3) screws
supplied.
Figure 4-6. Installation screw locations
