Product description

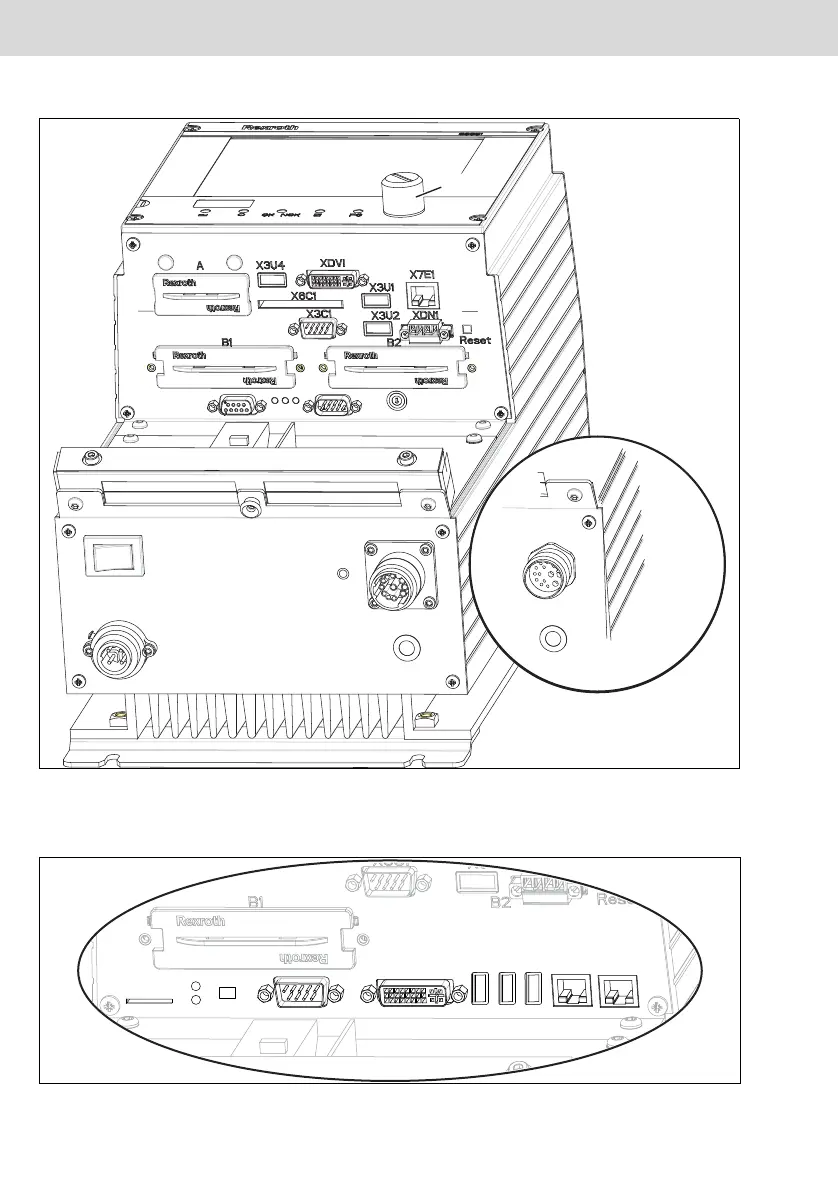

Fig. 2: Available interfaces of the Compact System (interface components depending on CS va-
riant)
Fig. 3: Interfaces of the integrated computer unit (below slots B1/B2)
X3U3
XDS1
QO
X1N
XDAC1
XDAC2
XDS2
St2
St1
X6MSD2
X3U6
X3U7
X3U8
X3C2
XDVI2
X7E4
X7E5
Reboot
