Transport and storage
LED indicators (St1, St2)
LEDs St1 and St2 (see Fig. 25) show the
operating state of the computer unit..

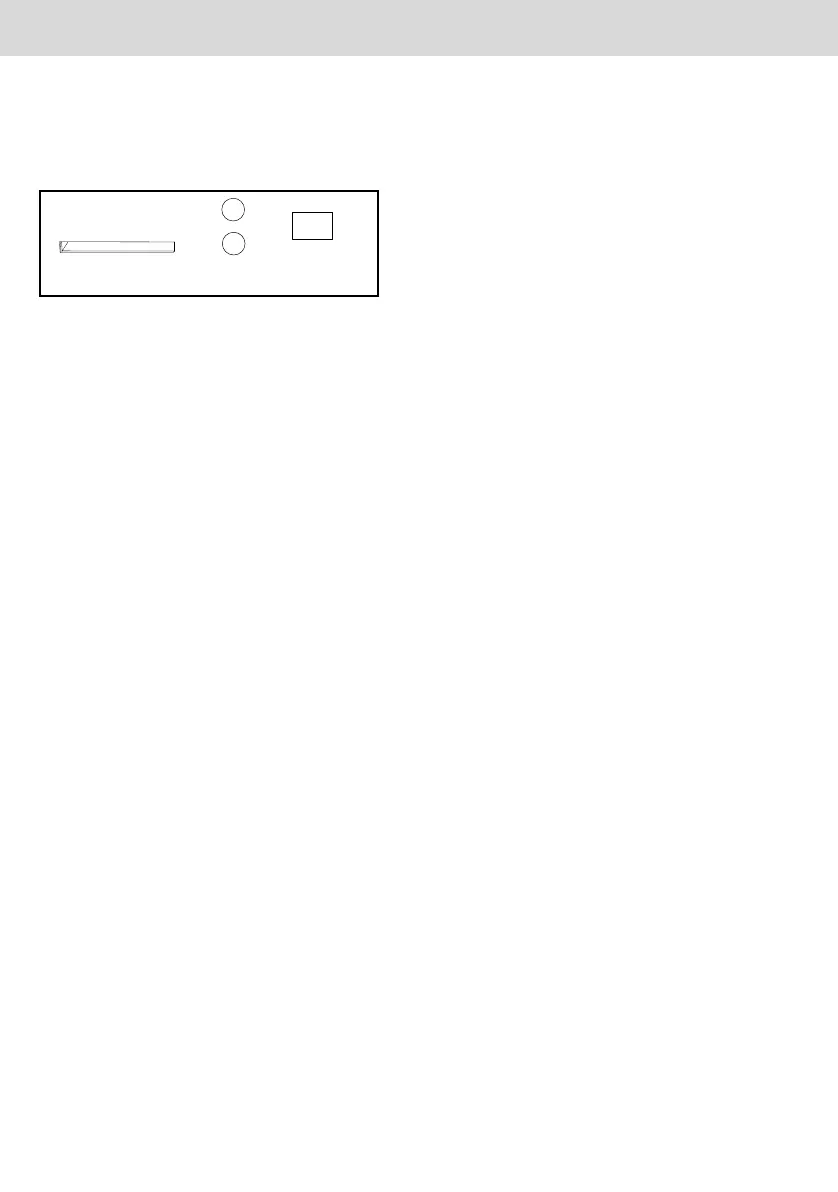

Fig. 25: Computer unit LEDs
If LED St1 is off and St2 emits orange light,
the computer unit is functioning properly.
Otherwise, the voltage supply is wrong or
the computer unit is defective.
Computer unit components (CS351E-
G+, CS351S-G+)
• Intel Atom 1.6 GHz processor
•2 GB RAM
• 16 GB mass storage (Solid State Disk)
• Windows 7 (pre-installed)
• Built-in Ethernet switch for optional com-
munication with the computer unit or the
controller of the Compact System
5 Transport and storage
For storing and transporting the product al-
ways observe the ambient conditions speci-
fied in the technical data (see “Technical
data” on page 103).
Make sure the Compact System is kept up-
right if it is transported in the assembled
state. If it is not possible to keep it upright
while transporting, secure the Compact
System accordingly.
