68/108 Bosch Rexroth AG CS351 | 3609929B45/2014-09
Product description
4.1 External interfaces
X1N power supply connection
interface
The compact system is delivered with an
EU power supply connection and power
plug with screw terminals. The power sup-
ply connection cable can be unscrewed at
the connection plug and assembled as
desired.
A connection cable for the American market
is available, but must be ordered separately.

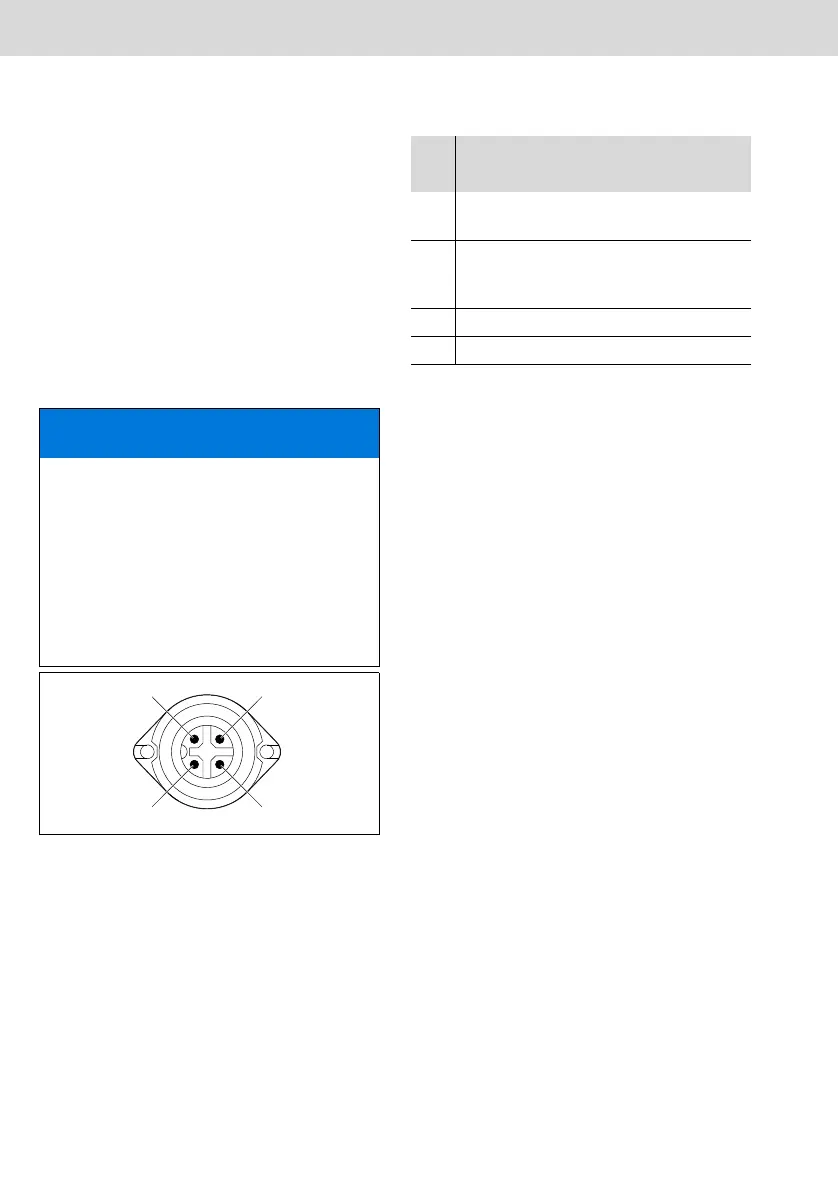

Fig. 4: Connection assignment of the power
supply connection plug
NOTE
Damage due to use of non-original
parts!
Damage to the Compact System
 Only use power supply connection
cables from Rexroth.
 The Rexroth product range includes
suitable cables. Observe local regula-
tions in this regard.
12
PE 3
Tab.2: X1N pin assignment
Pin Signal
Description/
function
Voltage/
current
1 L1 L1 power supply
connection
230 V
AC
/5 A,
120V
AC
/10A
2 N Power supply
connection
neutral
230 V
AC
/5 A,
120V
AC
/10A
3n.c. -
PE PE Leading PE wire PE potential
