LED display
The network status is indicated by the three
LEDs on the front panel (see Fig. 21):
• LED 1 describes the network status of
the users connected to XDAC1,
• LED2 describes the network condition
of the compact system
• LED 3 describes the network status of
the users connected to XDAC2,

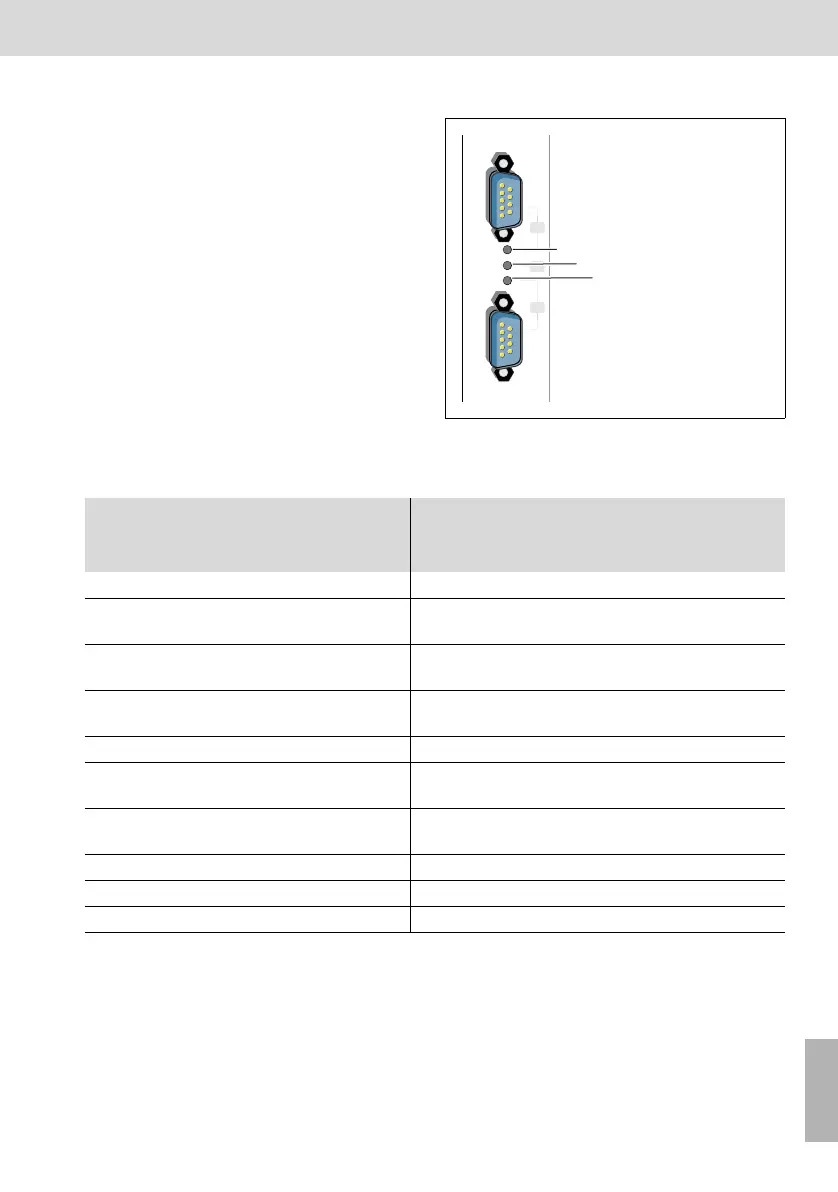

Fig. 21: LEDs for network diagnosis
LED 3
LED 2
LED 1
XDAc1
network status
XDAc2
Tab.16:
State
LED 1
user(s)
at XDAC1
LED 2
Internal
user(s)
LED 3
user(s)
at XDAC2
Power supply too low All three LEDs flashing red synchronously
Connection is being established/reconfigura-
tion
Yellow flashing
light
Yellow flashing
light
Yellow flashing
light
Communication with user(s) at XDAC1 estab-
lished
Green
Communication with user(s) at XDAC2 estab-
lished
Green
Internal communication established Green
Poor connection to user(s) at XDAC1
a)
Red flashing
light
Poor connection to user(s) at XDAC2
a)
Red flashing
light
User at XDAC1 is not activated or not available Off
User at XDAC2 is not activated or not available Off
Internal user(s) not activated Off
a)
The cause may be a cable fault. Check whether the maximum cable length has been kept and replace
the cable if necessary.
