Operation
Securing the Compact System
The lock on the front cover can be secured
with a padlock.
LED indicators of the Compact System

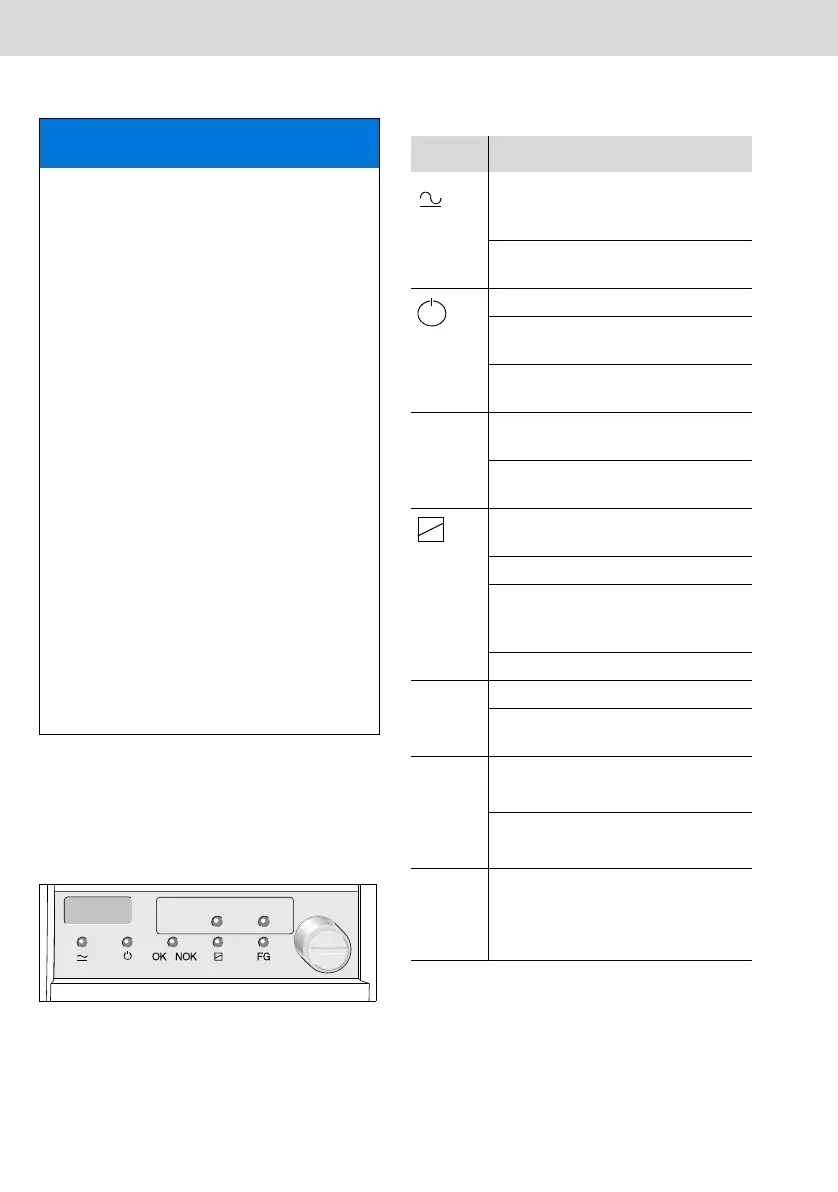

Fig. 34: LEDs on the front
NOTE
Important operation information
Keep the air ways used for cooling
the Compact System clear.
The Compact System may only be
operated in grounded networks. Ope-
ration in networks that are not directly
grounded (IT network) is not permit-
ted, as clearance and creepage dis-
tances in the system may be overloa-
ded, impairing the function of the
installed residual-current-operated
protective device (only for ErgoSpin
variants).
The only protective measure permissi-
ble in accordance with EN 50 178 is
protective grounding. The input cable
to the Compact System must have a
PE wire.
To ensure potential equalization of all
system components, a potential equa-
lizer is required between the workpi-
ece and tightening spindle (or its car-
rier plate), in addition to grounding the
Compact System.
Tab.18: LED modes
LED Color Diagnosis
Off No power supply or low-
voltage power supply avail-
able
Blue Power supply and low-volt-
age power supply available
Green Ready for operation
Green
Flashing
Not ready for operation, but
no system error
Red
Flashing
System fault
OK/NOK Green Tightening case evaluation:
OK
Red
Flashing
Tightening case evaluation:
NOK
Off Motor contactor
not picked up
Green Motor contactor operated
Red/
green,
flashing
Servo amplifier initialization
Red Motor contactor error
FG Green Servo amplifier release
Off No enable
Servo amplifier
RUN/
STOP
(only for
CS... IL)
Green Integrated logic activated
Red
Integrated logic deactivat-
ed
ERROR
(only for
CS... IL)
Red
Flashing
Integrated logic error
