Loss of UL/CSA conformity due to modifications at the device.
UL and CSA marking applies only to the device upon delivery. After modifying the device, verify
the UL and the CSA conformity.
To guarantee an UL/CSA-compliant operation, the following conditions have to be met:
−
Use only insulated copper wires suitable for at least 60 °C
9 Interfaces
1
2
3
4
5
6
7

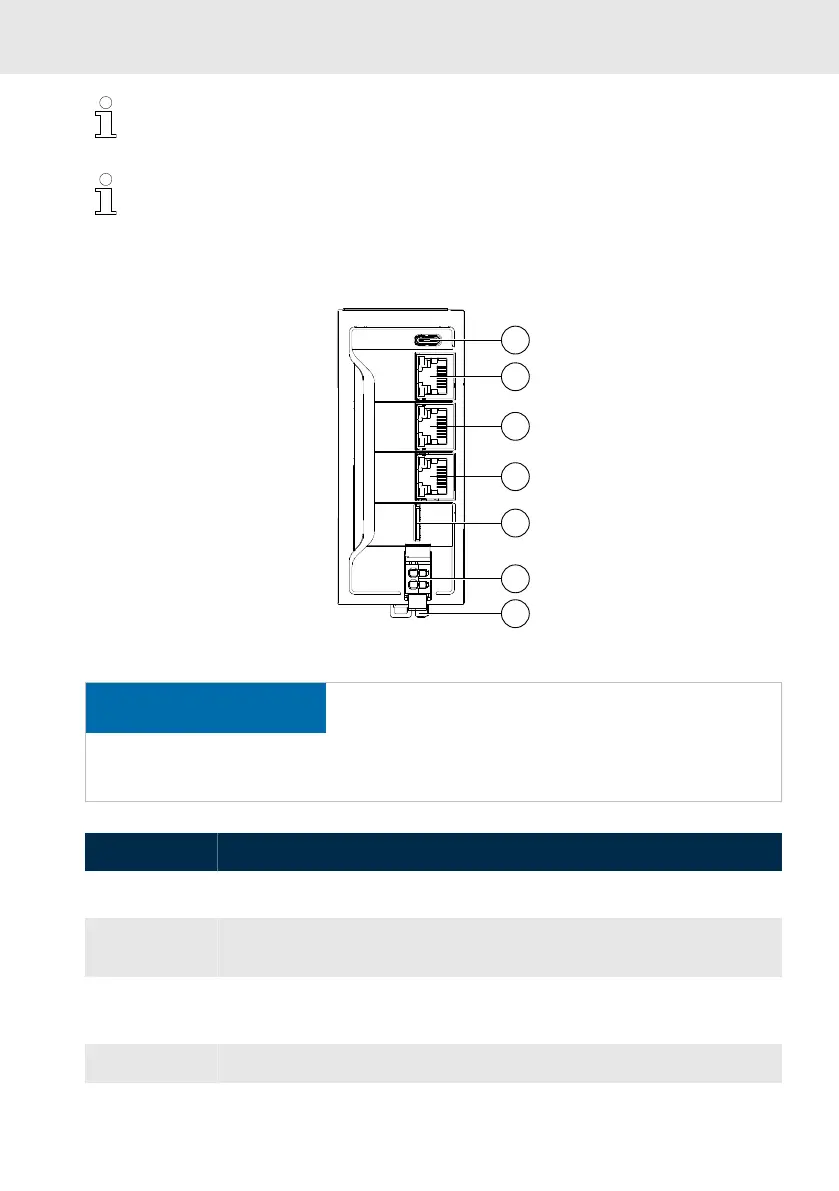

Fig. 4: Interfaces
NOTICE
Damage of the device by plug mounting under voltage!
− Before mounting or dismounting components, disconnect
the control - including its components - from voltage.
− Connect the voltage only after the control and its compo-
nents have been set up.
Table 12: Control interfaces
No. Name Connection type Connector type
(Integrated)
Mating connector and cable
(From outside)
① XF01 USB host
USB 2.0
USB socket,
Type C
USB plug,
Type C
② XF10 Ethernet
10/100/1000 MBit
HMI and engineering port
RJ45 socket
8-pin
RJ45 plug
(Twisted pair, 8-wire)
③ XF50 Ethernet
10/100/1000 MBit
Field bus master (Ethercat)
RJ45 socket
8-pin
RJ45 plug
(Twisted pair, 8-wire)
④ XF51 Ethernet
10/100/1000 MBit
RJ45 socket
8-pin
RJ45 plug
(Twisted pair, 8-wire)
