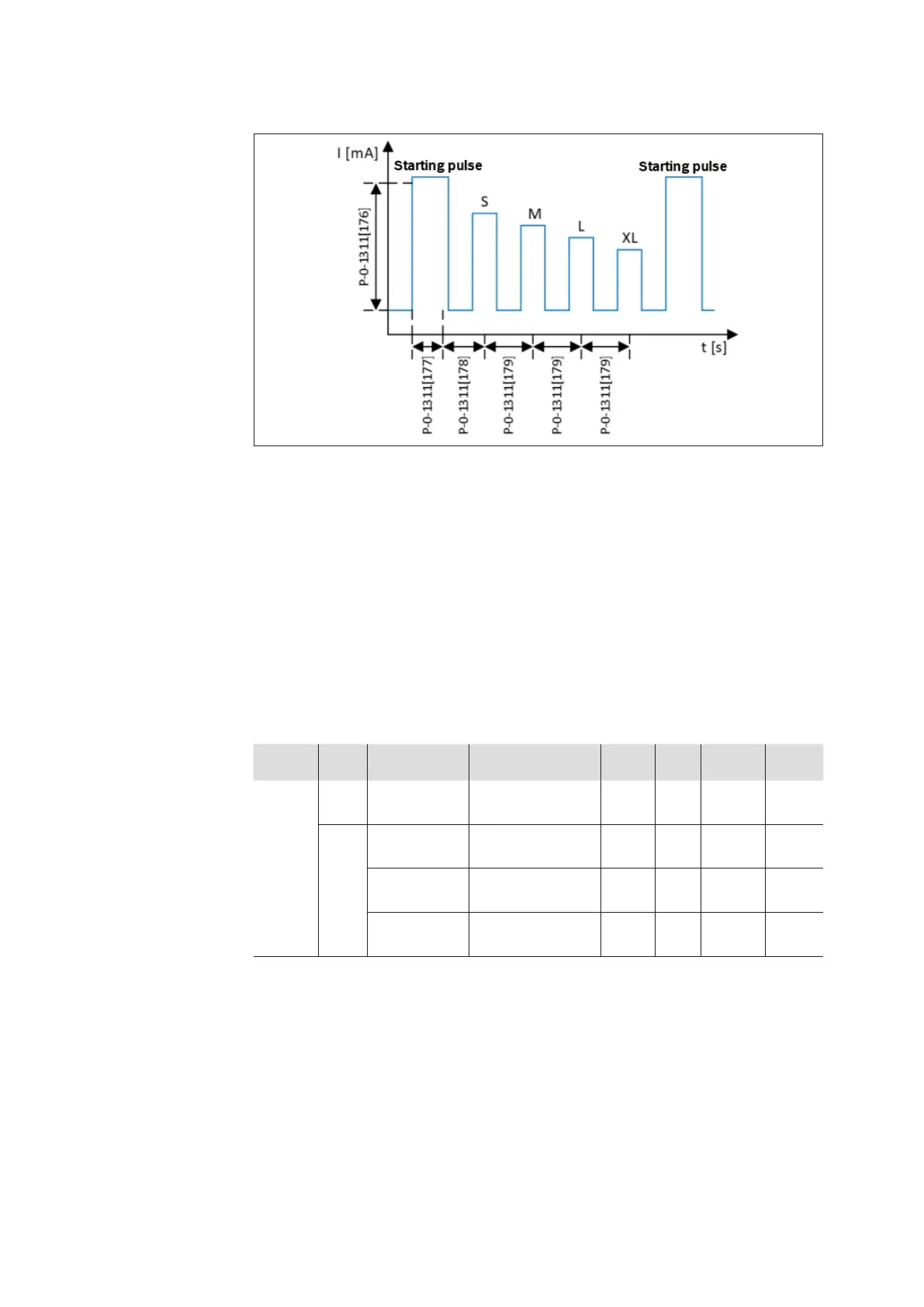

Fig. 4: Configuration of the evaluation of the serial signal of the particle sensor
The average particle content is output via P-0-1292. The individual values of the particle
content are output via P-0-1424 (S), P-0-1425 (M), P-0-1426 (L) and P-0-1427 (XL).
Sensor 6.510 at port 5 of the IO link gateway is used to measure the relative oil
humidity.
If the sensor is not present, the value -999 is output. If the sensor measures an
invalid value, -999 is output as well and warning B325 is issued.
Relative oil humidity is output in P-0-1272. The measured temperature value of the
sensor is not used.
Table 10: Parameters for relative oil humidity
Function Parameter Description Unit Bytes Decimal
points
Default
Relative oil humidity
P-0-1272 Actual value % 4 1 -
Threshold value
P-0-1389[13] Warning % 4 3 85
P-0-1389[14] Error % 4 3 95
P-0-1389[15] Debouncing time ms 4 3 0
Relative oil humidity
