Product information 49/128
CytroBox, RE 51057-B/11.19, Bosch Rexroth AG
3
1
11 10 9
4
5
6
7
2
8

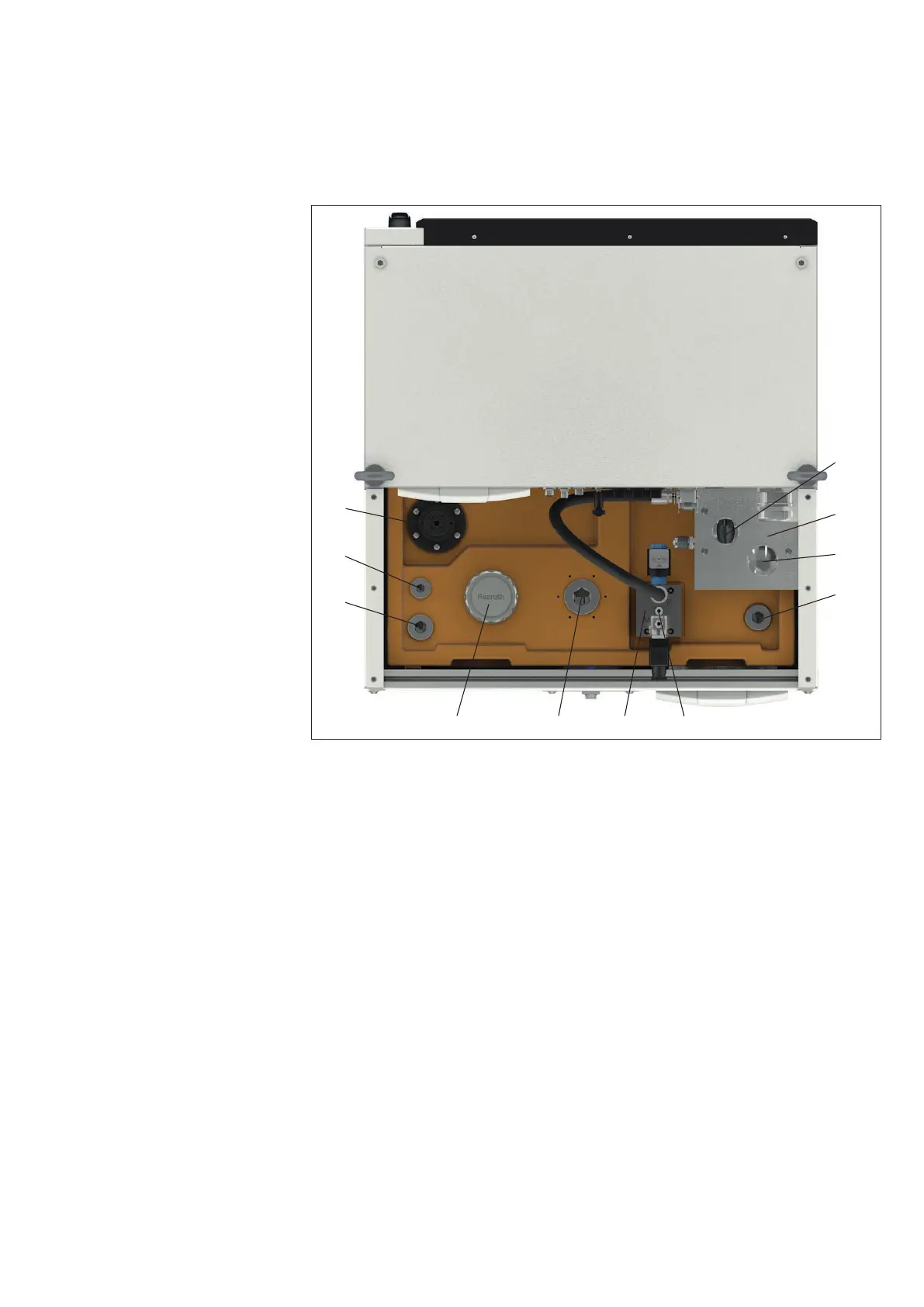

Fig. 6: View from top
1 Oil tank port G1 (backup)
2 Oil tank port G3/4 (backup)
3 Filling level and temperature sensor
4 Pressure port P, G1 1/4
5 Manifold block
6 Return flow port T, G1 1/2
7 Oil tank port G1 (backup)
8 Pneumatic connection for drainage
9 Degassing and drainage module
10 Oil tank port G1 1/2 (backup)
11 Breathing filter
