50/128 Product information
Bosch Rexroth AG, CytroBox, RE 51057-B/11.19

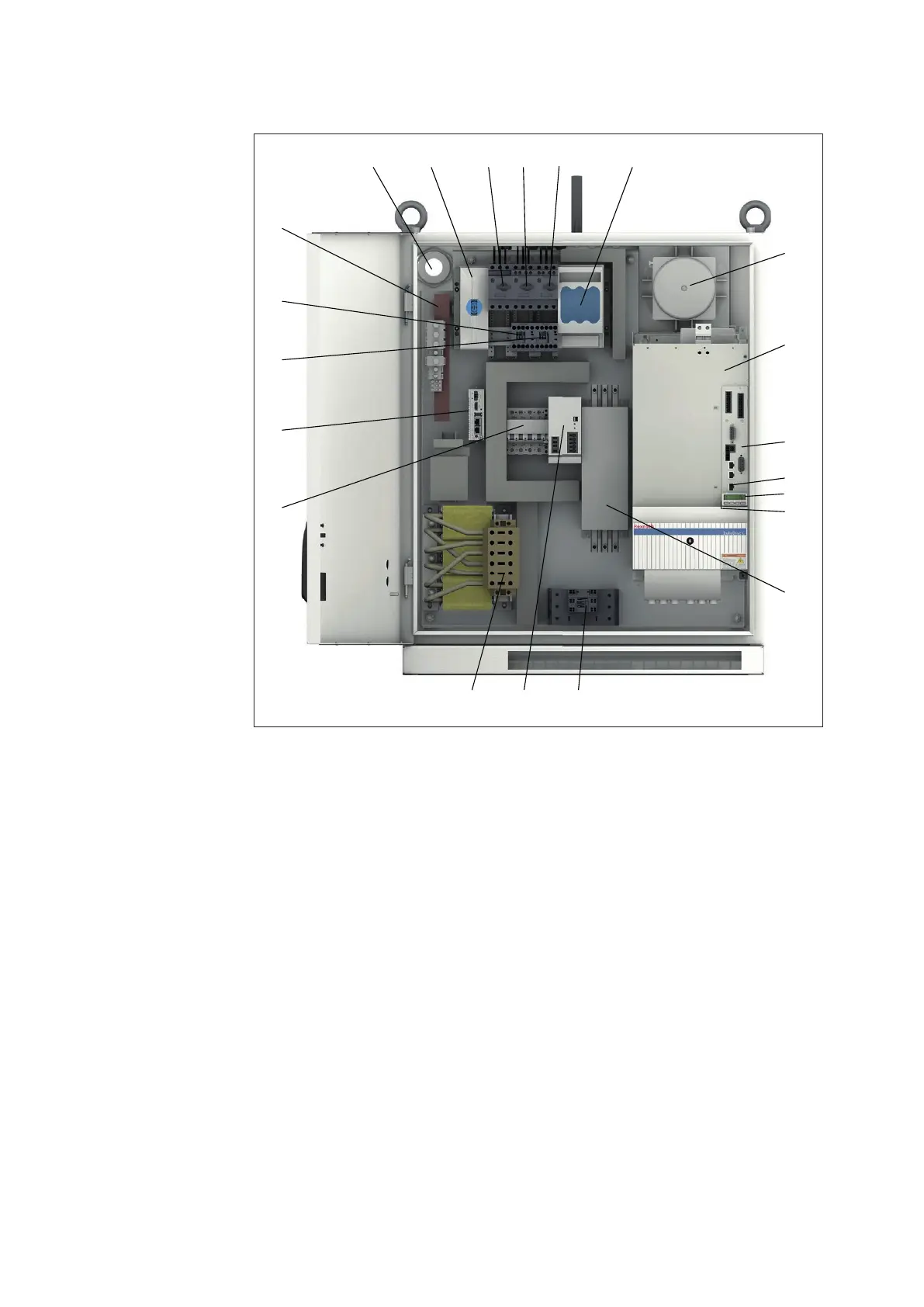

Fig. 7: Electrical cabinet
1 24-V-fuse protection
2 CytroConnect hardware
3 Contactor for air cooler
4 Contactor for circulating pump
5 Grounding terminal
6 Cable bushing for power supply
7 Connection terminal for feed-in
8 Fuse for 24-V-power supply unit
9 Protective motor switch for
circulating pump
10 Protective motor switch for air cooler
11 Performance protection
12 Fan for electrical cabinet
13 Drive controller power section
14 Drive controller control section
15 X26: Engineering port
16 Drive controller operating unit
17 Micro SD card
18 Mains filter
19 Power contactor
20 24-V-power supply unit
21 Mains throttle
1
2
3
4
5
8910
7
12
21 20 19
11
13
14
15
18
6
16
17
