Assembly 63/128
CytroBox, RE 51057-B/11.19, Bosch Rexroth AG
 The back pressure-protected oil tank ports G3/4 (see Fig. 14, pos.6), G1
(seeFig. 14, pos.3 and 5) and G1 1/2 (see Fig. 14, pos.4), can be optionally
connected for rotary transmission leadthrough. Close unused ports with blanking
plugs.
If failure of a hose line may cause hazards caused by whipping, installation of a
hose safety catch is recommended.
If the hose lines are equipped with tear-proof fittings, a hose safety catch is not
required.
If the degassing module is included in the scope of delivery, it is assembled at the
factory.
 Connect a pneumatic hose (d = 6mm), see Fig. 16, pos.1.

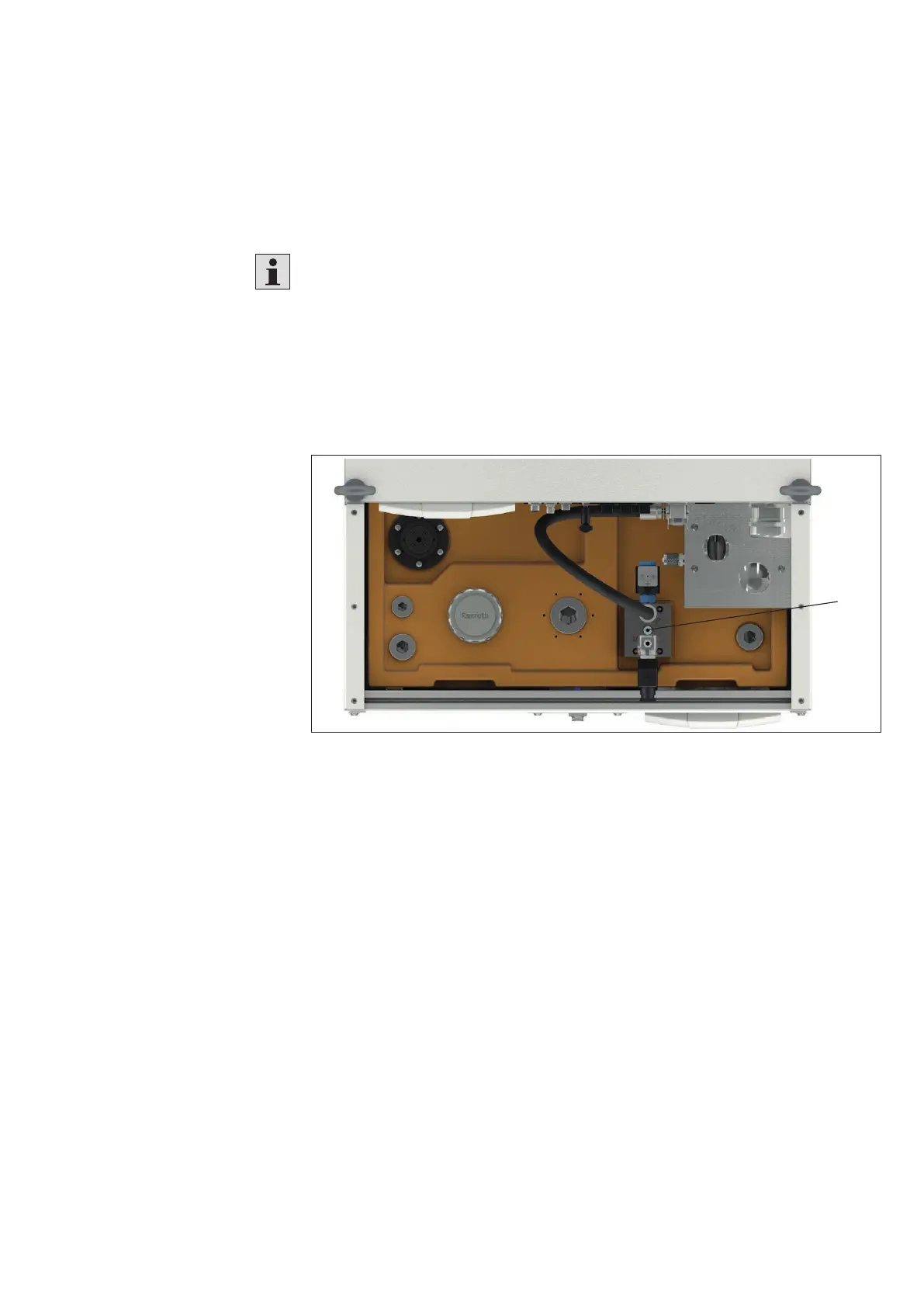

Fig. 16: Pneumatic connection
1 Pneumatic connection
The Minimess connection MP3 (see Fig. 9, pos.7.070 on page52) is used to
determine the actual operating pressure or to bleed the system if there is no
controlsystem.
 Close unused ports with blanking plugs.
Back pressure-protected
oil tank ports
Connection for the
degassing and drainage
module (optional)
1
Minimess connection MP3
