78/128 Commissioning
Bosch Rexroth AG, CytroBox, RE 51057-B/11.19

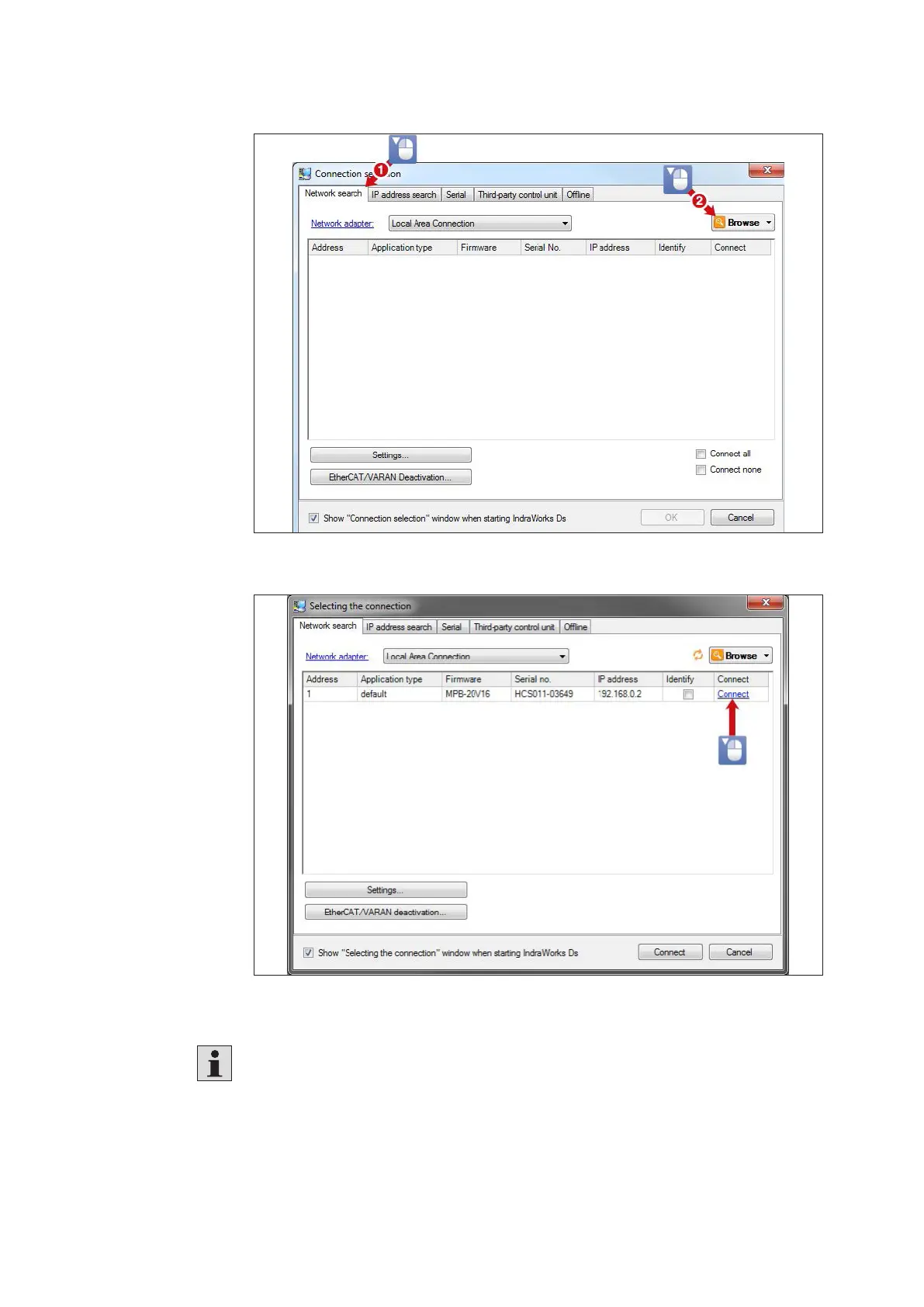

Fig. 22: Network search
Fig. 23: Establishing a connection in the network search
When "Check" is set in the "Identify" column, hash tags flash on the display of the
drive controller, see Fig. 7, pos.16 on page50 of the indicated drive.
If the network search was successful but the IP address does not match,
communication is not possible. IndraWorks then displays the device in red.
