94/128 Commissioning
Bosch Rexroth AG, CytroBox, RE 51057-B/11.19
4. IMC configuration
The CytroBox pressure control is optimized for most of the applications.
Ifnecessary, the parameters of the control setting can be optimized.
For further information, refer to the commissioning description of the SvP 7020
IMC, see chapter 1.2 "Required and amending documentation".
 Check whether the optimization of the pressure control is necessary for your
application.
 To this end, analyze the behavior of the pressure control by means of the
oscilloscope function.
For easier commissioning, dialogs are provided which have been specially developed
for the technology function.

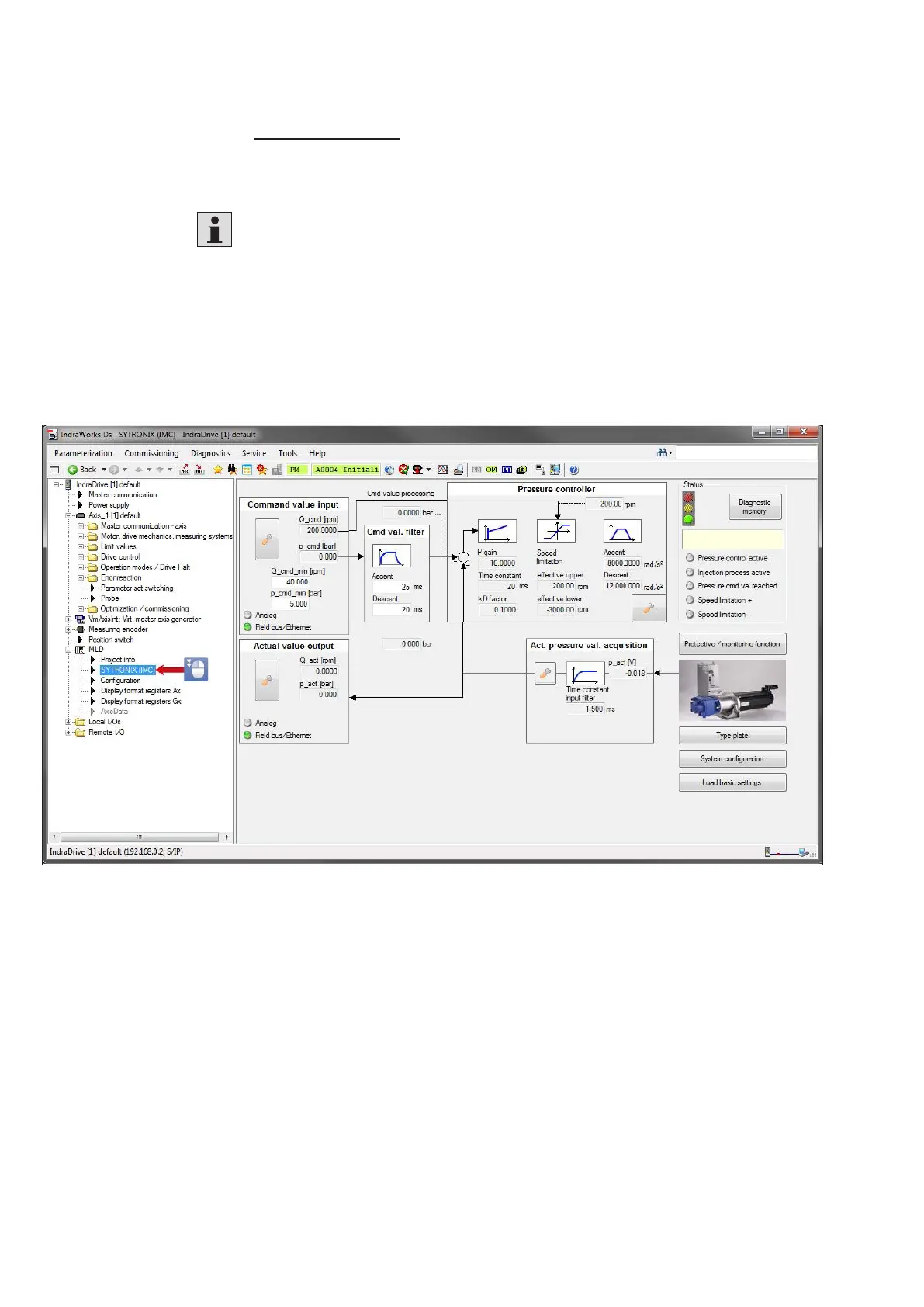

Fig. 36: Start dialog of the IMC software / parameter file
The optimized parameters are imported during production and can be maintained
formost applications. These instructions can be used for any necessary
optimization/adaptation of the pressure values.
IMC optimization
