4 Product description
Performance description
The VM350 power supply module supplies
the intermediate circuit voltage or
intermediate circuit power for the power
packs of the 350 tightening system and
provides the power supply to all the cards
within the 350 tightening system.
Device description

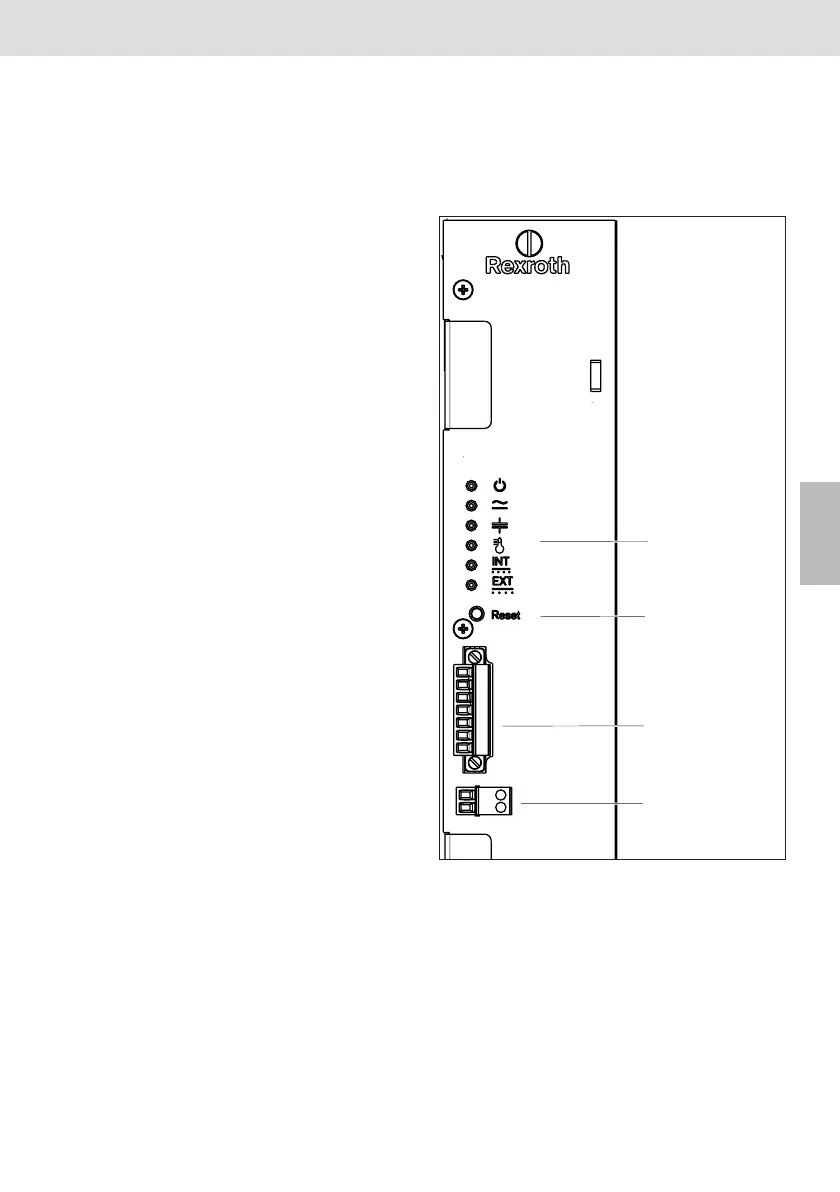

Fig. 1: Front view section of VM350
1 LED
2 Reset button
3 XDN2 user interface
4 24 V power supply: X1S2 interface
XDN2
X1S2
