Bosch RL Series - 2 Model Nomenclature

Model Nomenclature
2 Model Nomenclature

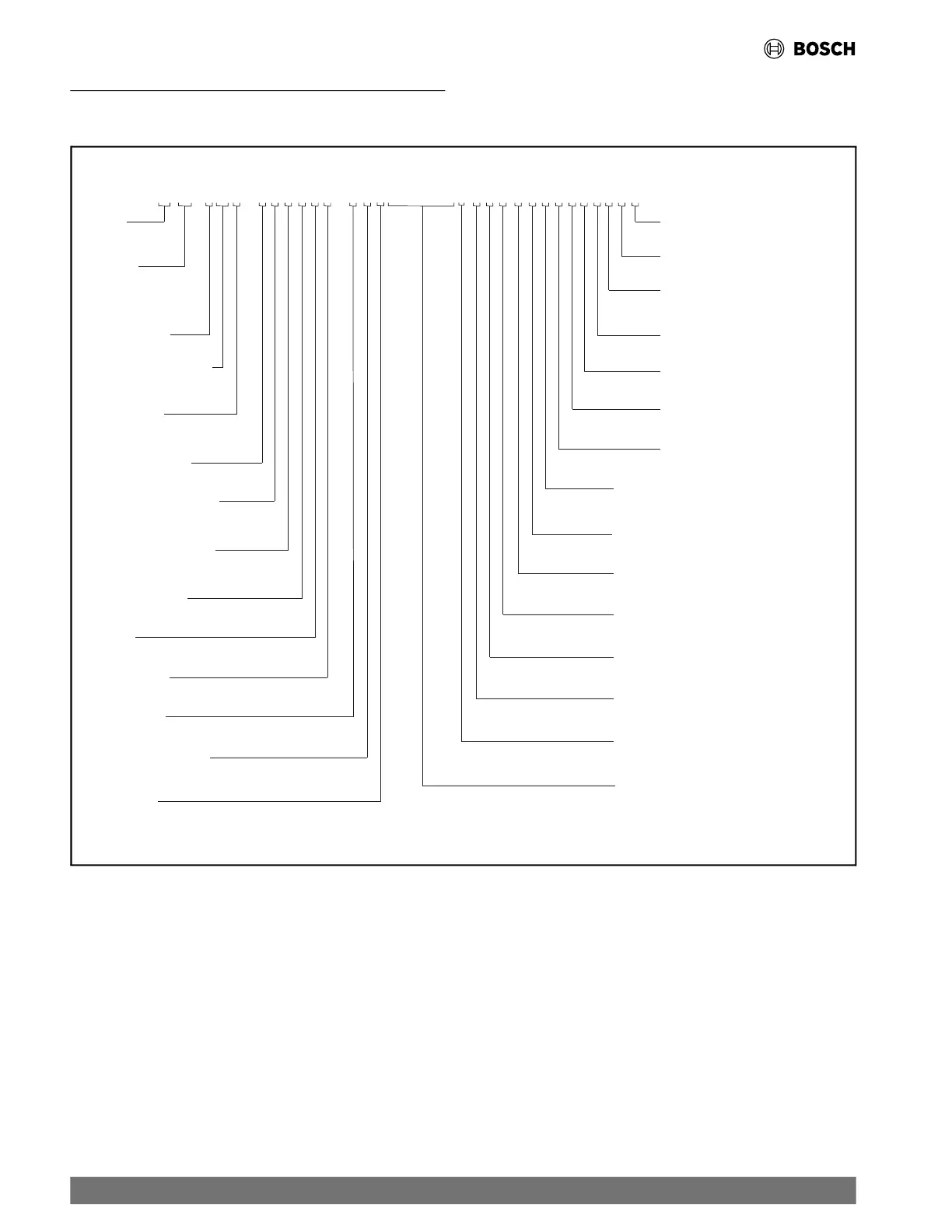

Fig. 1 Model Nomenclature
TRANSFORMER:
AIR FILTRATION:
WATER-FLOW CONTROL OPTIONS:
REFRIGERATION:
1-2 3-5 6 7 8-9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
CONTROLS:
ECONOMIZER:
NOT USED:
MOTOR HP/QTY (BELT DRIVE ONLY)
DRIVE SPEED (MC ONLY):
NOT USED:
AGENCY OPTIONS:
STANDARD/SPECIAL:
CHANNEL:
CODE STRING LEVEL:
X — Standard, 5k SCCR
ELECTRICAL OPTIONS:
S — Standard
A — Special #1
B — Bosch
A — Revision
X — None
X — N/A
X — N/A
1 — 1" Throwaway - 2-Sided Filter Rack (Side Access
)
X — None
X — None
X — None
X — Standard
7 — 75 VA
X — None
X — As Default for Non-Used Electrical Codes
RL 024 – 1 VT C – L L T P D A – X A G X X X X X X 7 X X X X 1 X X X X S B A
MODEL:
RL
NOMINAL
CAPACITY:
007, 009, 012, 015,
018, 024, 030, 036,
042, 048, 060, 070
ELECTRICAL
CONFIGURATION:
1 — 208–230/60/1
CABINET CONFIGURATION:
HZ — Horizontal
VT — Vertical
COAX OPTIONS:
C — Copper
N — Cupro-nickel
WATER CONNECTION:
L
— Front-Left Water
RETURN AIR CONFURATION:
L — Left
R — Right
DISCHARGE AIR LOCATION:
T
— Top
E
— End
FAN/MOTOR OPTION:
P — PSC
AIR COIL:
D — DuoGuard
REVISION LEVEL:
A
— Current
ELECTRIC HEAT:
X
— None
CABINET CONSTRUCTION:
A — G90 Steel / 1/2" 1.5 LB Dual-Density Fiberglass
APPLICATION:
G
— Extended Range (Geothermal)
6 |
RL Series Heat Pumps — 8733842393 (2024/05)
