SM Series Heat Pump
SM Series Heat Pump6 720 220 406 (2015/02) Subject to change without prior notice

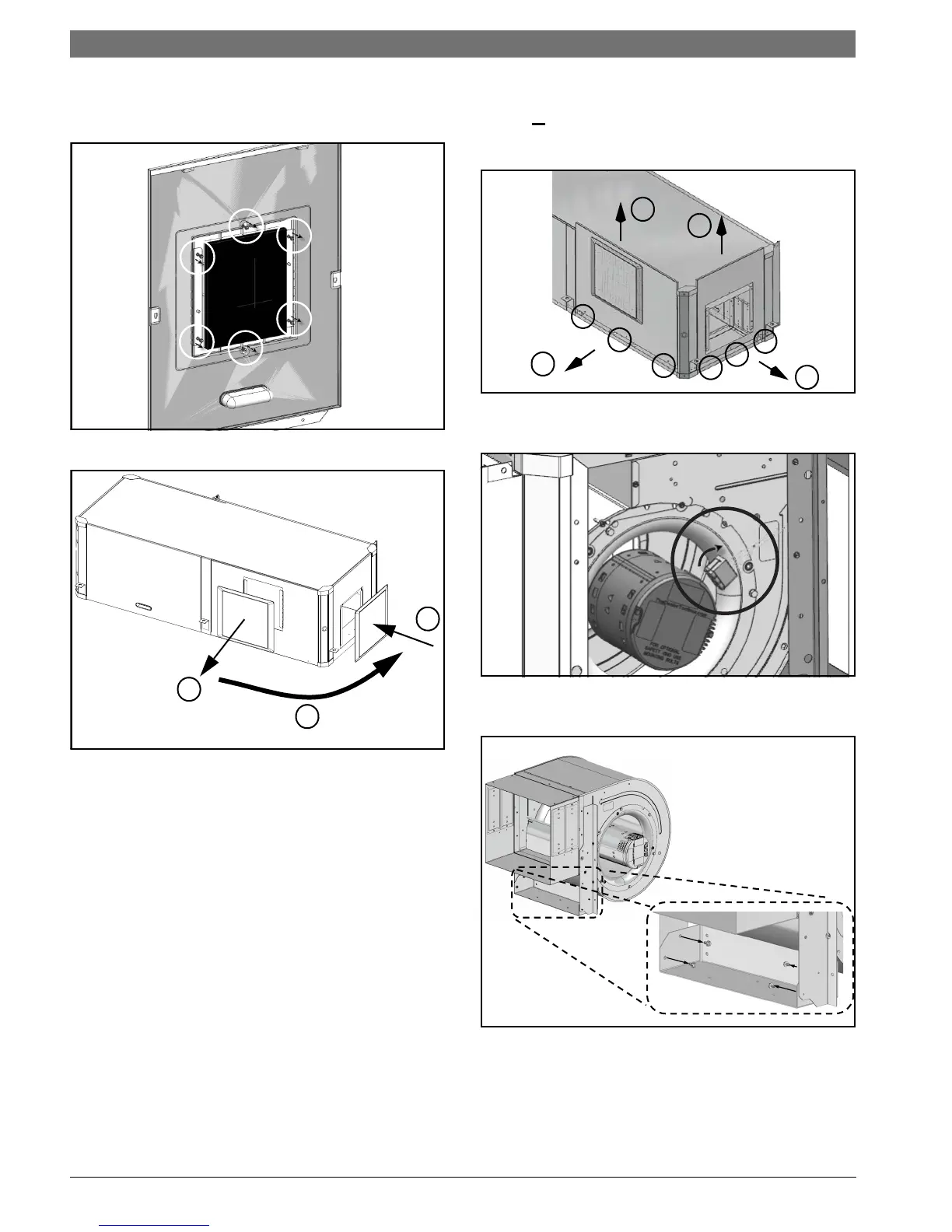

10 | Horizontal Configurability
16. Remove and retain plastic Blower opening
cover by removing (6) screws and reinstall it in
the new location (Figure#20 and #21)
Figure # 20
Figure # 21
17. Reinstall all unit panels.
Instructions - Right-Hand Unit (SM0**-
1HZ-*R*-**)
1. Remove and retain end and side
panels.(Figure#22)
Figure # 22
2. Disconnect blower motor wiring and ground
wire fastened to blower housing.(Figure#23)
Figure # 23
3. Remove and retain (4) screws under the
blower collar. (Figure #24)
Figure # 24
To Next Page
