SM Series Heat Pump
SM Series Heat Pump6 720 220 406 (2015/02) Subject to change without prior notice
12 | Horizontal Configurability

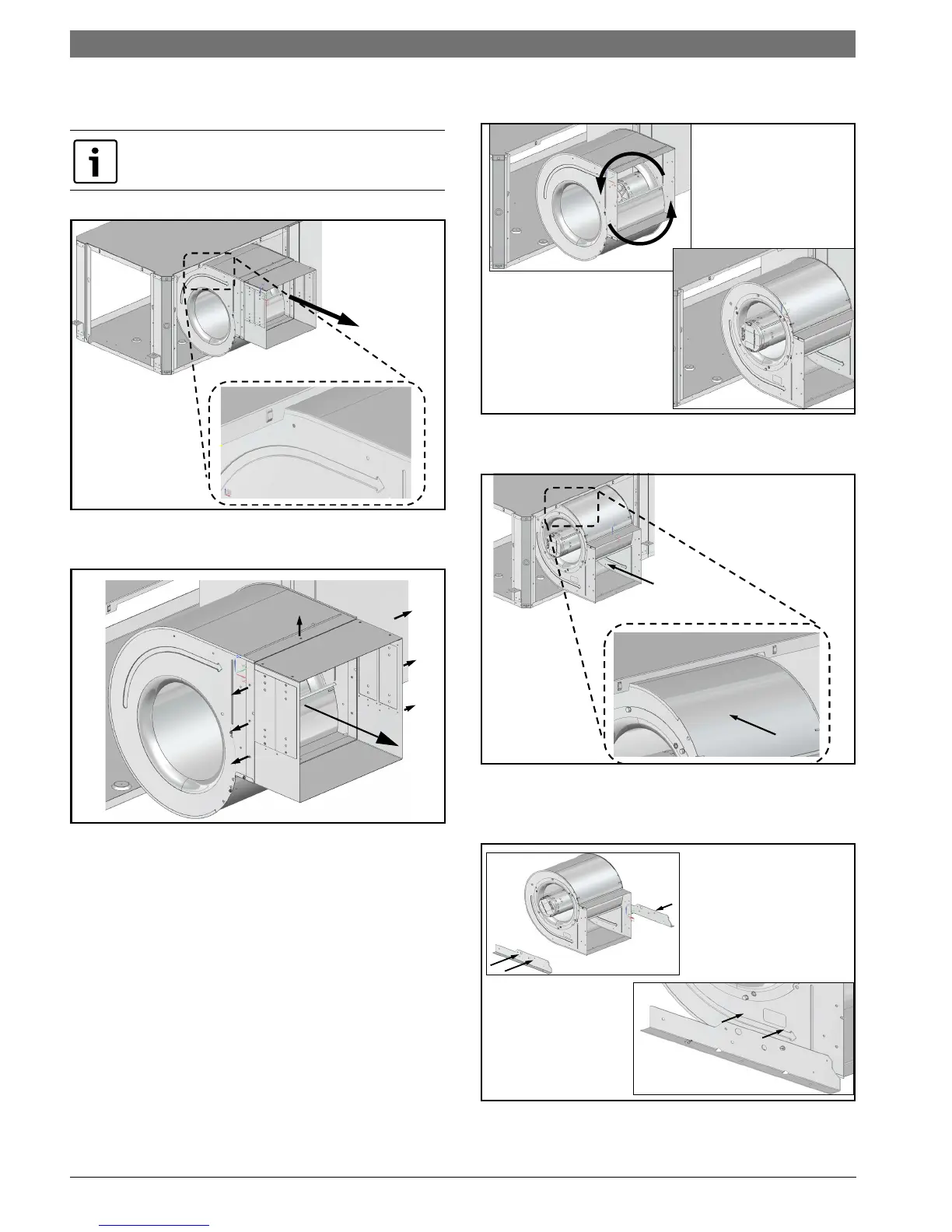

9. Remove the blower assembly by sliding it
forward. (Figure #30)
Figure # 30
10. Remove and discard blower collar by removing
(8) screws. (Figure #31)
Figure # 31
11. Reorient the blower assembly 180 degree with
blower “belly” up. (Figure #32)
Figure # 32
12. Move the blower back into the cabinet. (Figure
#33)
Figure # 33
13. Reinstall (2) vertical blower brackets in the
new horizontal position using (4) screws.
(Figure #34)
Figure # 34
Unit top is notched to allow blower to slide
through.
