815_58300000120057_ara_en_d.doc – 25.05.11 Seite 28 von 60

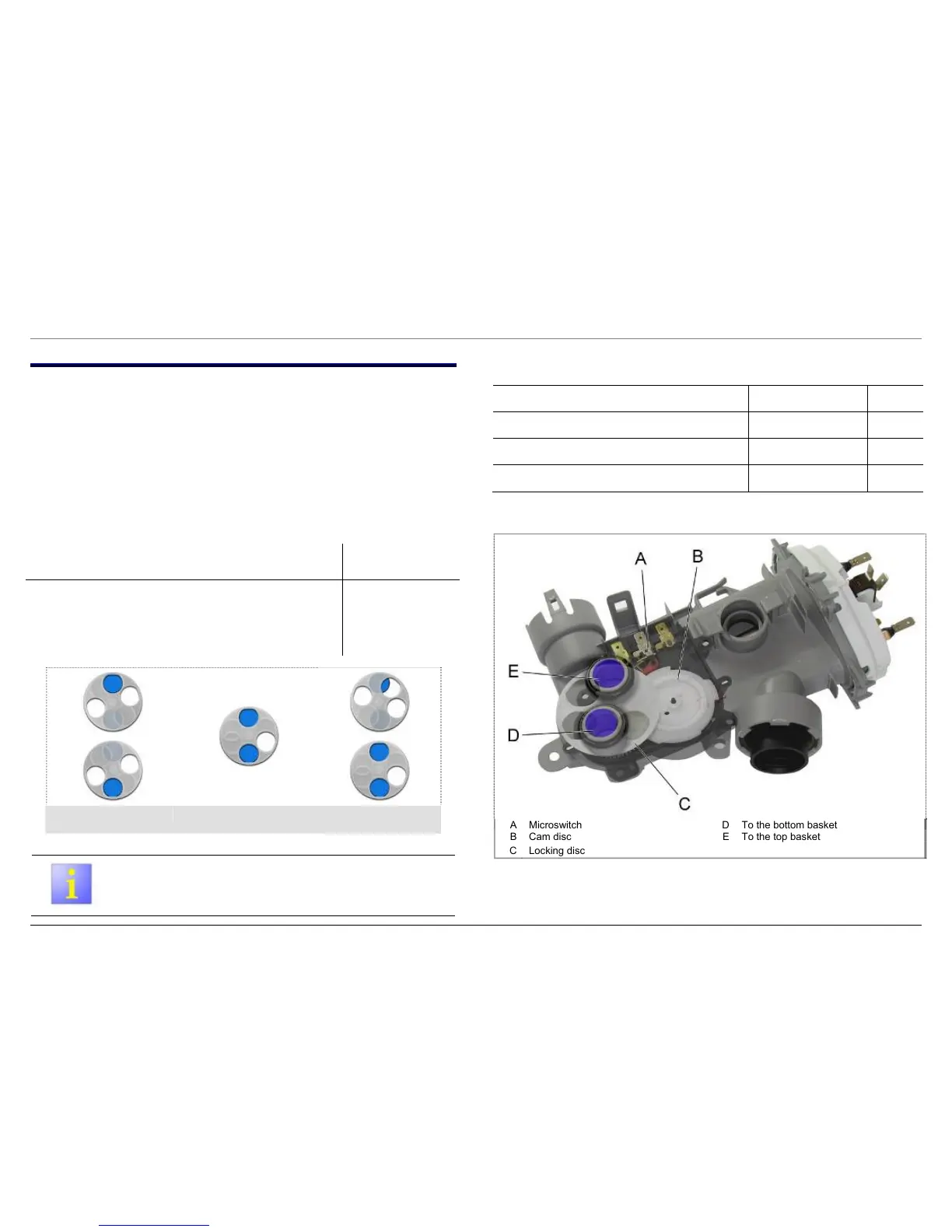

4.19 Water points
The water points are responsible for alternate rinsing and for different
rinsing pressures. They consist of a synchronous motor with gears,
cam disc (B) , microswitch (A) and locking disc (C). The synchronous
motor is actuated via a triac. The controller receives information on the
position of the locking disc (C) from the microswitch (A) which is
actuated by the cam disc (B). The synchronous motor drives the gears
and therefore the cam disc and the locking disc.
The locking disc has three openings and locks the relevant water
channel to the spray arms. Water pressures vary depending on the
position of the locking disc.
Rinse type
Water
pressure
Alternate rinsing Top basket or bottom basket = high
Two-in-one Top basket and bottom basket = medium
Change between two-in-one or top basket
throttled
=low
Fig. 1 Alternate rinsing Fig. 2 Two-in-one
Fig. 3 Top basket
throttled / two-in-one
Technical specifications:
Designation Value Unit
Nominal voltage (synchronous motor) 230–240 V
Frequency 50 / 60 Hz
Resistor approx. 9.3
kΩ
A Microswitch D To the bottom basket
B Cam disc E To the top basket
C Locking disc
The water points are integrated in the instantaneous
water heater and may be replaced as a complete unit
only.
