815_58300000120057_ara_en_d.doc – 25.05.11 Seite 32 von 60
6.3 Worktop (optional)
6.3.1 Removal

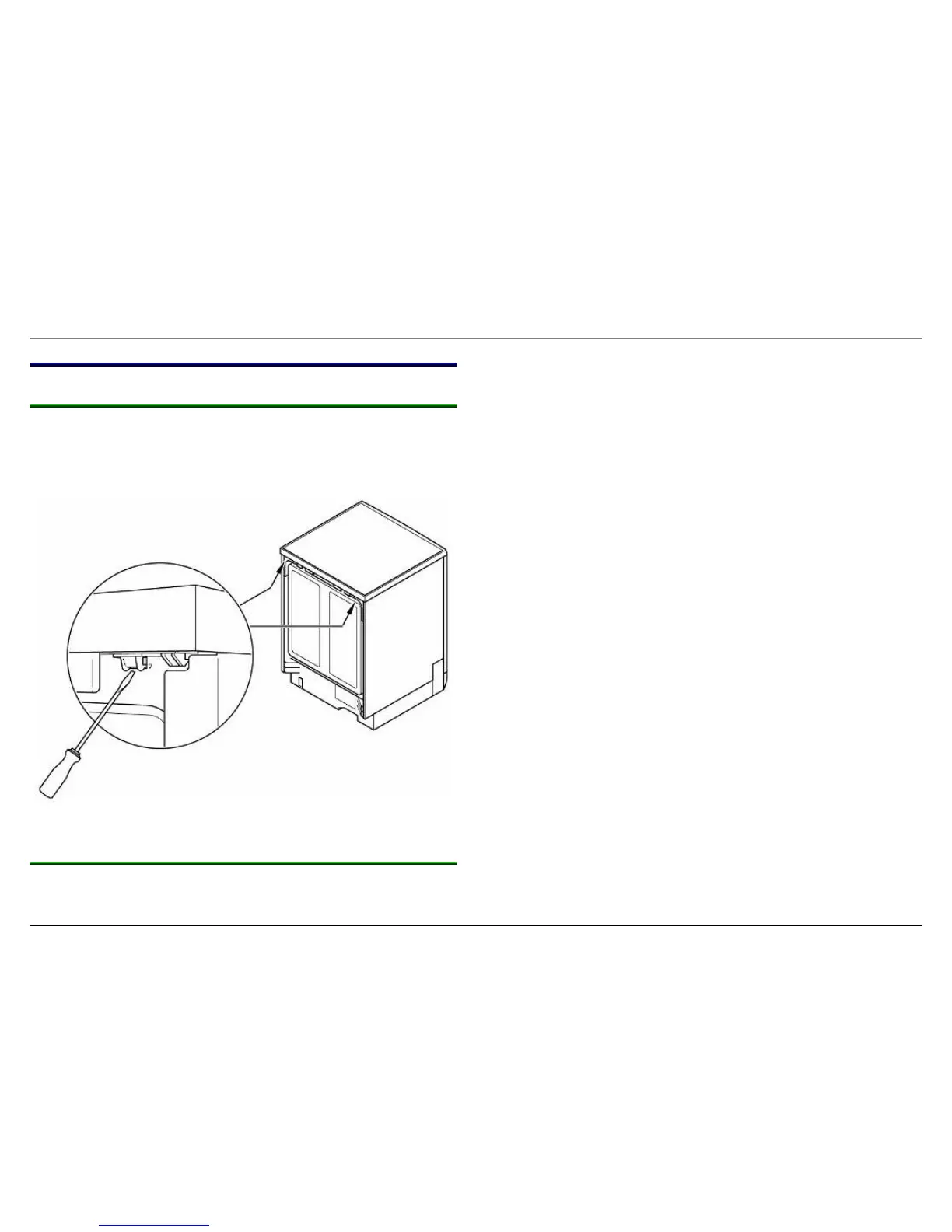

Catch tappets are located on the rear right and left hand sides of the
worktop.
► Press up the catch tappets
► Push back the worktop and lift off
6.3.2 Installation
► Insert worktop into the guide
► Push forwards until both catch tappets engage at the rear
