6.4 Removing and installing dispenser
6.4.1 Removal
► Unscrew the outer door
► Leave top basket in the appliance and close the door
► Remove the electrical connections

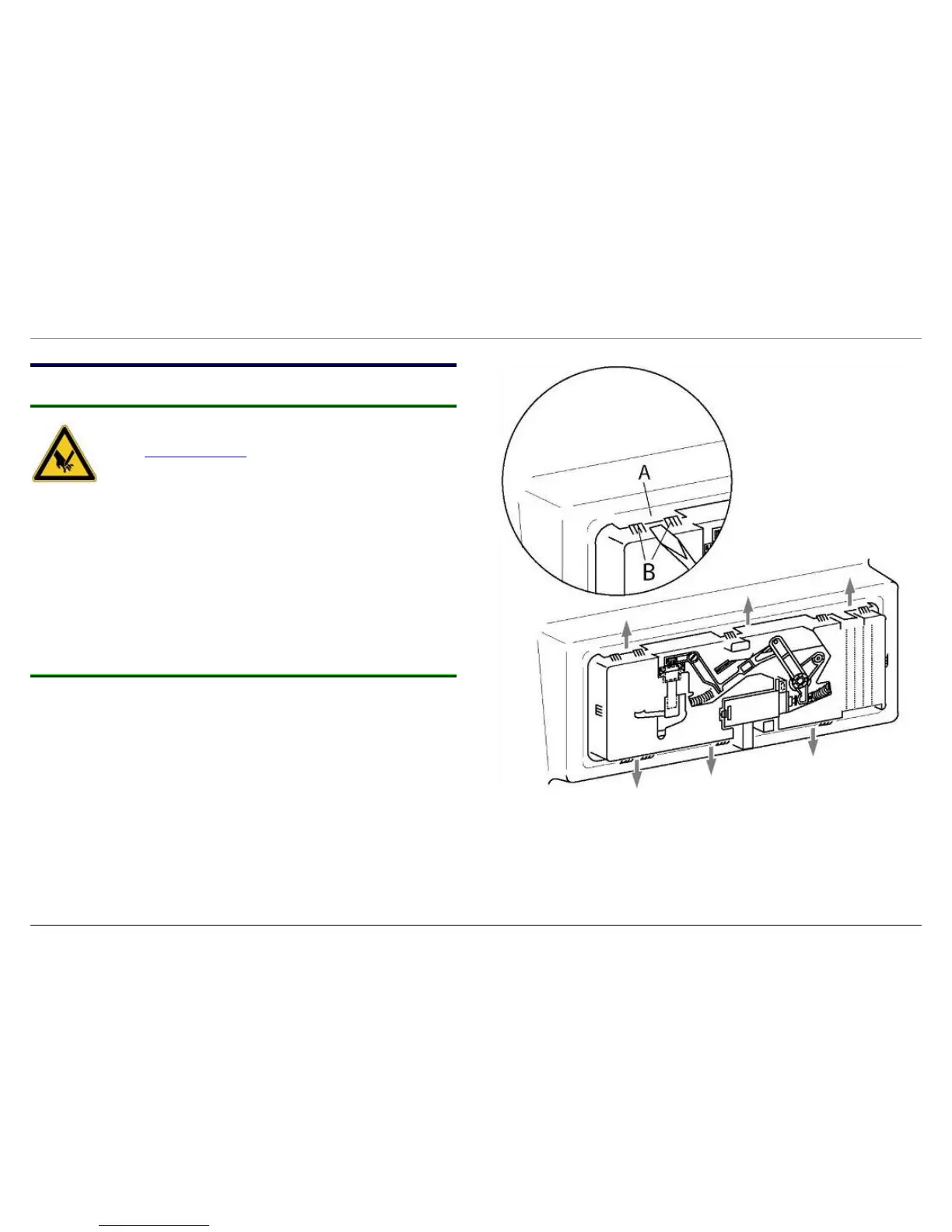

► Using a screwdriver, lift the retention plates (A) stamped out of the
inner door off the catches (B).
► Press the released dispenser inwards
6.4.2 Installation
► Align retention plates (A) towards the centre so that all catches (B)
lock securely into position
► Before installing the seal, lubricate with washing-up liquid
► Press dispenser outwards into the inner door
► Ensure that all retention plates (A) are firmly attached again
► Attach electrical connections
► Screw on the outer door
Wear protective gloves; risk of cuts.
