Repair and Testing Instructions for T1 Page 43
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC
11.3.7 Shorted Positive Rectifier Diode

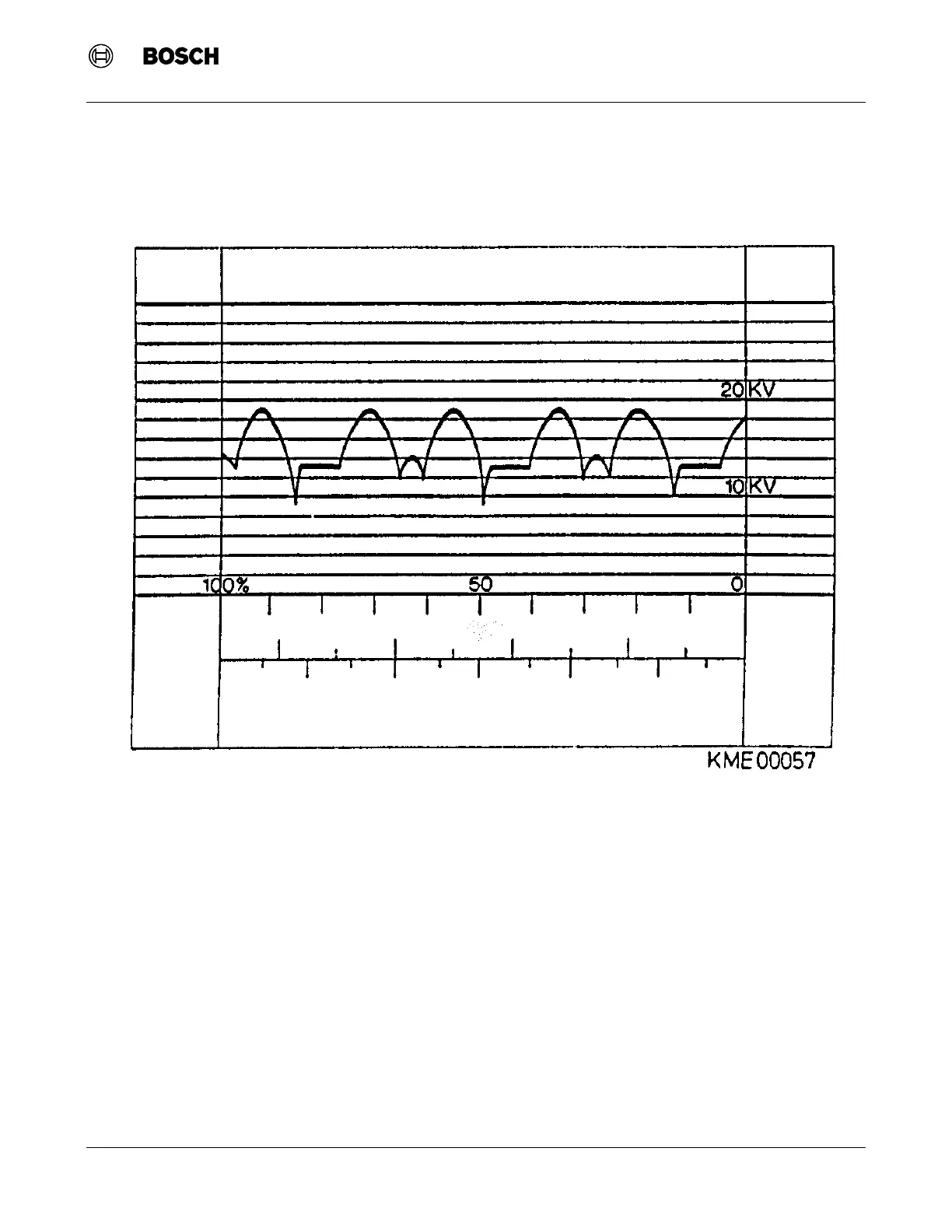

This pattern identifies a positive rectifier diode that is shorted. This defect requires replacement of the rectifier
assembly.
Figure 45 Shorted Positive Rectifier Diode
