Repair and Testing Instructions for T1 Page 9
Alternator 0120 689 552 Edition 001
All rights rest with Robert Bosch Corp, including patent rights. All rights of use of reproduction and publication rest with R. B. Corp.
UA/ASV 04.12.98 T1ALTFinal.DOC

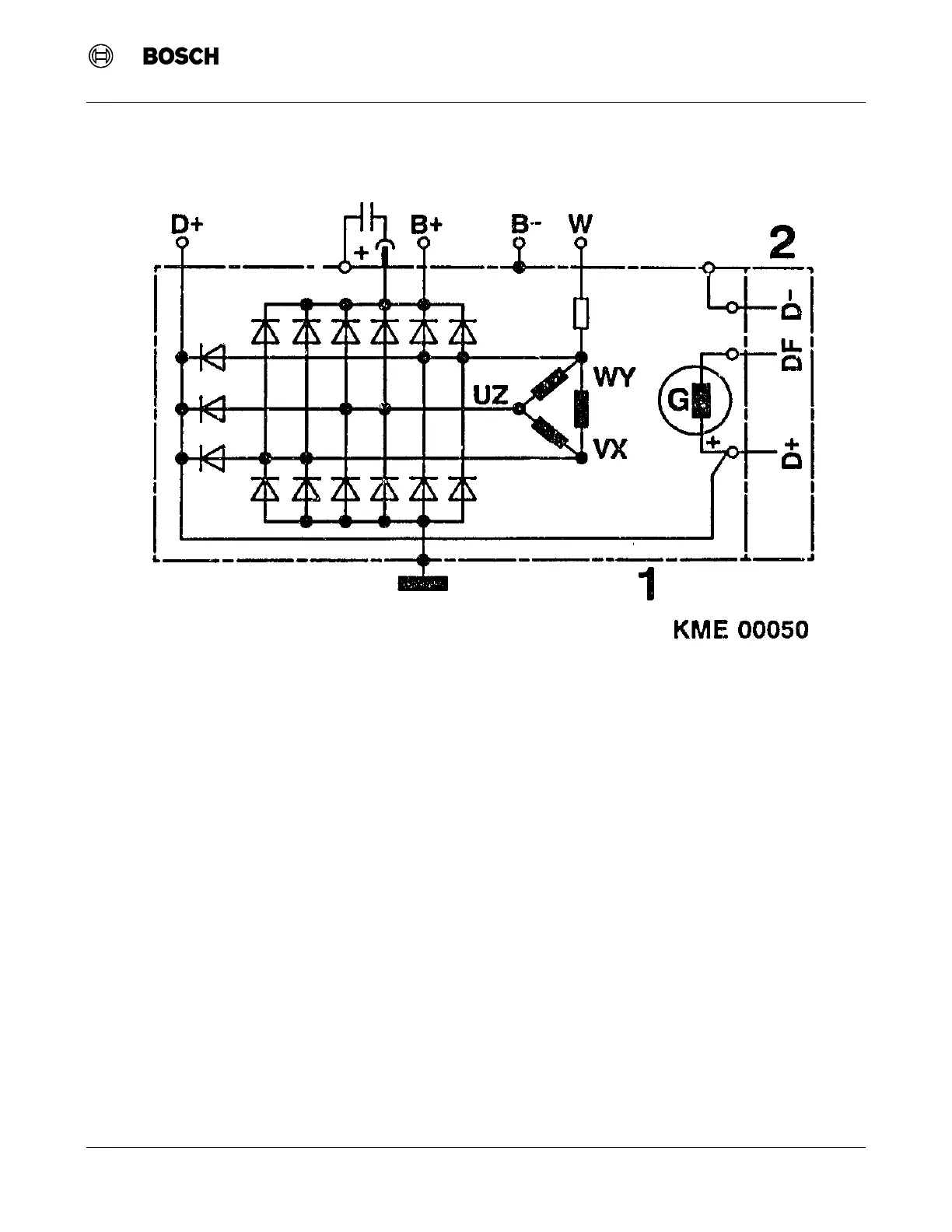

4 Alternator Schematic
Figure 3 Alternator/Voltage Regulator Schematic
1 Alternator
B+ Battery Positive
B- Battery Negative
D+ Dynamo + (Warning Lamp Output)
W Tachometer Output
2 Voltage Regulator
D+ Dynamo + (Alternator Output)
DF Dynamo Field
D- Dynamo -
