24 en | Installing the Monitor Bosch HD LCD Monitors
F.01U.272.027 | 1.0 | 2012.08 User's Manual Bosch Security Systems, Inc.

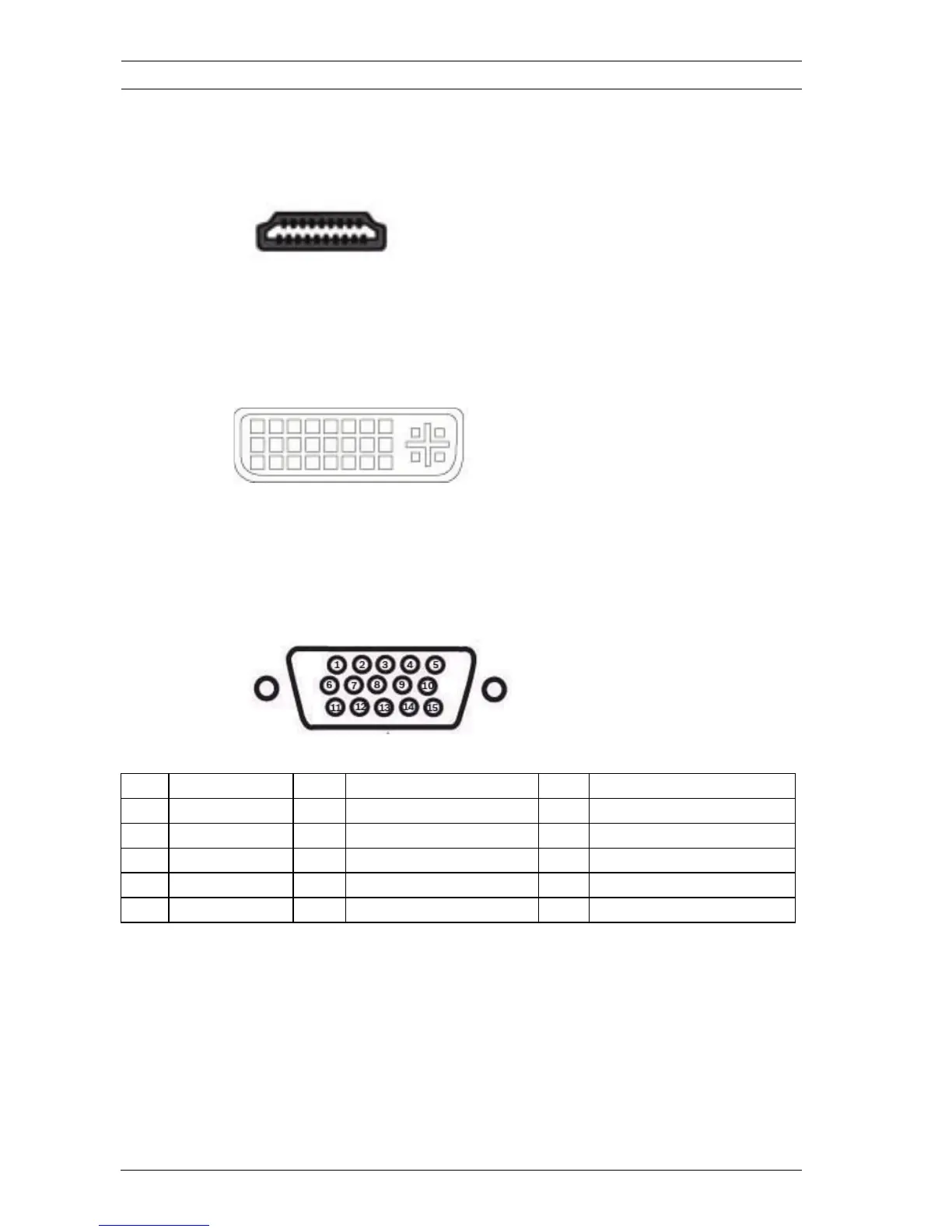

5.5.1 HDMI Connection
The monitor can be connected to the HDMI (High Definition
Multimedia Input) by connecting a HDMI cable (not supplied).
Figure 5.1 HDMI Input
5.5.2 DVI Connection
The monitor can be connected by using the supplied DVI-D
cable and connecting it to the digital DVI-D signal.
Figure 5.2 DVI Input
5.5.3 VGA Connection
You can connect PC signal to the monitor using the VGA
connector on the rear panel and a VGA cable (D-SUB to D-SUB).
Figure 5.3 VGA Input
Pin Description Pin Description Pin Description
1 Red Video 6 Red Ground 11 Ground
2 Green Video 7 Green Ground 12 SDA (for DDC)
3 Blue Video 8 Blue Ground 13 H-Sync or H+V Sync
4Ground 9 N/A 14V-Sync
5 Ground 10 Signal Cable Detect 15 SCL (for DDC)
