Uni Condens 8000 F – 6720867056 (2016/10)

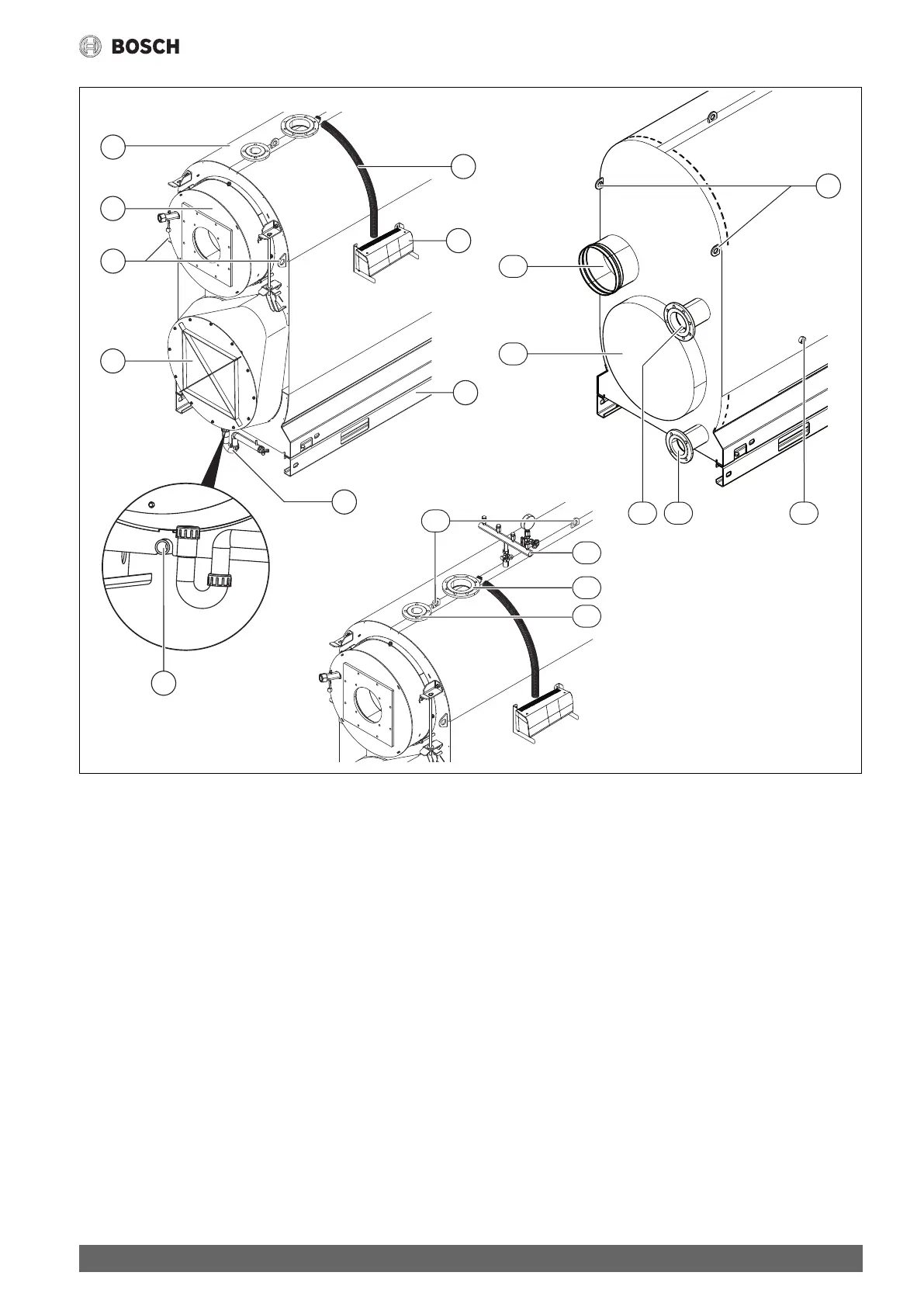

Fig. 1 Boiler overview
[1] Boiler shell
[2] Burner door
[3] Locking lug to secure the load during transportation
(not a lifting eye)
[4] Flue gas collector
[5] Condensate, siphon
[6] Drain
[7] Base frame rail
[8] Control unit (accessory)
[9] Cable conduit
[10] Flue gas connection
[11] Inspection aperture of condensation heating surface
[12] Port Return 1 (RK1) low temperature return (main return)
[13] Return connection 2 (RK2), high temperature return
[14] Inspection opening on the water side (both sides)
[15] Flow safety line
[16] Heating flow
[17] Boiler safety assembly (accessories)
[18] Lifting points
0010014756-001
5
6
16
17
13
1412
11
10
3
4
2
1
3
7
8
9
18
15
