Transport
Uni Condens 8000 F – 6720867056 (2016/10)
12
3.1.3 Moving the boiler with 2 pallet trucks
DANGER:
Danger to life through falling load.
▶ Distribute the boiler weight evenly across the pallet truck when lifting
and moving the boiler.
▶ Observe the weight of the boiler and the maximum load capacity of
the means of transport.
▶ When transporting, secure the boiler to prevent it falling.
▶ Push 2 pallet trucks under the base frame.
▶ Lift the boiler evenly with the pallet trucks.

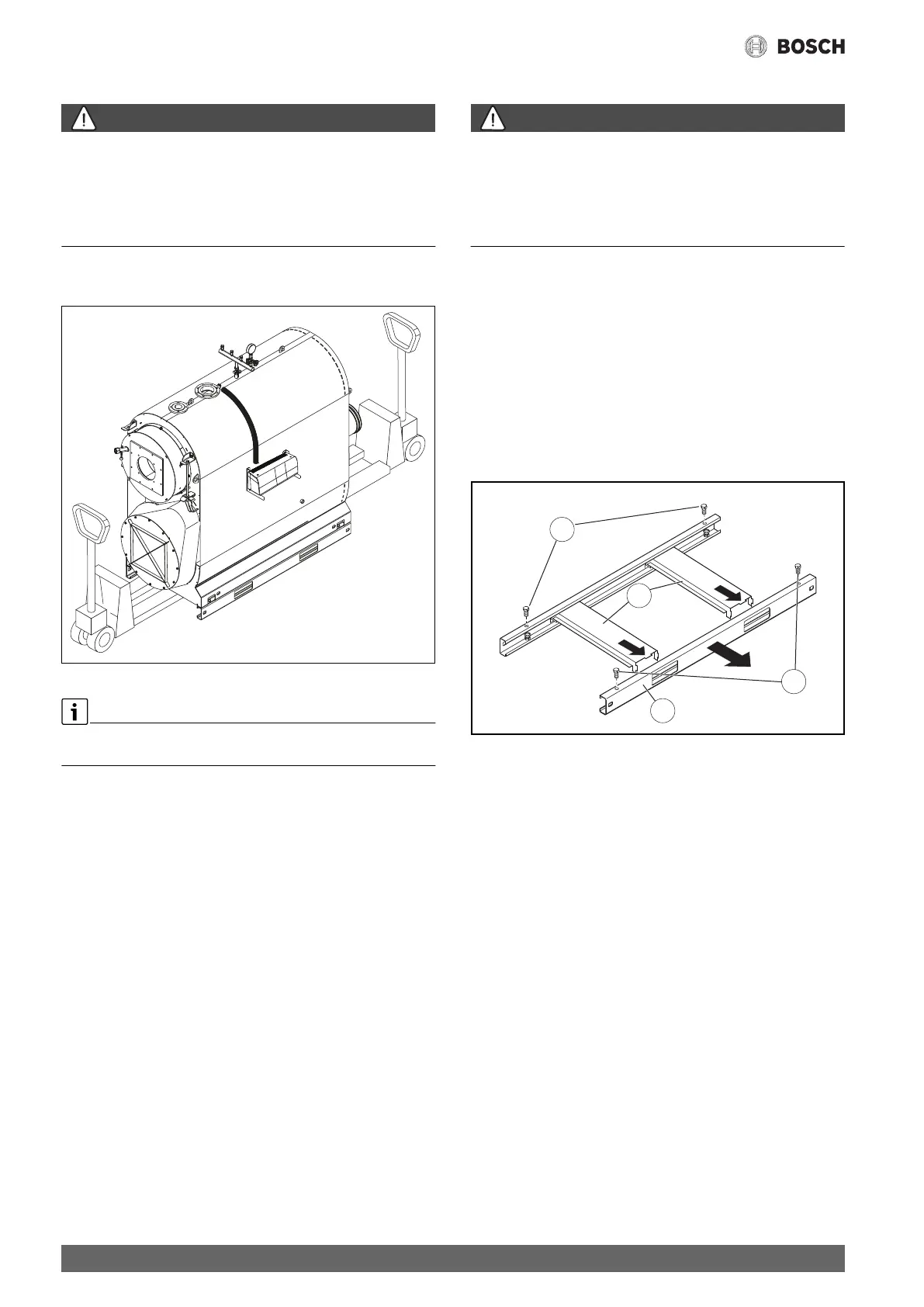

Fig. 6 Moving the boiler with 2 pallet trucks
Note the position of the drain connector and condensate pipe
( fig. 1, [5], page 7).
3.1.4 Moving the boiler with heavy duty rollers
DANGER:
Danger to life through falling load.
▶ Distribute the boiler weight evenly across the heavy duty rollers when
lifting and moving the boiler.
▶ Observe the weight of the boiler and the maximum shipping weight of
the means of transport.
▶ When transporting, secure the boiler to prevent it falling.
▶ Position a heavy duty roller at each corner.
3.1.5 Removing the base frame
The transport height can be reduced by removing the base frame rails
( fig. 7, [1], page 12) with the cross beams.
▶ Lift the complete boiler with a pallet truck ( chapter 3.1.3,
page 12) or from one side with a trolley jack ( fig. 4, [5], page 11).
▶ Undo screws ( fig. 7, [3], page 12).
▶ Remove a base frame rail [1].
▶ Remove 2 cross beams [2].
▶ Remove base frame rail [1] on the other side.
▶ Drain the boiler.
Fig. 7 Removing the base frame
[1] Base frame rails
[2] Cross beam
[3] screw
▶ Install the base frame at the installation location by following this
process in reverse.
0010014763-001
0010014752-001
3
3
2
1
