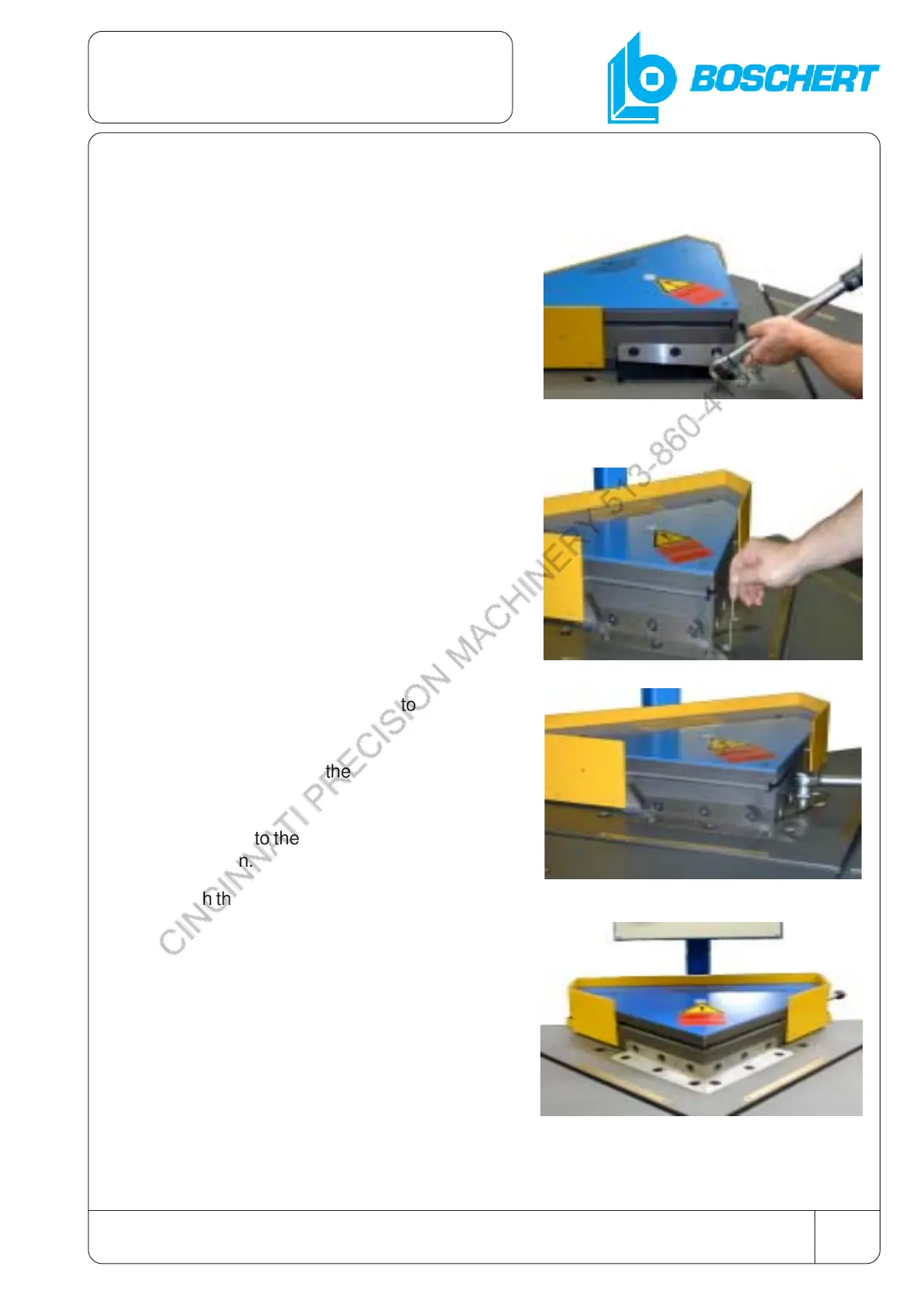

Installing new blades
7. Tighten screws on the top blades to
85 ft. lb f.( max. 122 Nm). Use a torque-
wrench.
15. Tighten screws on lower blades to
85 ft. lbs (122Nm).
16. Turn the main switch to the ON
position.
17. Move the ram to the top by pressing
the UP button.
18. Reattach the plexiguard.
8. Turn the main switch to the ON
position.
9. Set the function PROG to set-up stroke.
10. Move the ram by pressing the DOWN
button to lower position.
11. Turn the main switch to the OFF
position.
12. Insert the lower blades.
13. Use feeler gauge for correct
clearance and fix the blades by using
the adjustments screws (see picture).
14. Insert the screws.
