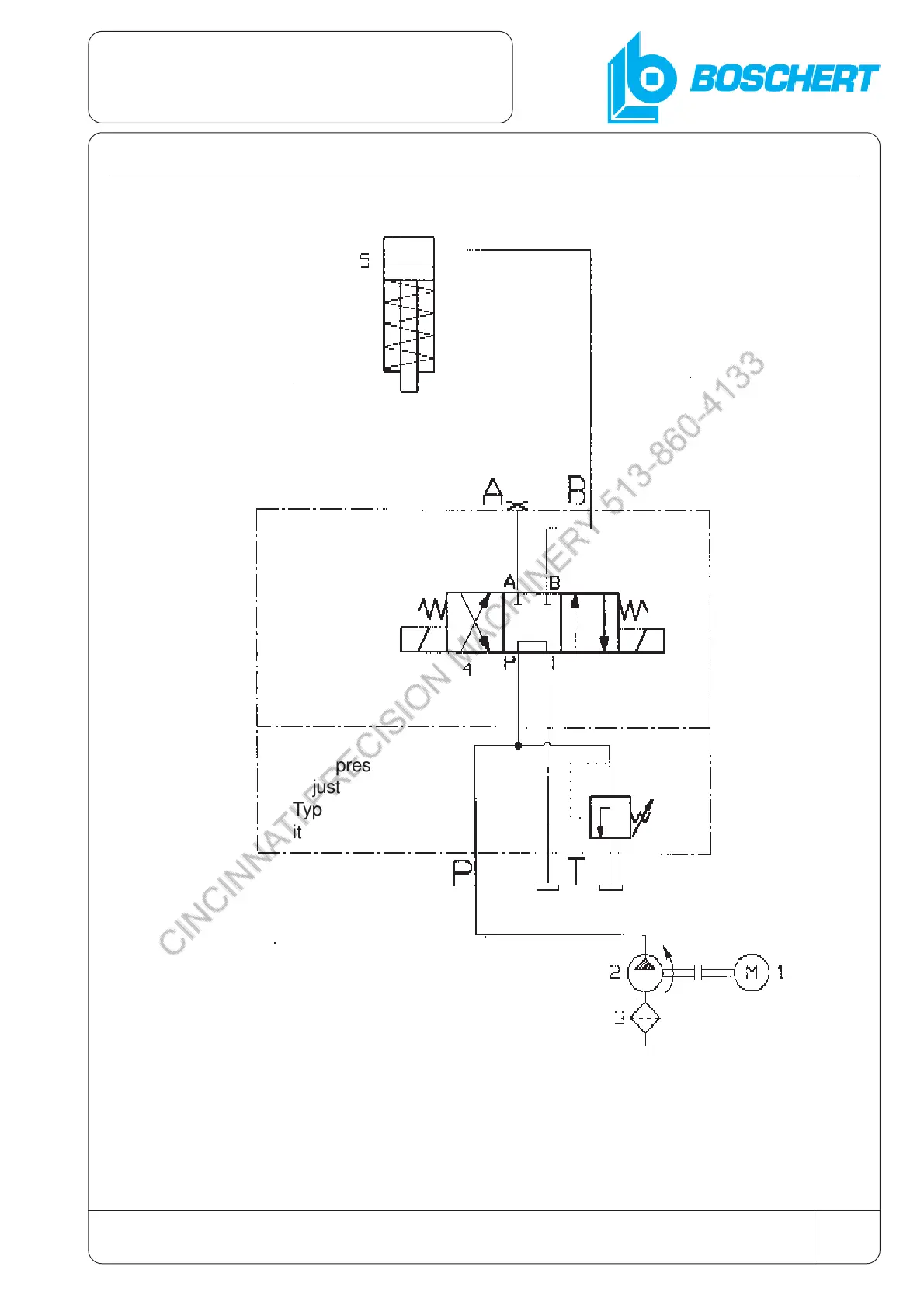

7 Hydraulic plan Boschert Lite, Eagle and Silver Eagle
Hydraulic
directional control valve
DKI-1714/220V
item 5686
max. pressure
adjustment valve
Type DBV-HMO/200
item 1575
1 = rotary current motor 4 kW 1500 rev/min
2 = gear pump 17 l/min
3 = suction filter 23 l/min
4 = 5/3 directional control valve
5 = hydraulic cylinder + lower guiding cylinder
