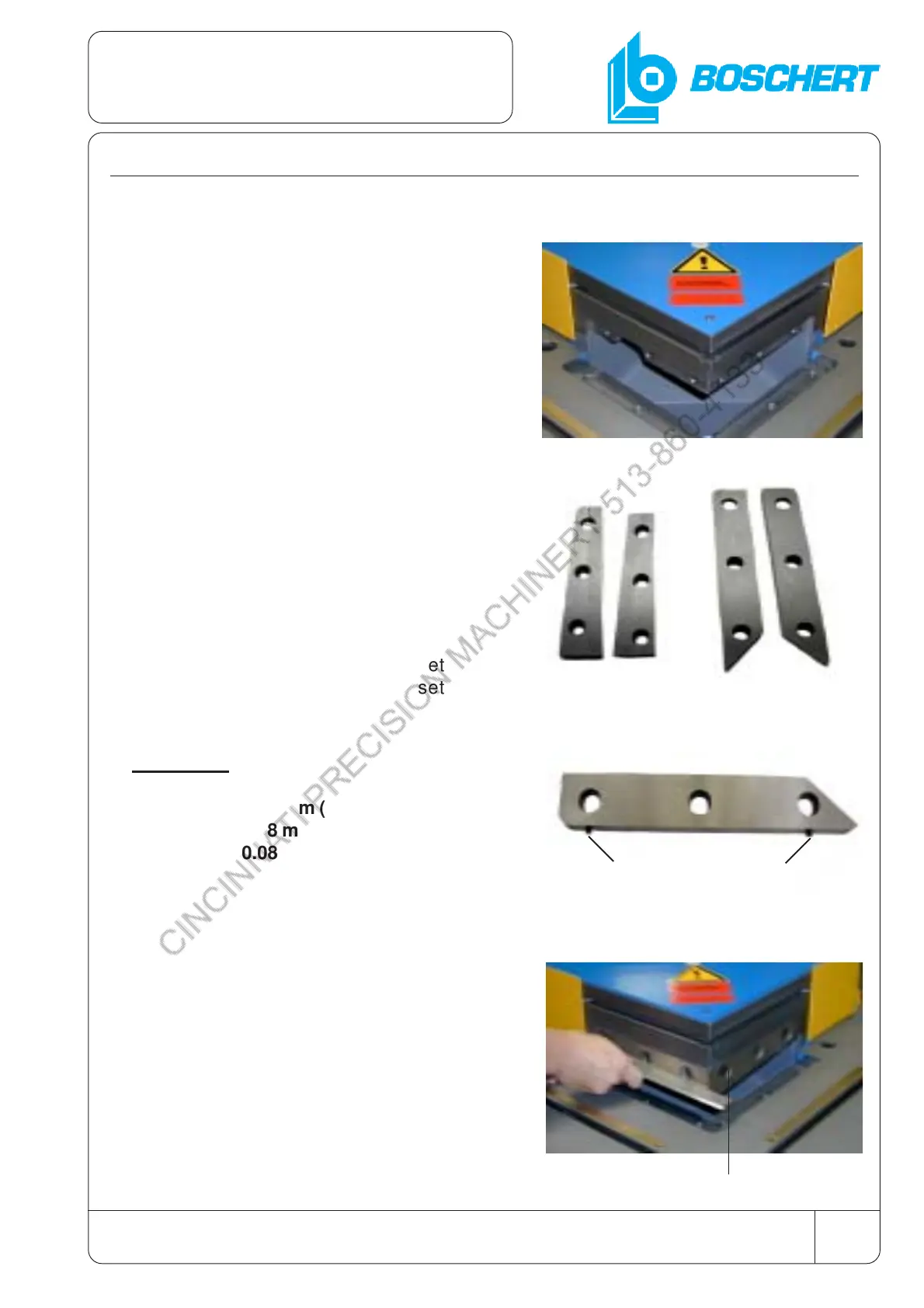

Installing new blades
5.1 Blade change and adjustment of blade clearence
1. Turn main switch to OFF position.
2. Remove plexiguard.
3. Open screws and take out the old
blades.
INFORMATION:
- Set blades = 1 right blade +1 left
blade
- Right blade is longer than left
- When ordering machine blades
please note machine model.
Clearance:
Lite = 0.05 mm (0.002 inch)
Eagle = 0.08 mm (0.003 inch)
Silver Eagle= 0.08 mm (0.003 inch)
4. Insert right top blade, tighten screws
slightly.
5. Insert left top blade and move to the
right blade, tighten screws slightly.
6. Open the screws on the right blade
again and line up the two blades with
a ruler.
On that position the screws are only 4/5
-On the lower blade are two socket
head screws (M6 x 10 mm) to set
the correct clearance.
Adjustment screws
