Setting Up
Placement guidelines
Place the system outside of and away from metal cabinets, other audio/video components and direct heat sources.
Acoustimass
®
Module • Stand the module on its rubber feet along a wall within 5 ft. (1.5 m) of the corner. To increase bass, move the module closer
to a corner.
• Choose a stable and level surface. Vibration can cause the module to move, particularly on smooth surfaces like marble,
glass or highly polished wood.
• Leave at least 2 in. (50 mm) of space between the opening and the wall.
• Place at least 2 ft. (0.6 m) from any TV to avoid magnetic interference with the TV image. Move it farther away if you still
notice interference.
Speakers • Place the speakers 3 - 15 ft. (1- 4.6 m) apart.
• Place the speakers at least 6 in. (.15 mm) away from any CRT (picture tube) TV.

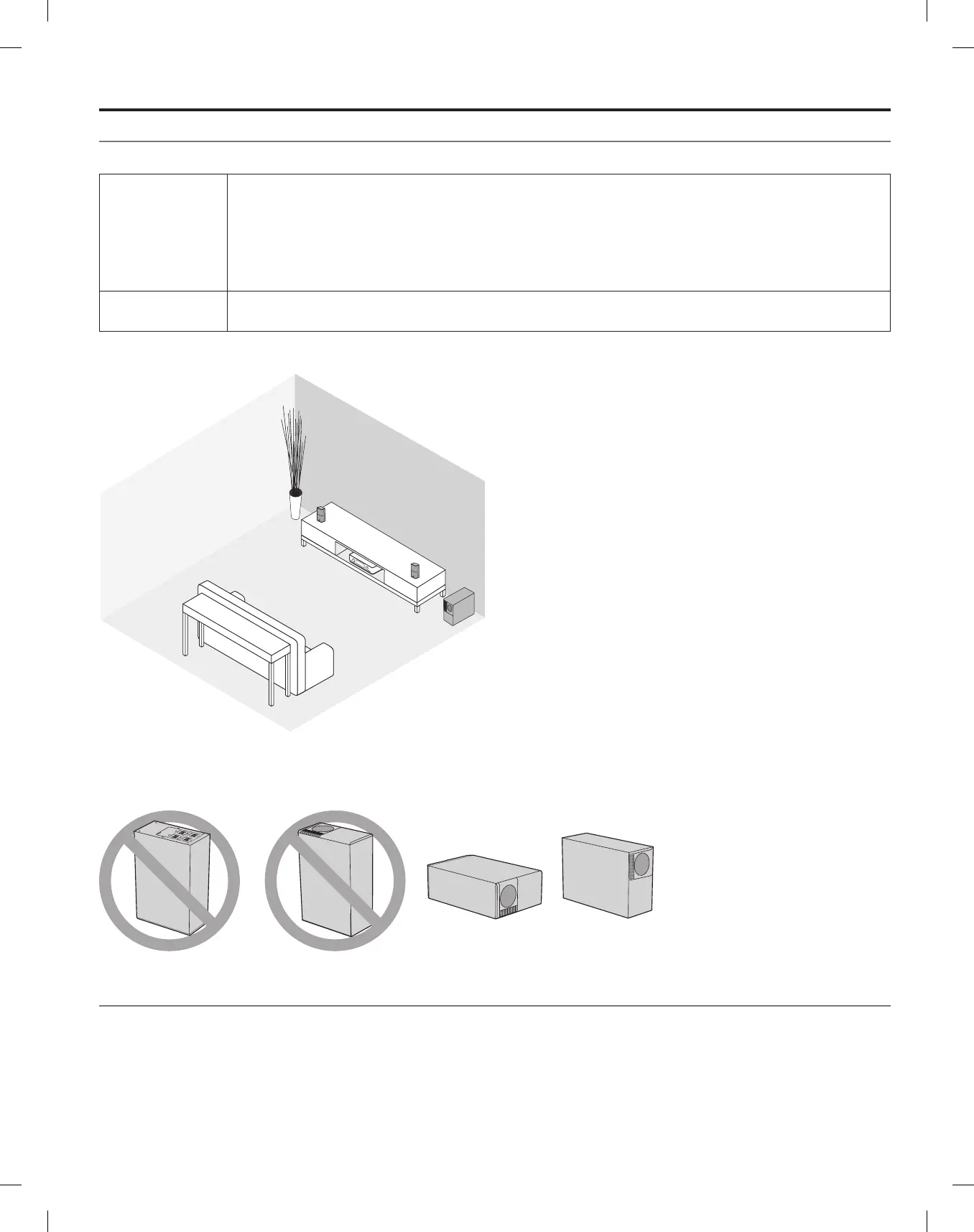

Sample system placement
Note: Attach the rubber feet to the Acoustimass module to protect your floor.
CAUTION: Do not place the Acoustimass module on its front or back panel when in use.
