Connecting the speakers to the Acoustimass module
Use the two provided speaker cables to connect your speakers to the Acoustimass module.
CAUTION: Turn off and unplug all components before making the connections.
1. Insert the left speaker cable’s L plug into the left speaker, with the label facing down.
2. Insert the right speaker cable’s R plug into the right speaker, with the label facing down.
CAUTION: Do not connect your amplifier or receiver directly to the speakers. Connect the speakers to the Acoustimass module to avoid
damaging your system.

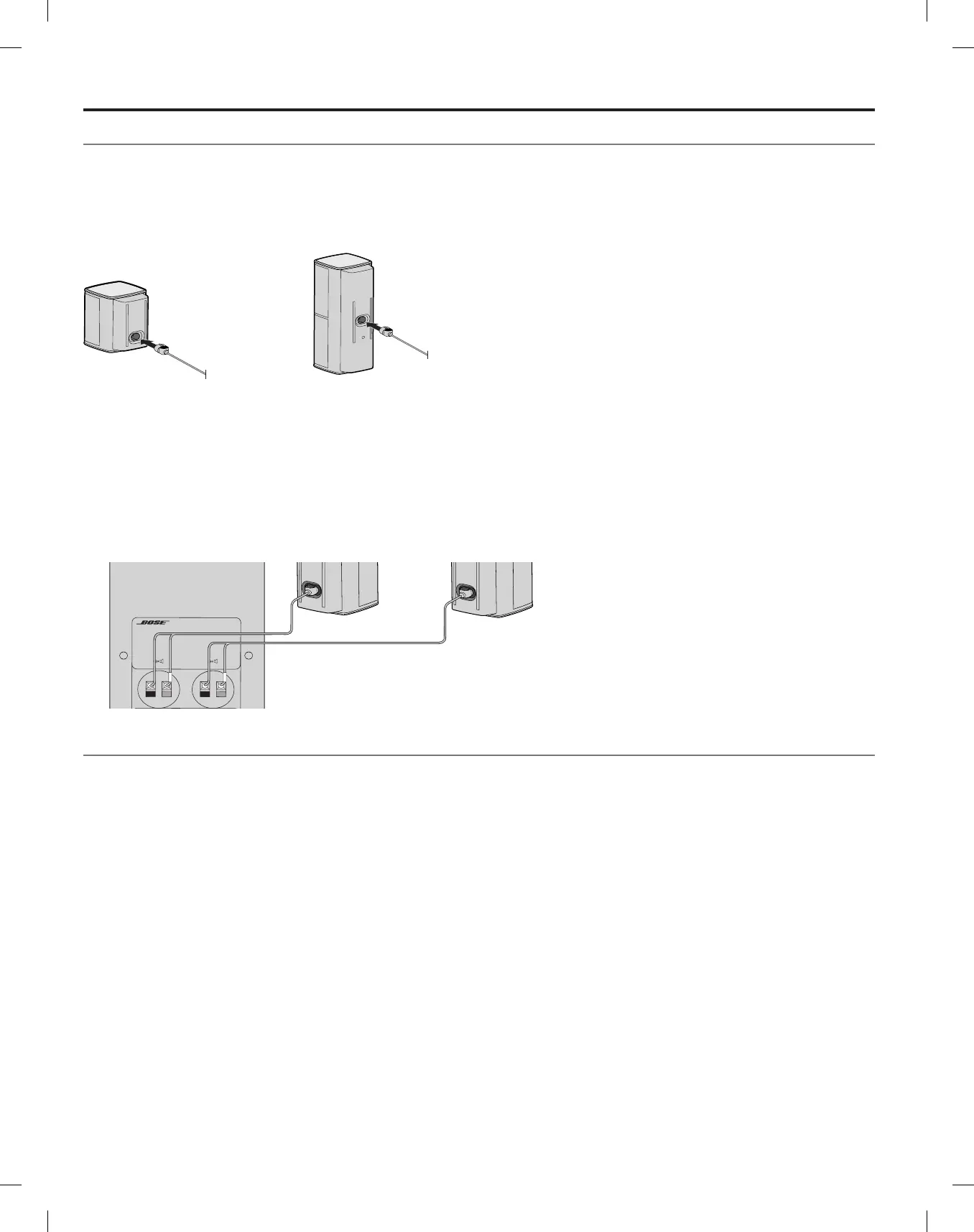

3. Connect the other end of the left speaker cable to the L (left) OUTPUTS TO CUBE SPEAKERS terminal on the connector panel of
the Acoustimass module.
A. Insert the marked wire into the positive (+) terminal (with the red marking).
B. Insert the unmarked wire into the negative (–) terminal (with the black marking).
4. Repeat step 3 for the right speaker cable, connecting its wires to the R (right) terminal.
– R +
– L +
OUTPUTS
TO C
U
B
E SPEAKERS
– R
+
– L
+
INPUTS
F
R
OM
AMP OR RECEIVE
R
Mounting the speakers
You can place system speakers on wall brackets, table stands or floor stands. You can also use additional speaker wire and a
Bose connector to increase the distance between the speakers and the Acoustimass module. To purchase these accessories, contact
your local Bose dealer or visit www.Bose.com
CAUTION: Do not use any other hardware to mount the speakers.
Setting Up
R L
Acoustimass 3 system
Acoustimass 5 system
