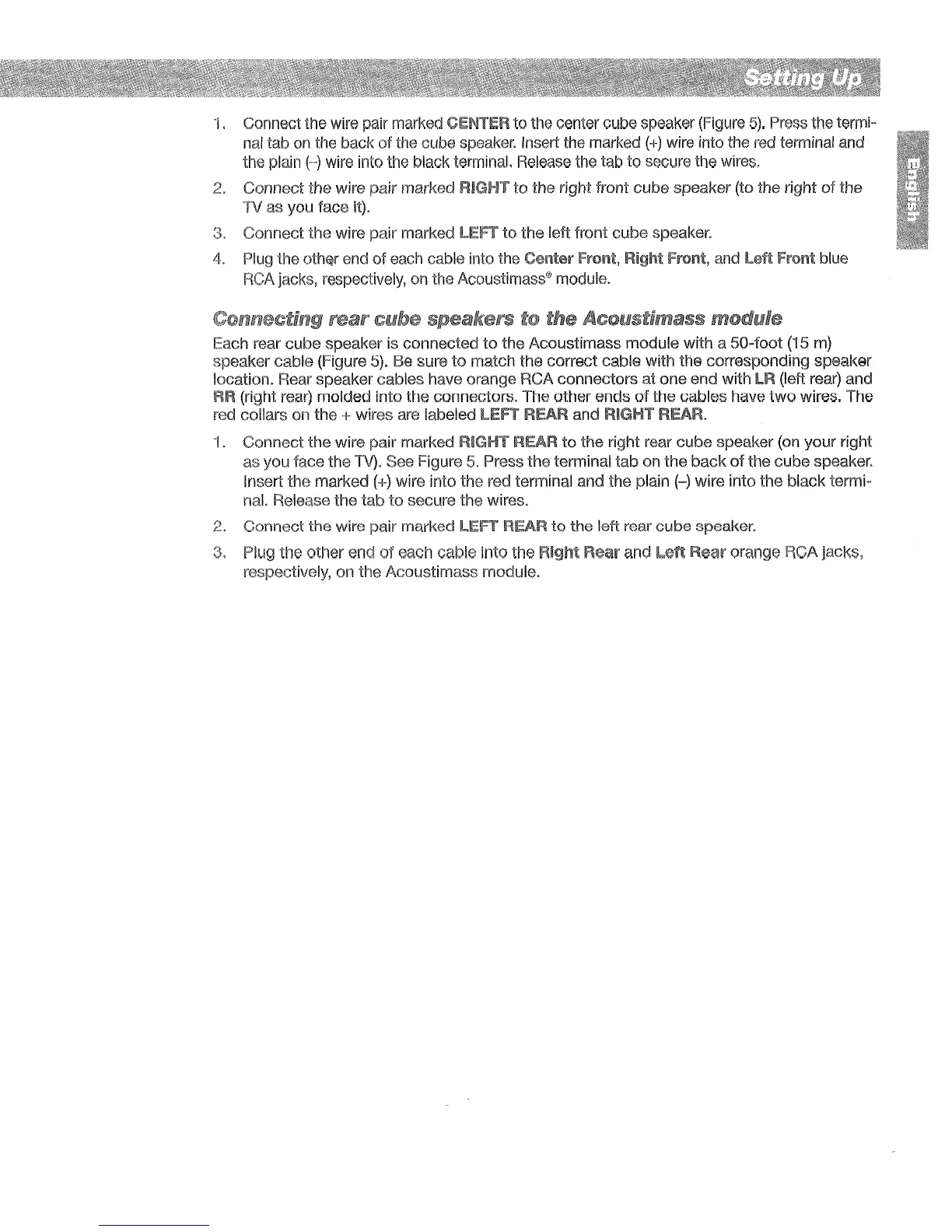

1, Connect the wire pair marked CENTER to the center cube speaker
(Figure
5).
Press
the termi-
nal
tab
on
the back of the cube
speaker.
Insert the marked
(+)
wire into tile
red
terminal
and
the plain Hwire into the black terminal.
Release
the tab to secure the wires,
2.
Connect the wire pair marked RIGHT to the right front cube speaker (to the right of the
TV
as you face it).
~3,
Connect the wire pair marked
lEfT
to
the left front cube speaker.
4.
Plug
tile
oth~r
end
of each cable into the Center
fmnt,
Right
front,
and
left
fmnt
blue
RCA
jacks, respectively,
on
the
Acoustimass®
module.
Connec'f/n,g
rear
cube
speak:ers
to
the
Acoustimass
module
Each rear cube speaker is connected to the Acoustimass module with a 50-foot
(15
m)
speaker cable (Figure
5).
Be sure
to
match the correct cable with the corresponding speaker
location. Rear speaker cables have orange RCA connectors at one end with
lR
(left
rear)
and
RR
(right
rear)
molded into the connectors. The other ends
of
the cables have
two
wires. The
red
collars on the + wires are labeled
lEfT
REAR and RIGHT REAR.
'I. Connect the wire pair marked RIGHT REAR
to
the right rear cube speaker (on your right
as you face the
TV).
See Figure
5.
Press the terminal tab on the back
of
the cube speaker.
Insert the marked
(+)
wire into the red terminal and the plain Hwire into the black termi-
nal. Release the tab
to
secure the wires.
2.
Connect the wire pair marked
lEFT
REAR
to
the left rear cube speaker.
3. Plug the other end of each cable into the
Right
Rear and
left
Reat"
orange RCA jacks,
respectively, on the Acoustimass module.
[}
