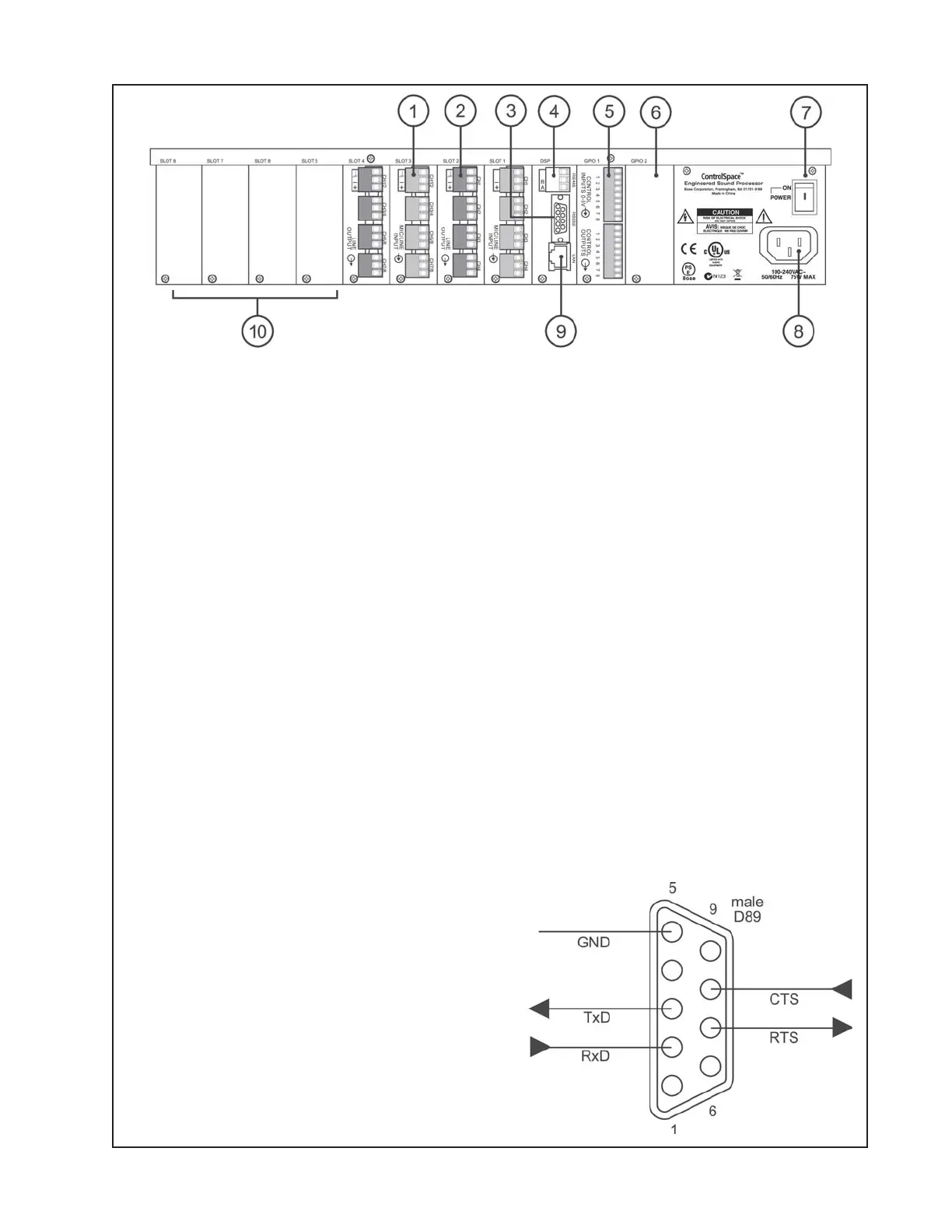

Rear Panel Controls and Connections
1. Mic/Line Inputs
Four balanced mic/line inputs (audio input
connectors are green) in slots 1 and 3.
These are inputs S1-1 through S1-4 and S3-
1 through S3-4 in the ControlSpaceTM
Designer software
2. Line Outputs
Four balanced line outputs (audio output
connectors are orange) in slots 2 and 4.
These are outputs S2-1 through S2-4 and
S4-1 through S4-4 in the Designer software
3. RS-232C Connector
DB-9 male (DTE)
4. RS-485 Connector
Connect ControlSpace CC-16 controllers
5. GPIO Card
Eight general purpose control inputs
Eight general purpose control outputs
6. GPIO slot 2
For optional second GPIO card
7. Power Switch
ON/OFF AC power
8. AC Cord Inlet
Connect the AC cord appropriate for your
area
9. Ethernet LAN Connector
Connect to your PC with enclosed crossover
cable. Or, connect directly to a hub or router
with a straight-through cable
10. Audio Slots 5 - 8
For optional audio cards
RS-232C Serial Port
The ESP-88 features a serial port that can
be used to send control signals to other
equipment (such as a video switcher). The
serial port is a DB9 male. The pin-out is
shown at right.
