Bose F1 812 Service Manual

7
Product Description

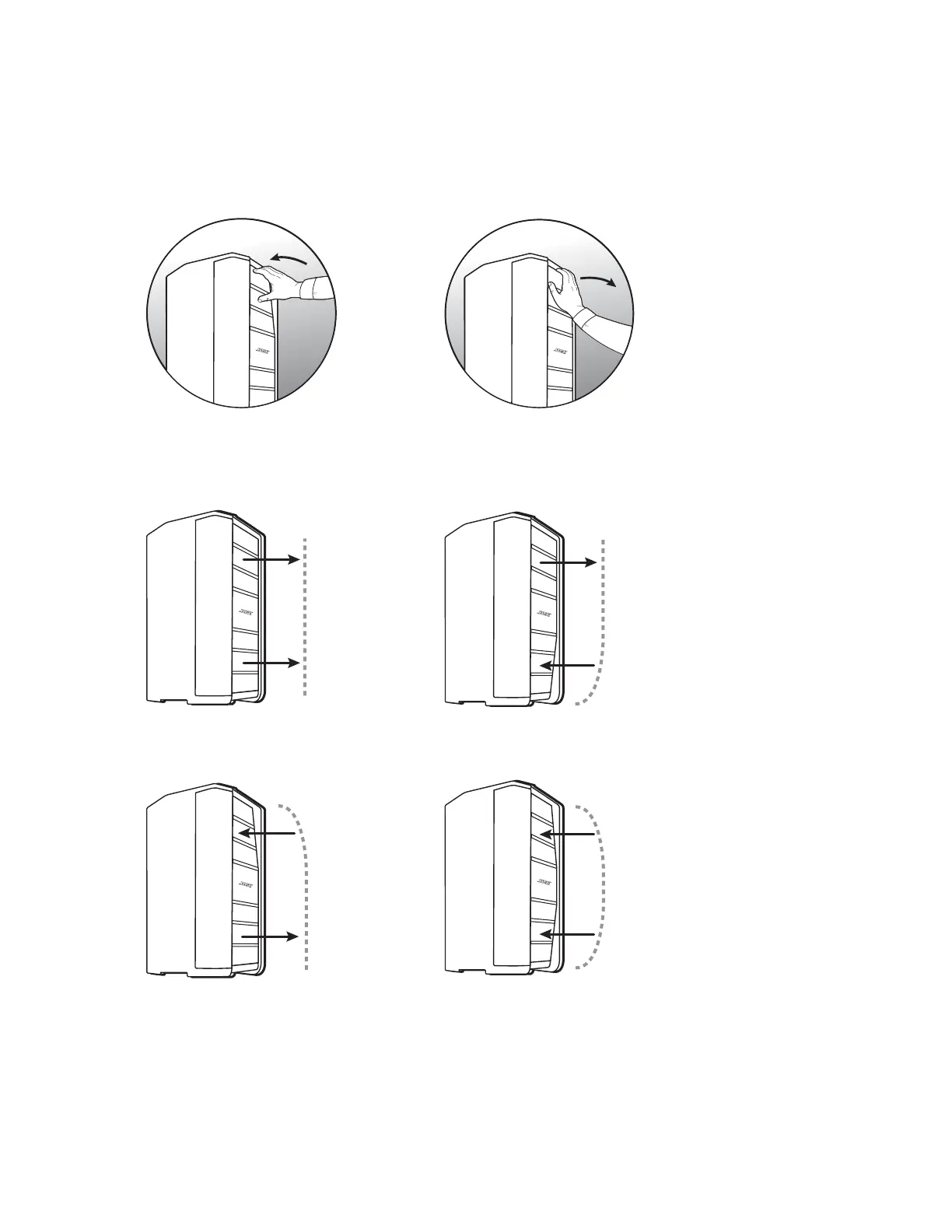

Using the Flexible Array
You can change the coverage pattern by changing the position of the top and bottom array.
Moving the array
Pushing an array in Pulling an array out
Four coverage patterns
Straight array
Pull top and bottom array out
J array
Pull top array out, push bottom array in.
Reverse J array
Push top array in, pull bottom array out.
C array
Push top and bottom array in.

Bose F1 812 Specifications

General

Type	Powered Speaker
Power Rating	1000W
Maximum SPL	132 dB
Dimensions	664 x 334 x 372 mm
Weight	20.2 kg
LF Driver Size	12"
Enclosure Material	Composite
Inputs	2 x XLR-1/4" combo
Outputs	XLR
Mounting Options	Pole mount
HF Driver Size	8 x 2.25" high-output mid-high drivers
