Bose FreeSpace DXA 2120 Owner's Guide

• For Input Vol Lvl
• For Input Bass Adj and Input Treb Adj
Adjust the value to +/-6 dB in increments of .5 dB.
• For AGCEnable
Choose N (no) or Y (yes).
B

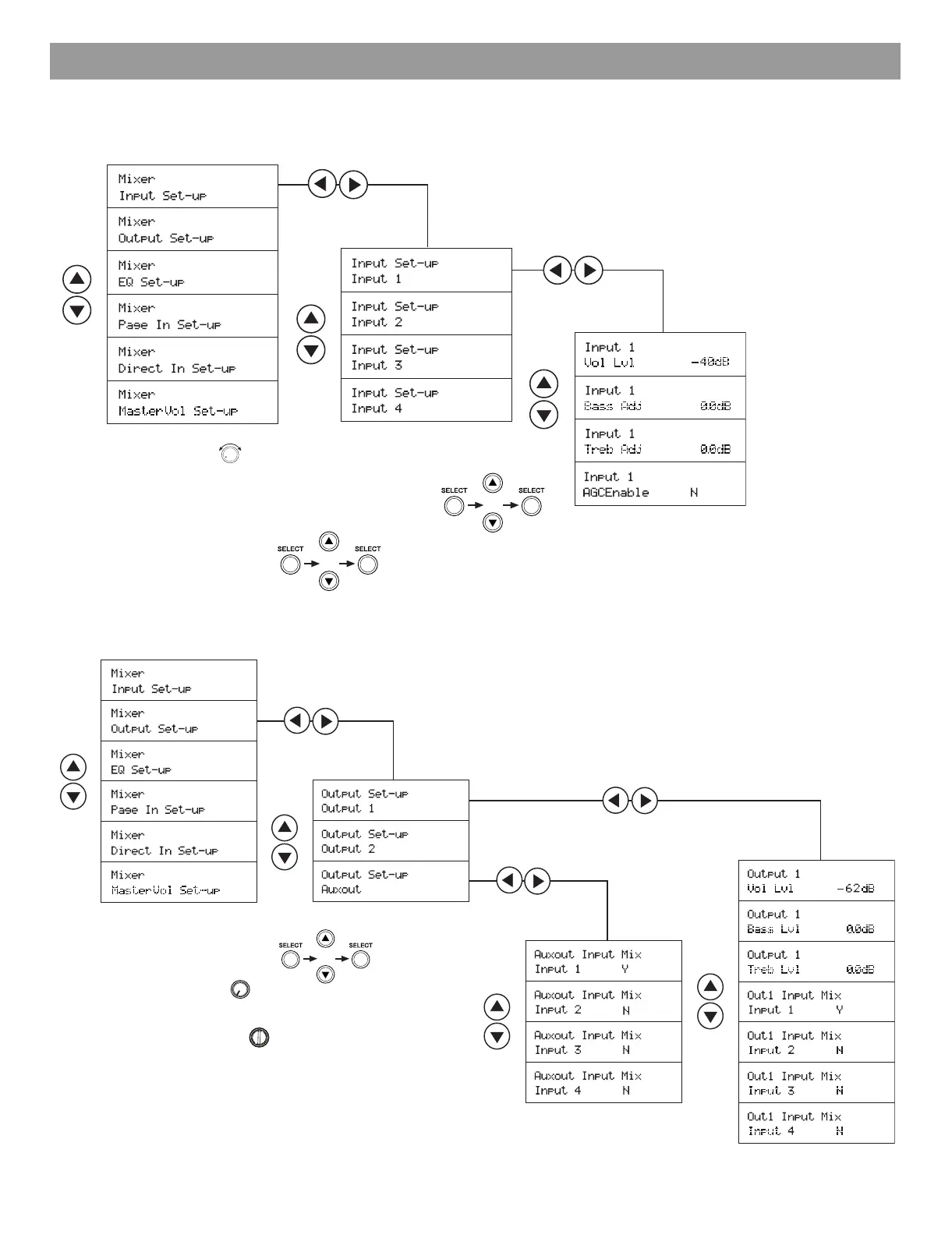

Mixer Input Set-up
Select each Input that has a source connected (1, 2, 3, & 4).
C
Mixer Output Set-up
• For Input Mix
Choose N (no) or Y (yes).
• For Output Vol Lvl
• For Output Bass Lvl
and Input Treb Lvl
Adjust the value to +/-6 dB in increments of .5 dB.
Select each Output to be used (1, 2, or Auxout).
Note: AGC defaults to N.
AGC is recommended for use
with low-level sources (i.e.
microphone with low sensitivity).
18 of 36
5.0 System Setup
5.0 Setup.fm Page 18 Monday, February 12, 2007 8:54 AM
