12 of 36
4.0 Hardware Installation

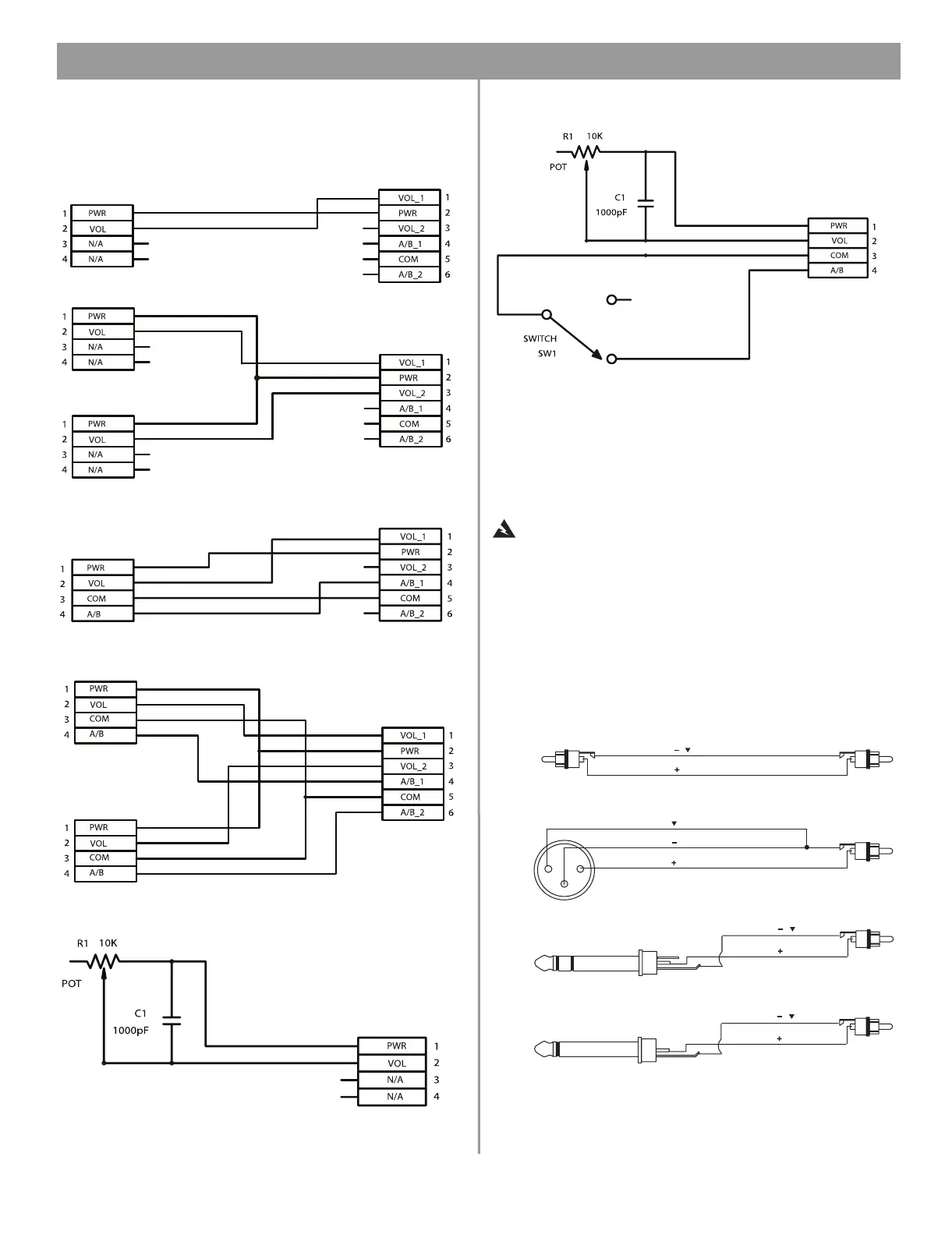

4.6.1.5 User interface wiring
Two volume control with A/B select user interfaces
One volume control with A/B select user interface
Two volume control user interfaces
One volume control user interface
User interface connector
6-terminal input connector
mounts to REMOTE jack
on the chassis
4.6.1.6 Detailed schematics of user interfaces
Schematic for volume control user interface
Schematic for volume control
with A/B select user interface
4.7 System wiring
Input and Output wiring information and illustrations are provided
on pages that follow.
WARNING:
Be sure the mixer/amplifier is disconnected from
the AC (mains) power before making any connections.
4.7.1 LINE 1-4 source inputs
There are two sets of line input jacks for use with varied connec-
tor types.
4.7.1.1 RCA connections
Audio sources can be connected to the LINE INPUT 1-4 RCA
jacks using one of the following cable types:
XLR
RCA
T
S
T
S
T
S
12
3
2
3
T
S
1
Source Connector
LINE IN
T
S
S
Phone
Plug
(Unbalanced)
T
S
TS
T
S
Phone
Plug
(Balanced)
T R S
4.0 Install and Wiring.fm Page 12 Monday, February 12, 2007 8:52 AM
